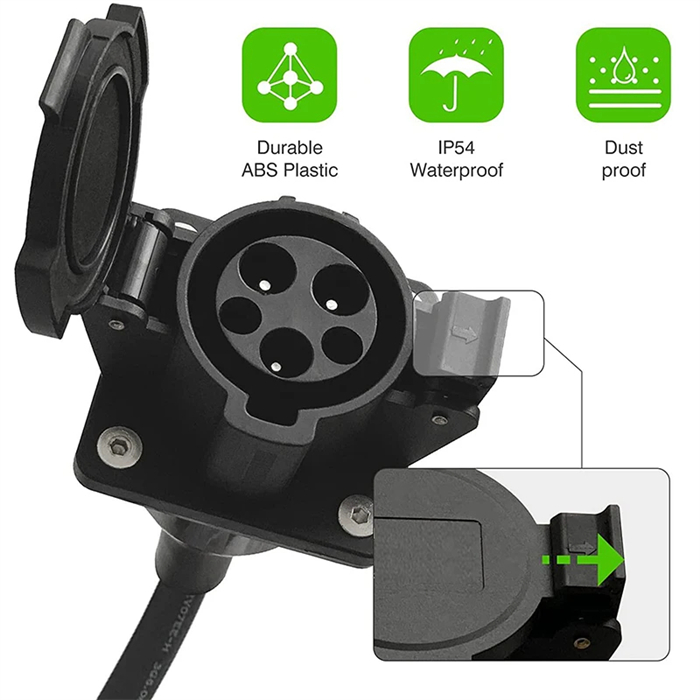

Senku 48A UL List J1772 Inlet Socket

Rated Current: 16A 32A 50A 80A
Rated Voltage: 240V AC
Certificate: CE / UL
IP Level: IP44
Product description: This 48A inlet socket meet the SAE J1772 standard, ensuring compatibility and reliability. Supports up to 48A and 240V, delivering fast and efficient charging for various EVs
Inquiry

Product introduction

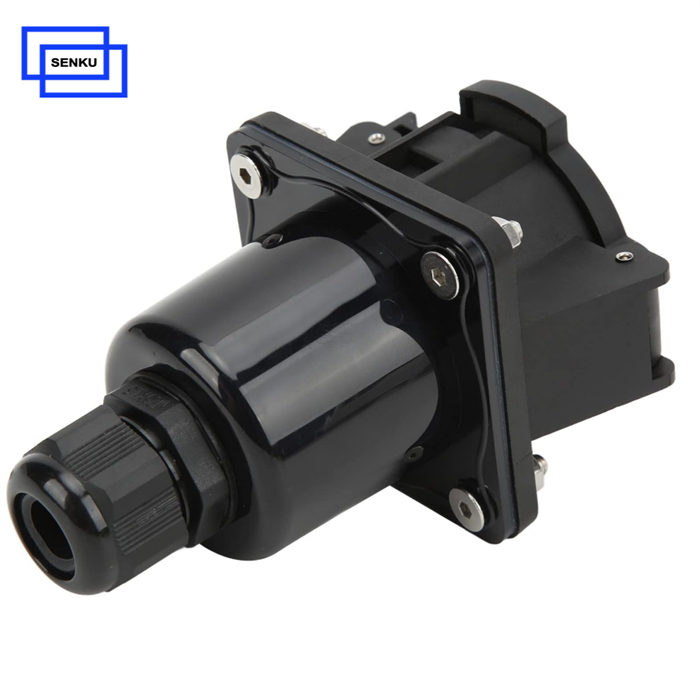

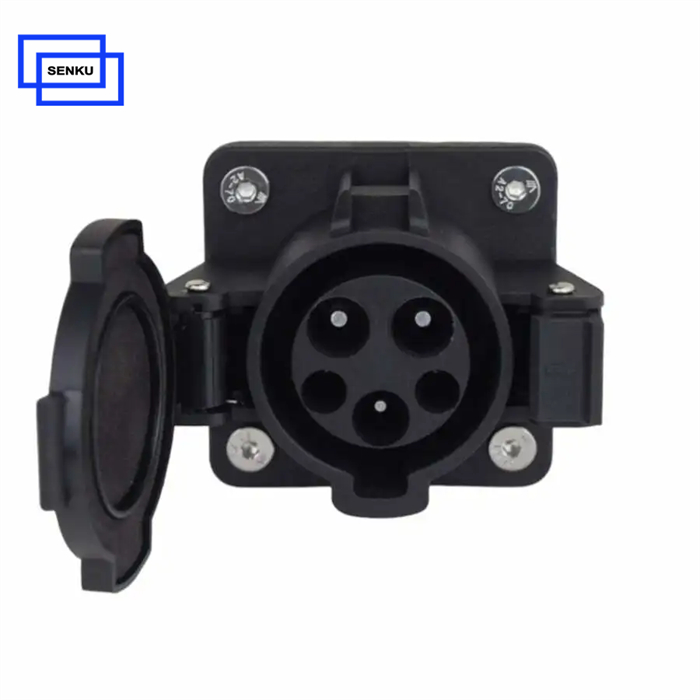

Senku 48A UL List J1772 Inlet Socket

Main Parameter
Electrical Specifications	Rated current: 16A 32A 40A 48A 50A 80A
Electrical Specifications	Operating voltage: 240V
Mechanical Specifications	Durability: Can withstand over 10,000 plug-in/pull-out cycles under no load
Material Composition	Casing: Thermoplastic, UL94 V-0 flame-retardant
Material Composition	Pins: Copper alloy with silver plating
Environmental Performance	Operating temperature: -30°C to +50°C
Application	Suitable for various Battery Electric Vehicles (BEV) and High-Performance Electric Vehicles (HPEV)
Cable Specifications	16A: 3 x 2.5mm² + 2 x 0.5mm² / 3 x 14AWG + 1 x 18AWG 32A: 3 x 6mm² + 2 x 0.5mm² / 3 x 10AWG + 1 x 18AWG 40A: 2 x 8AWG + 1 x 10AWG + 1 x 16AWG 48A: 2 x 8AWG + 1 x 10AWG + 1 x 16AWG 50A: 2 x 8AWG + 1 x 10AWG + 1 x 16AWG 80A: 2 x 5AWG + 1 x 6AWG + 2 x 18AWG

Why Choose the SENKU j1772 inlet socket?

Industry-Compliant: Meets the SAE J1772 standard, ensuring compatibility and reliability.

Durable and Safe: Built from flame-retardant, abrasion-resistant materials, with high insulation and withstand voltage for safe, long-term use.

Easy to Install and Use: Ergonomically designed for convenient handling and easy installation.

Optimized for Fast Charging: Supports up to 48A and 240V, delivering fast and efficient charging for various EVs.

Excellent Environmental Resistance: Ready for operation in extreme temperatures and tough conditions, making it ideal for both indoor and outdoor use.

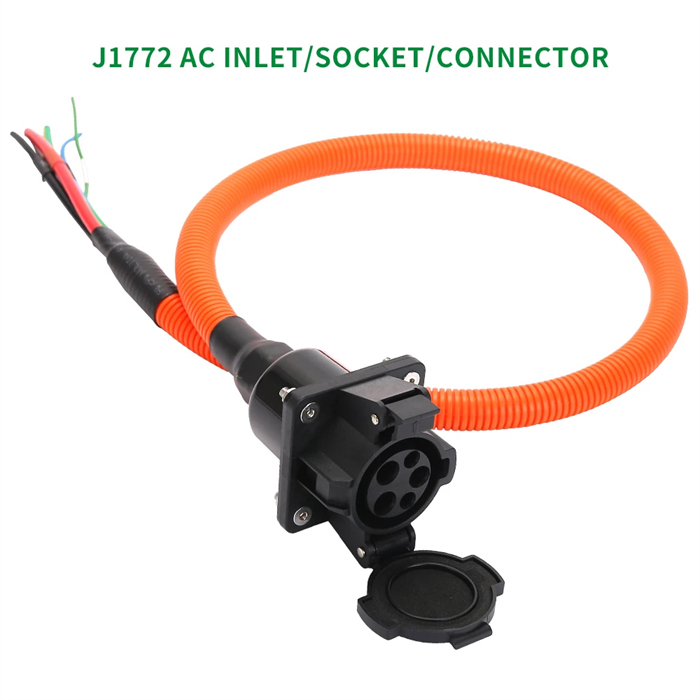

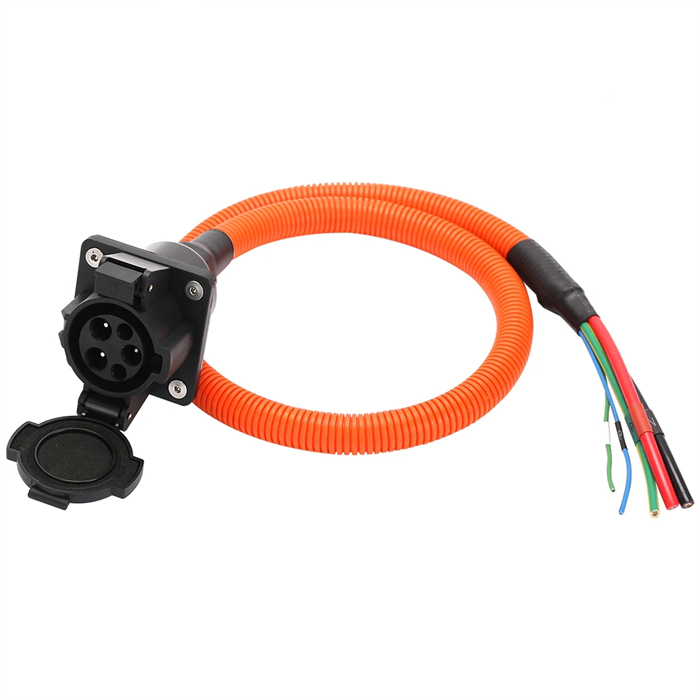

Senku 48A UL List J1772 Inlet Socket

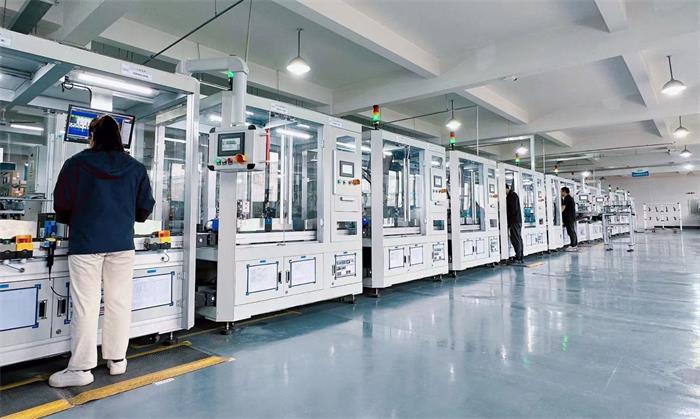

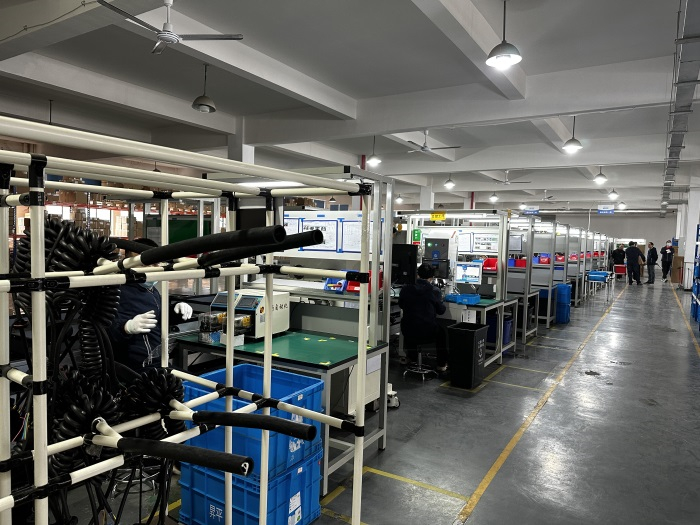

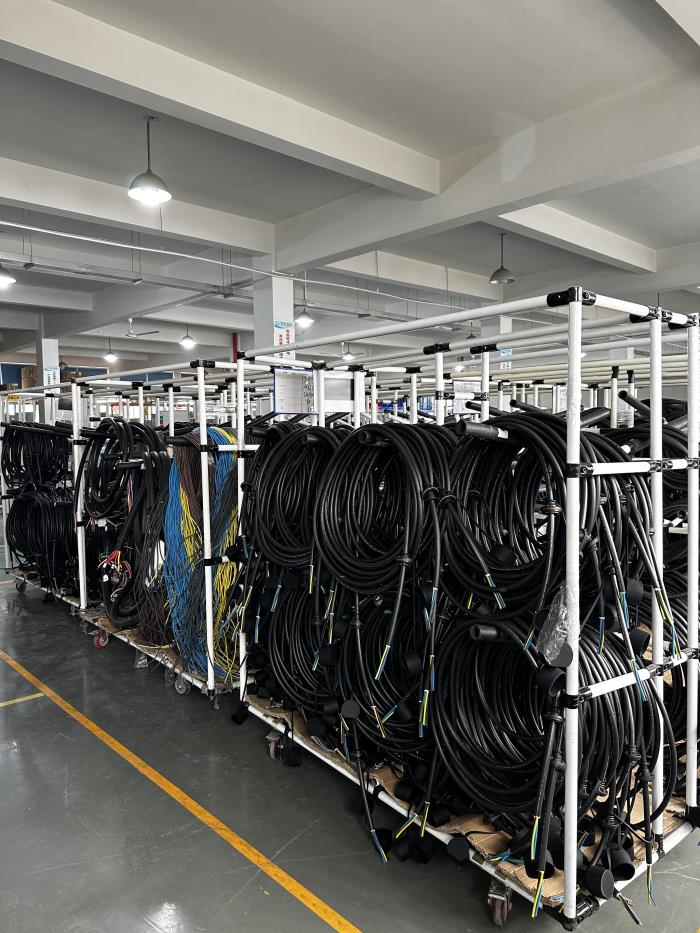

SENKU is a leader in the development and manufacturing of electric vehicle charging equipment, with a primary focus on producing EV charging connectors (including plugs, sockets, and adapters) as well as AC and DC charging stations and essential accessories. With years of research and engineering expertise, we have perfected the design and production of connectors that deliver both performance and durability.

j1772 inlet socket manufacturer
