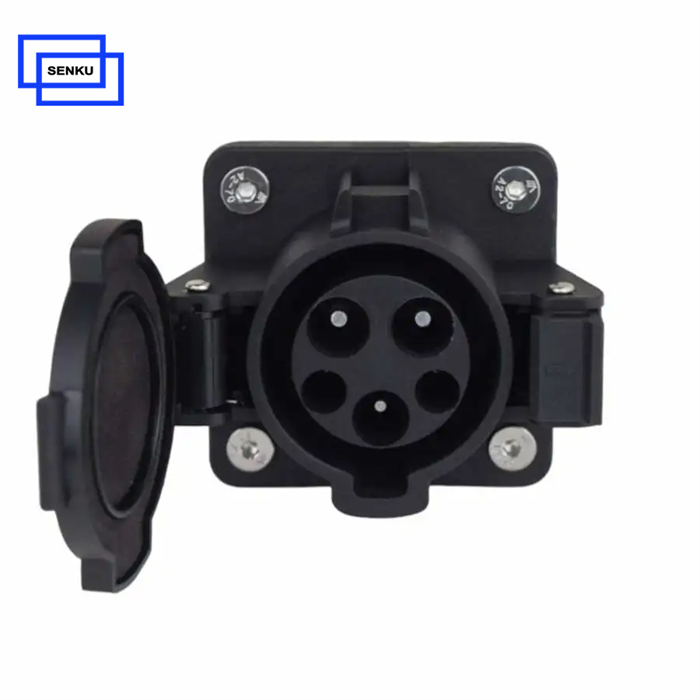

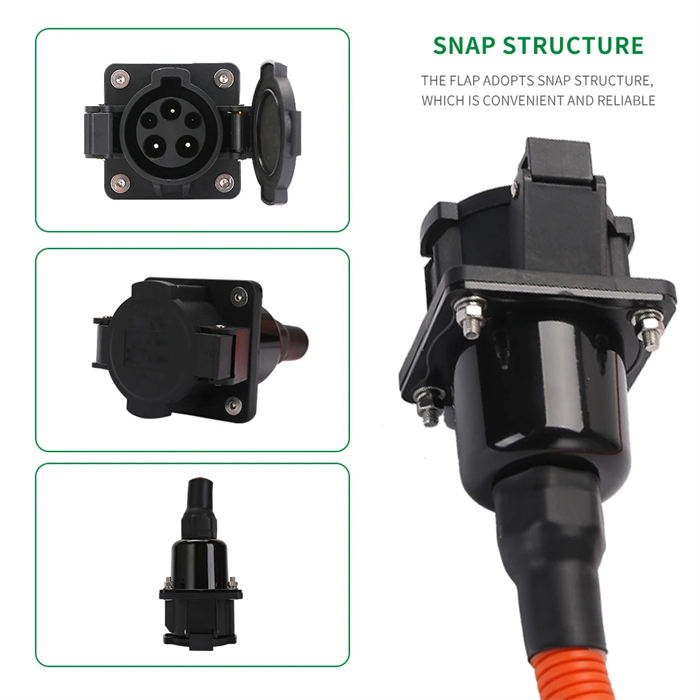

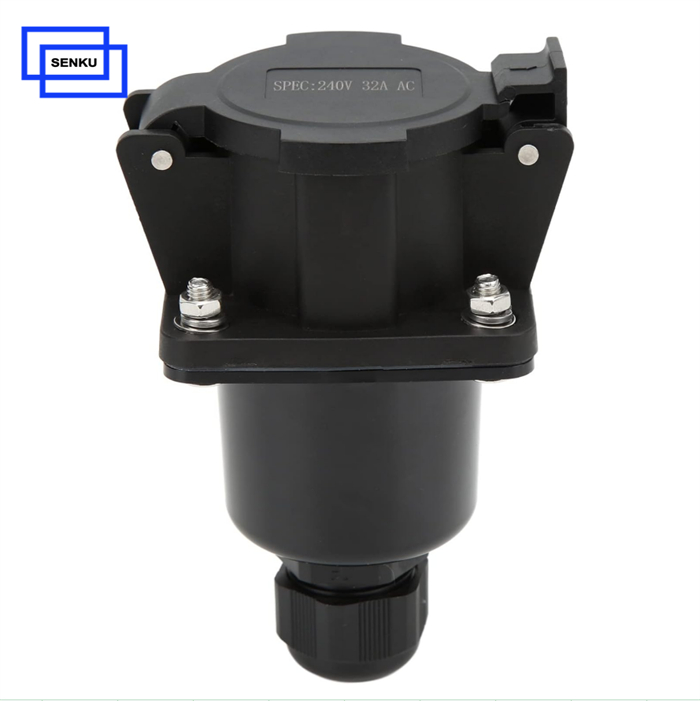

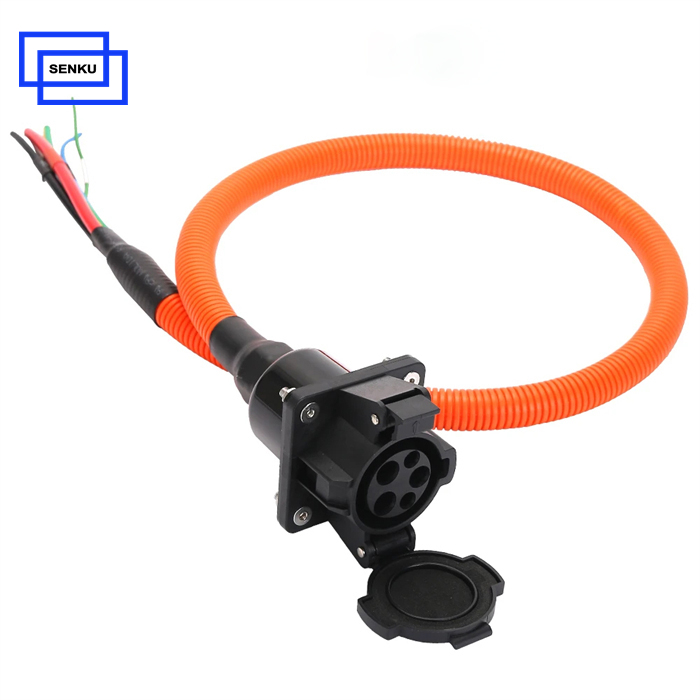

80A 240V AC Ev Charging Socket Type1

Rated Current: 80A
Rated Voltage: 240V AC
Certificate: CE /UL
IP Level: IP44
Product description: Type 1 connectors are primarily used in North America for residential AC charging and adhere to the SAE J1772 standard. These connectors feature a 5-pin configuration, consisting of L1, N, PE, PP, and
Inquiry

Product introduction

19.2KW 80A J1772 Ev Charging Socket Type1

Electric Performance
Rated current	80A
Operate voltage	240V AC
Insulation Resistance	>2000MΩ (DC1000V)
Terminal temperature rise.	<50K
Mechanical life	no-load plug in / plug out > 10000 times
Material	Thermoplastic, Flame retardant grade UL94-0;
Material	Pin: Cooper alloy,sliver + thermoplastic on the top
Operation Temp.	-30℃ ~ + 50℃
IP protection class	IP44
Standard	SAE J1772 , UL 2251
Certifications	CE UL

Type 1 connectors are primarily used in North America for residential AC charging and adhere to the SAE J1772 standard. These connectors feature a 5-pin configuration, consisting of L1, N, PE, PP, and CP. The Type 1 EV charging inlet is available in three current options: 16A, 32A, 50A and 80A, allowing flexibility based on charging needs.

Applications

The SENKU J1772 Type 1 32A Charging Socket is compatible with a variety of Battery Electric Vehicles (BEV) and Hybrid Plug-in Electric Vehicles (HPEV)

Environmental Performance

Wide Operating Temperature Range: The SENKU J1772 Type 1 Charging Socket is built to operate in extreme temperatures, from -30°C to +50°C, making it suitable for use in various climates and environments.
