> Ev Charging Socket

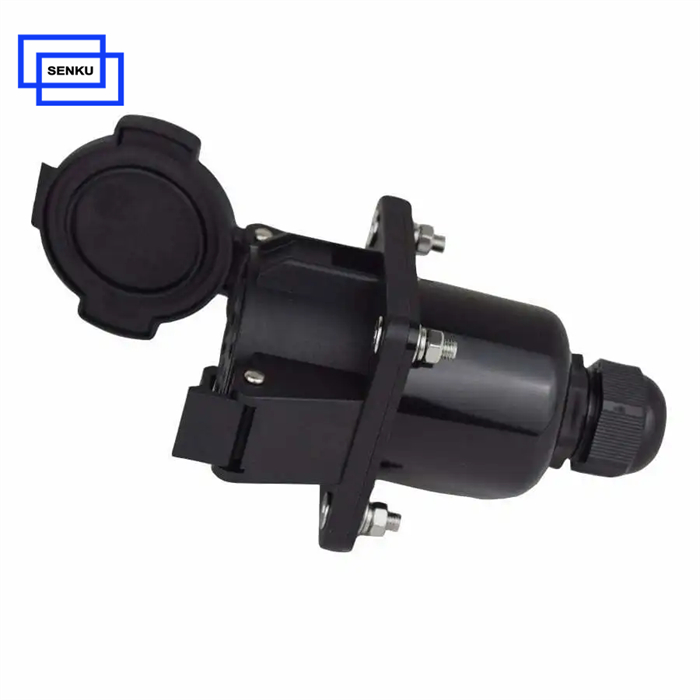

50A 240V AC Ev Charging Inlet Type1

Rated Current: 50A
Rated Voltage: 240V AC
Certificate: CE /UL
IP Level: IP44
Product description: The SENKU J1772 Type 1 Charging Socket is built to operate in extreme temperatures, from -30°C to +50°C, making it suitable for use in various climates and environments.
Inquiry

Product introduction

UL Certification 50A EV Charging Inlet Type1

Electric Performance
Rated current	50A
Operate voltage	240V AC
Insulation resistance	>2000MΩ (DC1000V)
Terminal temperature rise.	<50K
Mechanical life	no-load plug in / plug out > 10000 times
Material	Thermoplastic, Flame retardant grade UL94-0;
Material	Pin: Cooper alloy,sliver + thermoplastic on the top
Operation Temp.	-30℃ ~ + 50℃
IP protection class	IP44
Standard	SAE J1772 , UL 2251
Certifications	CE UL

Type 1 socket

Applied Materials

Thermoplastic Housing: The socket’s housing is made from UL94 V-0 flame-retardant thermoplastic, offering excellent resistance to fire, heat, and wear, ensuring long-term durability.

High-Quality Pins: The pins are made from copper alloy with silver plating, providing superior conductivity and resistance to corrosion, ensuring consistent and reliable performance over time.

Environmental Performance

Wide Operating Temperature Range: The SENKU J1772 Type 1 Charging Socket is built to operate in extreme temperatures, from -30°C to +50°C, making it suitable for use in various climates and environments.

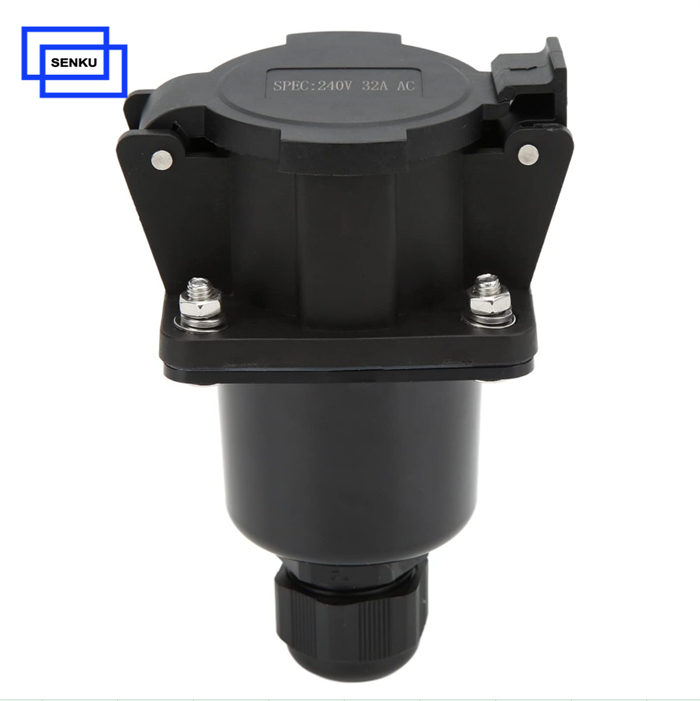

40A 240V AC J1772 Type 1 Socket

Senku charging connectors are built with sturdy and durable materials, designed to withstand diverse environmental conditions, ensuring long-lasting performance and reliability. Additionally, they are certified with both TUV and UL certifications, guaranteeing that our products meet the highest global standards for safety during the charging process.

By combining innovative technology with a commitment to quality, we provide reliable charging solutions that meet the demands of the growing EV market, enabling the shift to sustainable transportation.

Level 2 Car Charging 40A Type 1 Socket
