300A Car Charging Socket Ccs Type

Rated: 80A 125A 150A 200A 250A 300A 350Aoptional
Certificate: CE
IP Level: IP55
Mechanical lifespan: Plug and unplug ≥10000 times
Product description: The SENKU CCS2 car charging socket ccs type 2 complies with the rigorous standards of the Combined Charging System (CCS), which is widely utilized in Europe, Australia, and various regions globally. A
Inquiry

Product introduction

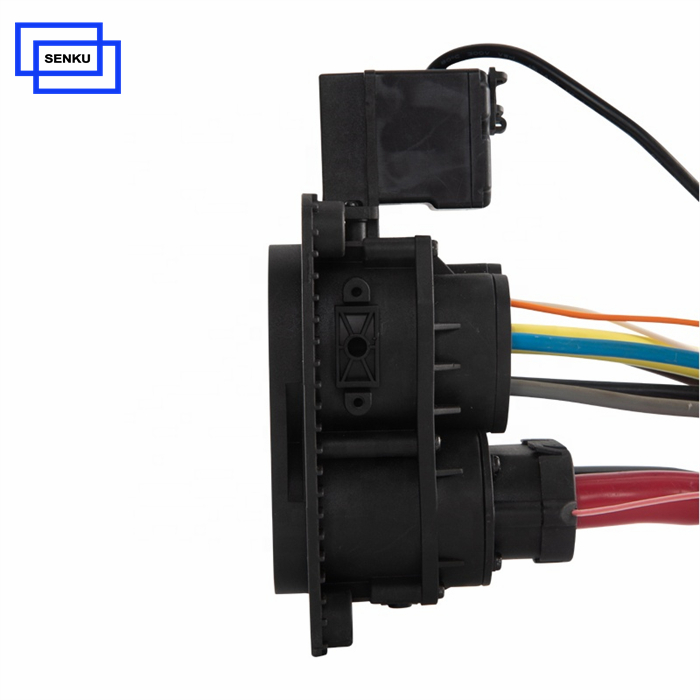

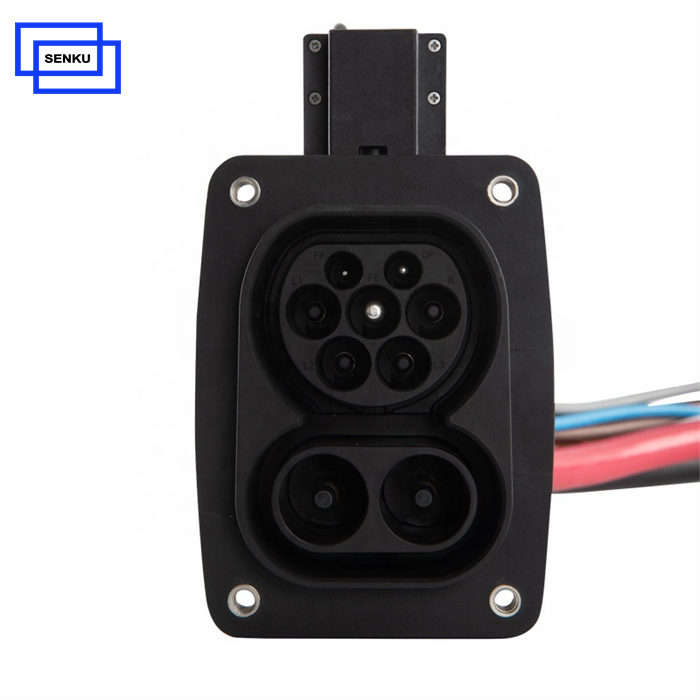

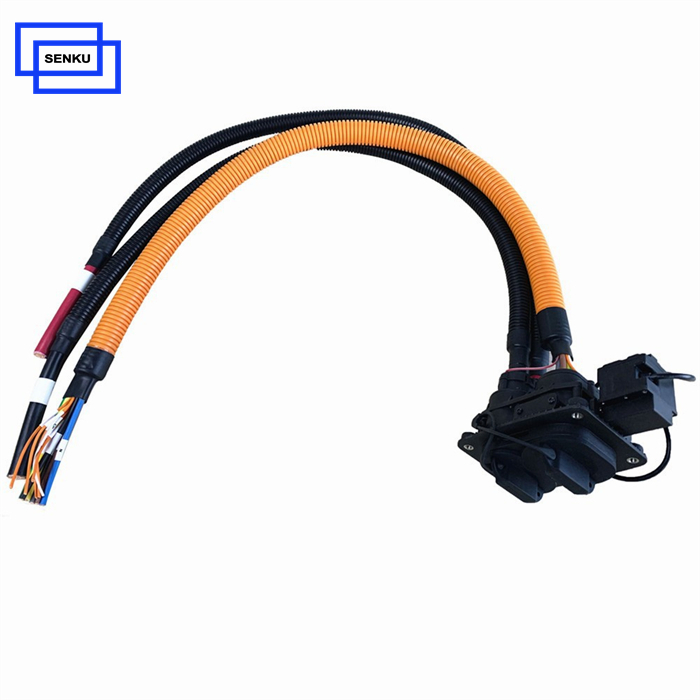

High Power Charging 300A Car Charging Socket CCS Type 2

The SENKU CCS2 car charging socket ccs type 2 complies with the rigorous standards of the Combined Charging System (CCS), which is widely utilized in Europe, Australia, and various regions globally. As a Type 2 inlet, this socket is compatible with an expanding number of EV charging networks, making it a dependable and future-ready choice for both vehicle manufacturers and EV drivers.

Electric Performance.
Rated current	63A AC and 300A DC
Operate voltage	240V / 480V AC and 1000V DC
Insulation resistance	>2000MΩ (DC1000V)
Terminal temperature rise.	<50K
Mechanical life	no-load plug in / plug out > 10000 times
Materia	Thermoplastic, Flame retardant grade UL94-0;
Materia	Pin: Cooper alloy,sliver + thermoplastic on the top
Operation Temp.	-30℃ ~ + 50℃
IP protection class	IP55
Standard	IEC /EN 62196-1,IEC /EN 62196-3
Certifications	TUV CE

The SENKU Combined Charging System (CCS) car charging socket is based on widely recognized standards for electric vehicles. It supports both single-phase and three-phase AC charging (up to 43 kW) as well as DC fast charging (up to 300 kW). This makes it a versatile solution for diverse charging requirements. SENKU’s car charging sockets ccs type 2 are available in current ratings ranging from 60A to 350A, combining AC Type 2 and DC fast charging within a single vehicle inlet.
