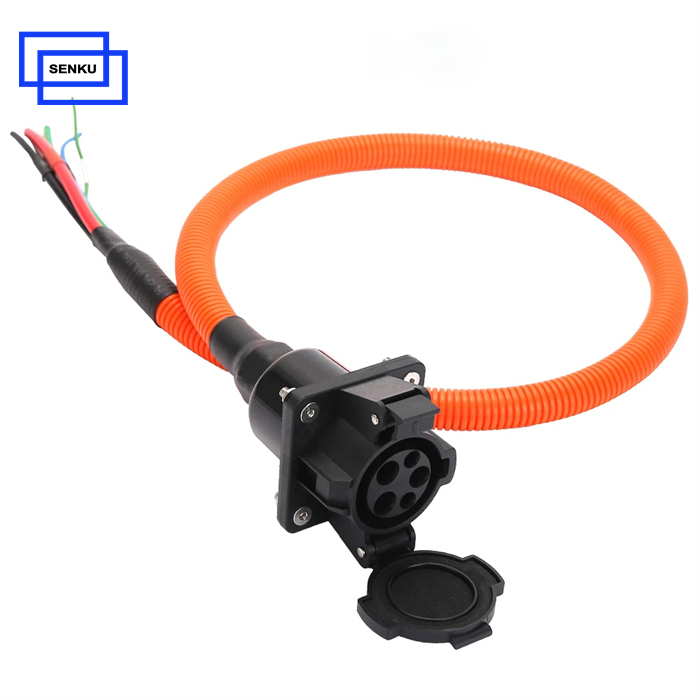

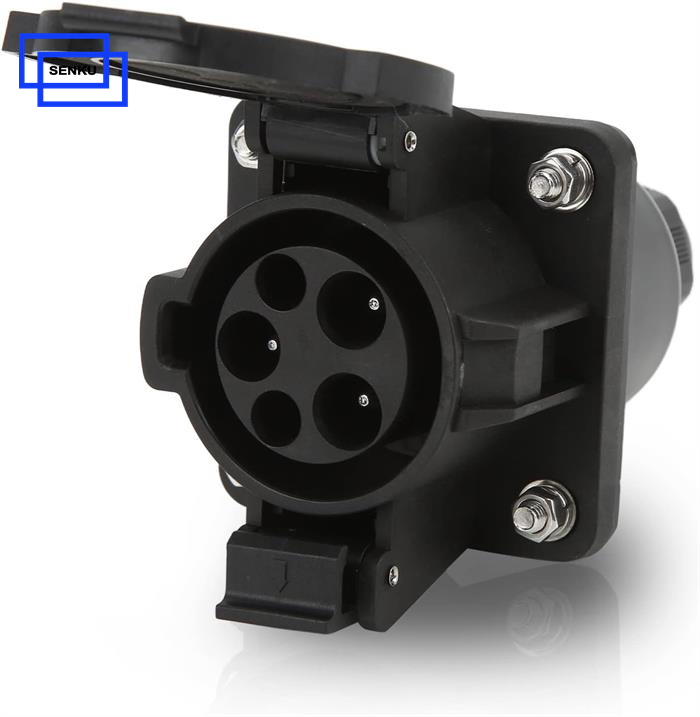

Eletric Car 16A Sae J1772 Socket
- Rated Current: 16A 32A 50A 80A
- Rated Voltage: 240V AC
- Certificate: CE / UL
- IP Level: IP44
- Product description: Senku Electric Car 16A 32A 50A 80A Type 1 J1772 Ev Socket is made from reliable, flame-resistant, pressure and abrasion-resistant materials, and it suitable for various Battery Electric Vehicles (BE
Product introduction
Eletric Car 16A Sae J1772 Socket
Main Parameter
Electrical Specifications
Rated current: 16A
Operating voltage: 240V
Mechanical Specifications
Durability: Can withstand over 10,000 plug-in/pull-out cycles under no load
Material Composition
Casing: Thermoplastic, UL94 V-0 flame-retardant
Pins: Copper alloy with silver plating
Environmental Performance
Operating temperature: -30°C to +50°C
Application
Suitable for various Battery Electric Vehicles (BEV) and High-Performance Electric Vehicles (HPEV)
Cable Specifications
16A: 3 x 2.5mm² + 2 x 0.5mm² / 3 x 14AWG + 1 x 18AWG
32A: 3 x 6mm² + 2 x 0.5mm² / 3 x 10AWG + 1 x 18AWG
40A: 2 x 8AWG + 1 x 10AWG + 1 x 16AWG
50A: 2 x 8AWG + 1 x 10AWG + 1 x 16AWG
80A: 2 x 5AWG + 1 x 6AWG + 2 x 18AWG

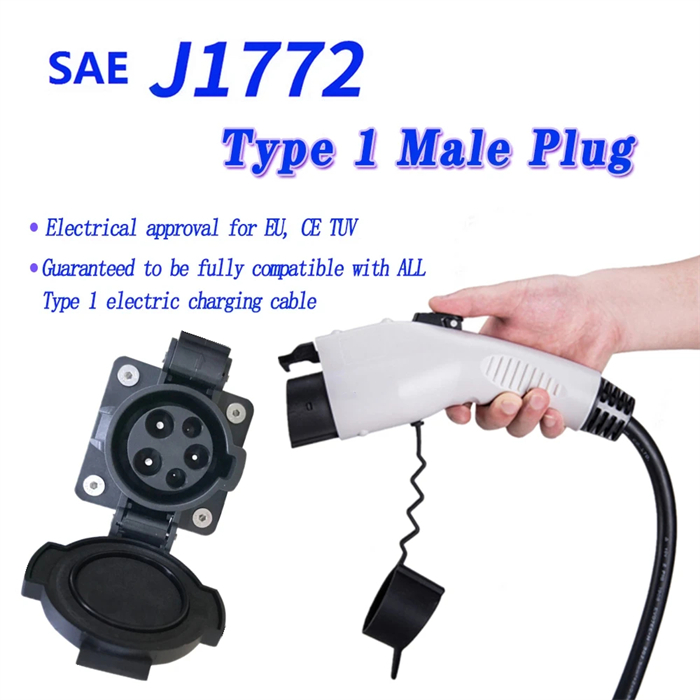

SAE J1772 Compliant: The SENKU J1772 Type 1 Charging Socket fully complies with the SAE J1772 standard, ensuring interoperability with a wide range of electric vehicles across North America.

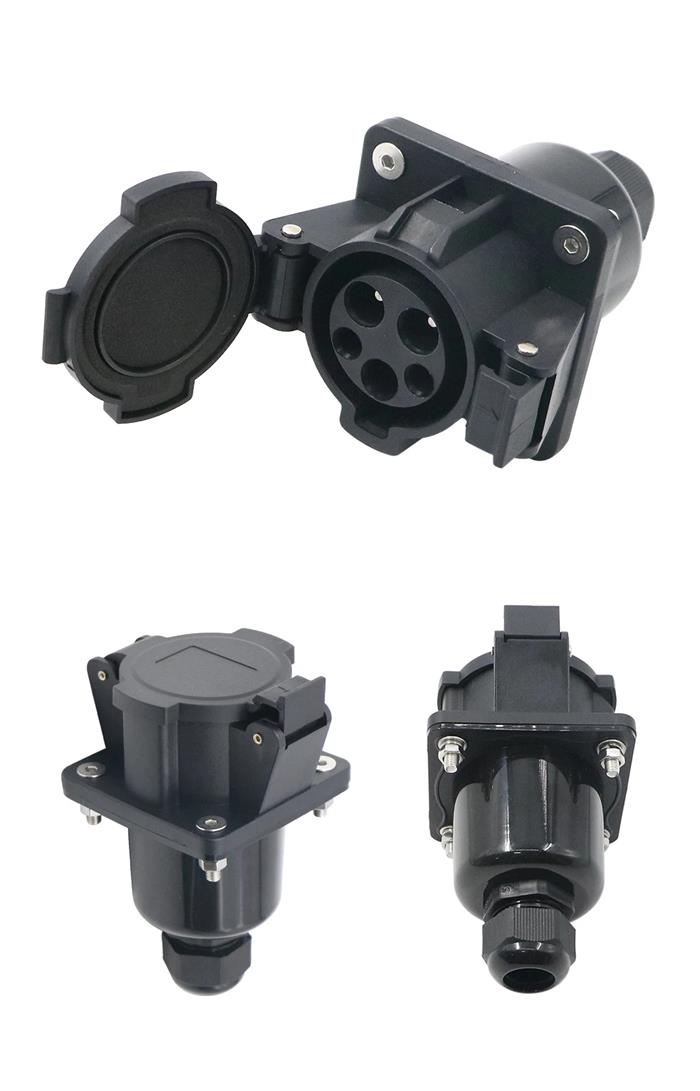

Sleek and Functional Design: The socket boasts a nice appearance with left flip protection and supports front installation, making it easy to integrate into various electric vehicles while maintaining an aesthetically pleasing look.
Reliable Materials: Constructed from high-quality, flame-retardant thermoplastic with pressure and abrasion resistance, the socket provides long-lasting performance even in demanding environments.
Excellent Protection: With an IP44 protection rating under working conditions, the socket is resistant to dust and water spray, making it suitable for outdoor installations.
