> Ev Charging Socket

150A Ev Charging Sockets Ccs2

Rated: 80A 125A 150A 200A 250A 300A 350Aoptional
Certificate: CE
IP Level: IP55
Mechanical lifespan: Plug and unplug ≥10000 times
Product description: The SENKU CCS2 EV Charging Socket is a state-of-the-art solution designed for Plug-in Hybrid Electric Vehicles (PHEV) and Battery Electric Vehicles (BEV), offering the perfect balance of convenience,
Inquiry

Product introduction

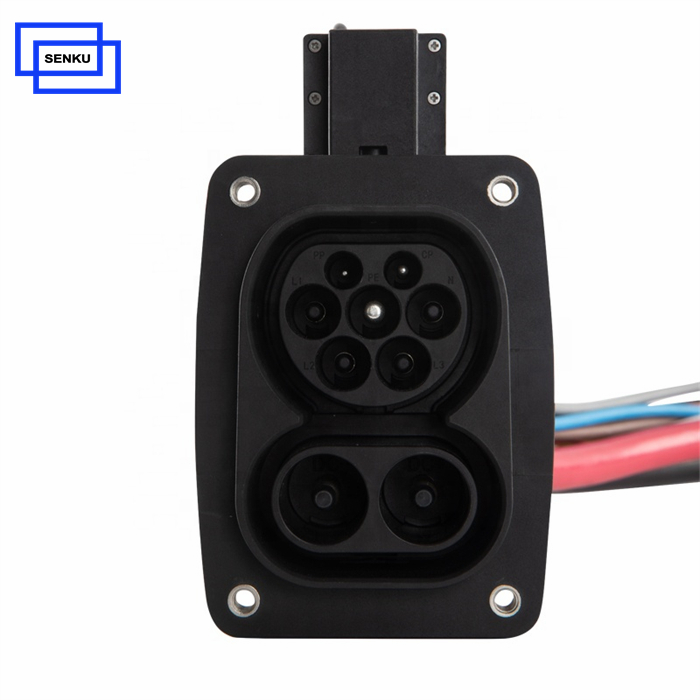

Car Charging 150A Ev Charging Sockets CCS2

The SENKU CCS2 EV Charging Socket is a state-of-the-art solution designed for Plug-in Hybrid Electric Vehicles (PHEV) and Battery Electric Vehicles (BEV), offering the perfect balance of convenience, performance, and versatility. As an industry-standard vehicle connector, the CCS2 socket supports both AC and DC charging, meeting the evolving needs of modern EV drivers and the fast-growing electric vehicle infrastructure in Europe, Australia, and beyond.

Electric Performance.
Rated current	32A AC and 150A DC
Operate voltage	240V / 480V AC and 1000V DC
Insulation resistance	>2000MΩ (DC1000V)
Terminal temperature rise.	<50K
Mechanical life	no-load plug in / plug out > 10000 times
Materia	Thermoplastic, Flame retardant grade UL94-0;
Materia	Pin: Cooper alloy,sliver + thermoplastic on the top
Operation Temp.	-30℃ ~ + 50℃

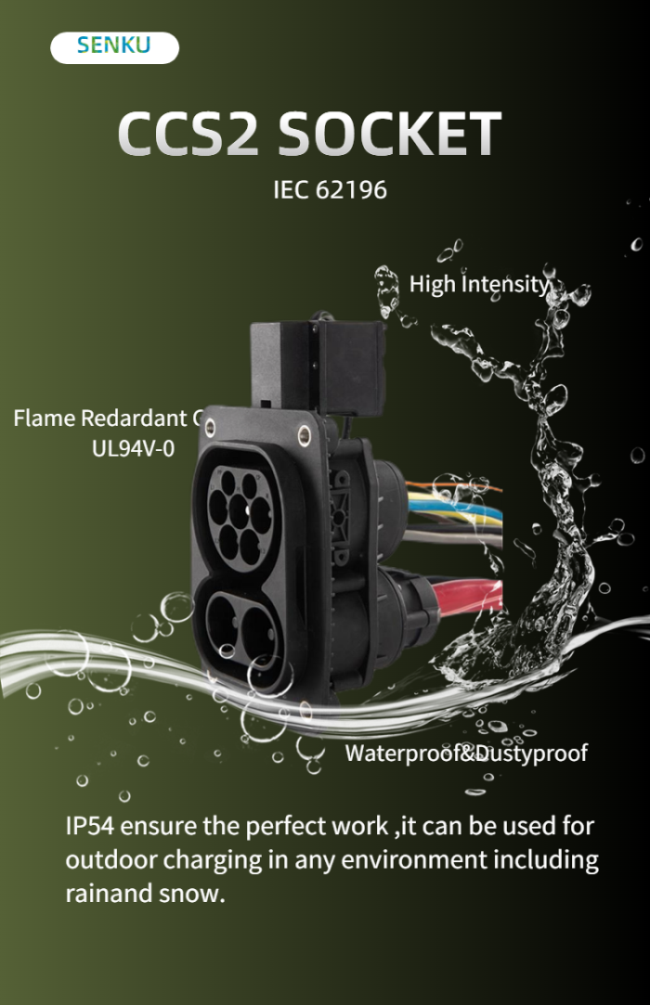

IP protection class	IP55

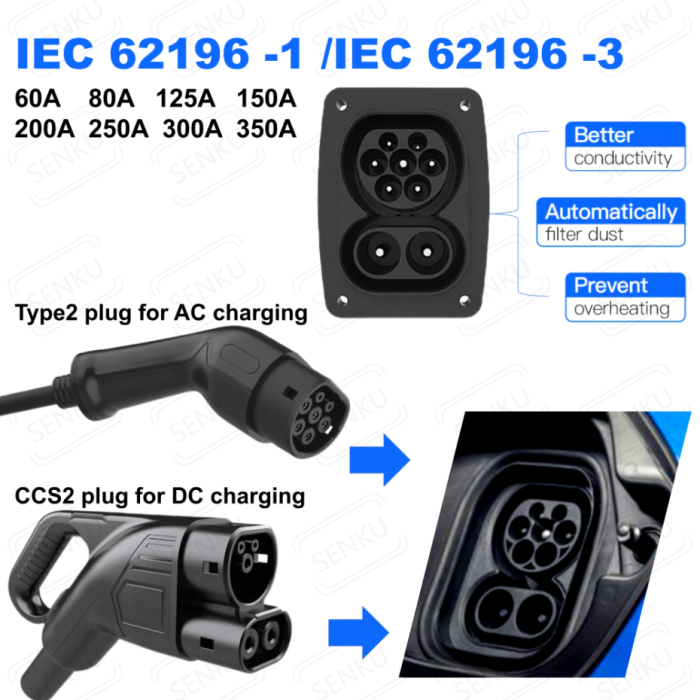

Standard	IEC /EN 62196-1,IEC /EN 62196-3
Certifications	TUV CE

Charging Sockets Ccs2

Wide Range of Applications
The SENKU CCS2 EV Charging Socket is ideal for a variety of EV charging scenarios, including:
Residential Charging: Compatible with home charging systems for both AC charging needs.
Public Charging Stations: Supports high-speed DC charging at public stations for long trips and urban commuters.
Commercial Fleets: A reliable choice for fleet operators who need fast and efficient vehicle turnover.
Workplace Charging: Provides flexible charging options for employees and visitors in commercial locations.
