> Ev Charging Socket

Rated Current: 16A
Rated Voltage: 250V AC / 415V AC
Certificate: TUV CE RHOS
IP Level: IP44
Product description: The type 2 ev outlet meet the iec 62196 standards. the type 2 ev outlet can install on the type2 standard ev charging stations, end users can use mode3 charging cable to charge the IEC62196 standard e
Inquiry

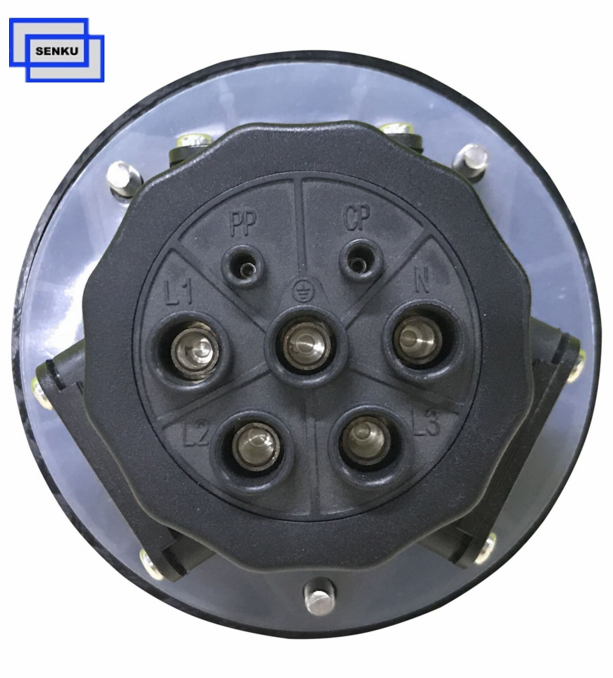

type 2 ev outlet

Features

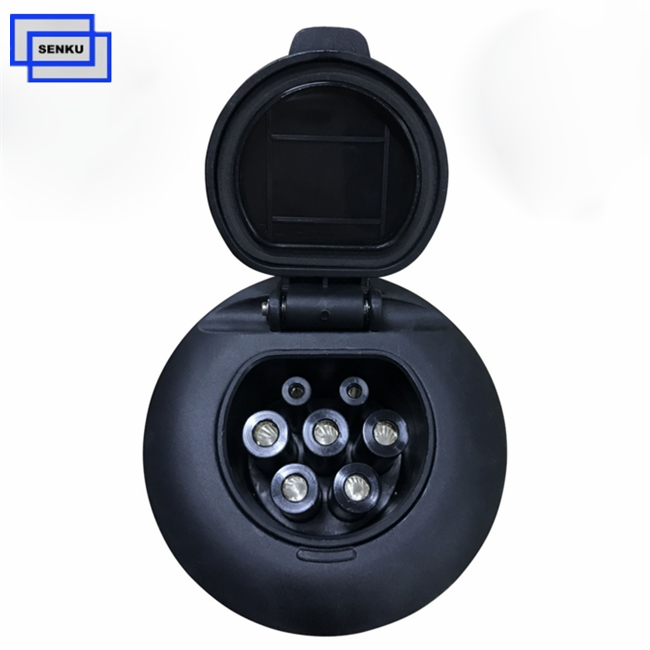

1- The type 2 ev outlet with protection cover, support front installation.

2- The type 2 ev outlet with TUV CE RHOS certificates, it is safty and reliable.

3- The ev outlet with safty pins insulated head design to prevent accidental dirrect contact with staff.

Basic Data

Electric Performance.
Rated current	16A
Rated voltage	250V AC, Single Phase or 415V AC, Three Phase for option (please note the voltage you need when inquiry)
Standard	IEC 62196 Standard Type2 Socket
Insulation resistance	>1000MΩ (DC500V)
Terminal temperature rise.	<50K
Withstand Voltage	2000V
Mechanical life	no-load plug in / plug out > 10000 times
Materia	Thermoplastic, Flame retardant grade UL94-0; Pin: Cooper alloy,sliver + thermoplastic on the top
Mechnical Life	No load plug in / out more than 10000 times
Operation Temp.	-30℃ ~ + 50℃
IP protection class	IP 44

ANY QUESTION PLEASE CONTACT US.
