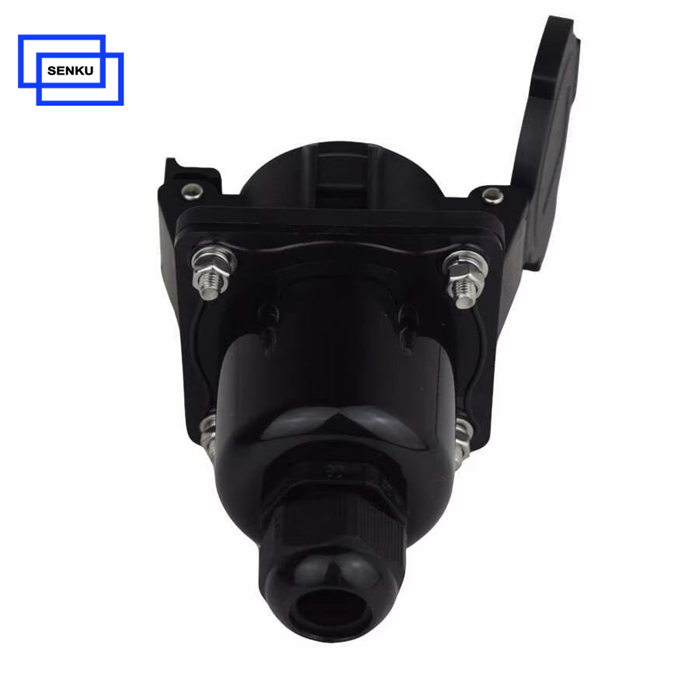

40A 240V AC J1772 Type 1 Socket

Rated Current: 40A
Rated Voltage: 240V AC
Certificate: CE /UL
IP Level: IP44
Product description: With a rated current of 40A, the SENKU J1772 Type 1 Charging Socket supports efficient and rapid charging for most electric vehicles. Operating at 240V, this socket is ideal for Level 2 charging setup
Inquiry

Product introduction

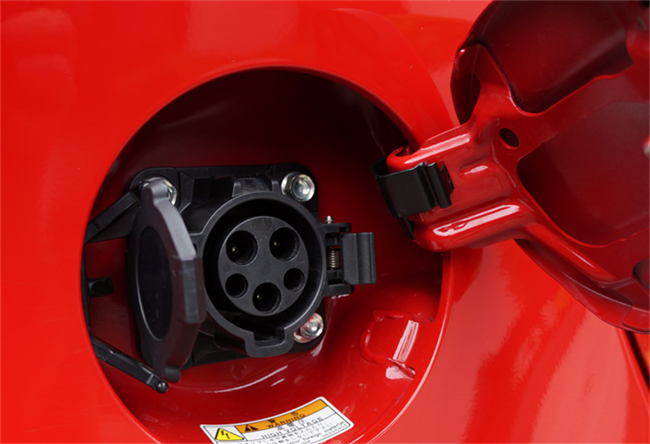

Level 2 Car Charging 40A Type 1 Socket

Electric Performance
Rated current	40A
Operate voltage	240V AC
Insulation resistance	>2000MΩ (DC1000V)
Terminal temperature rise.	<50K
Mechanical life	no-load plug in / plug out > 10000 times
Material	Thermoplastic, Flame retardant grade UL94-0;
Material	Pin: Cooper alloy,sliver + thermoplastic on the top
Operation Temp.	-30℃ ~ + 50℃

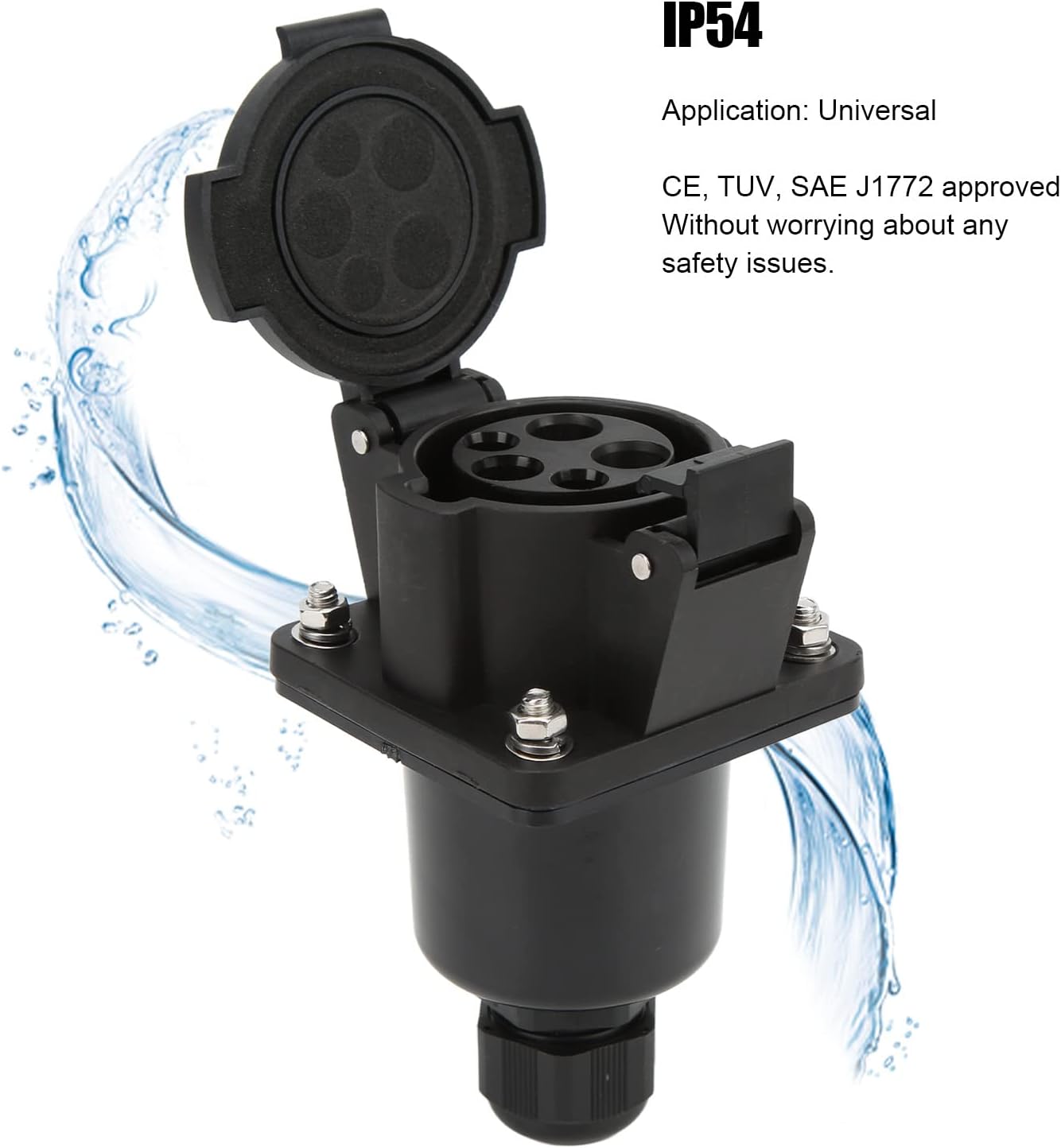

IP protection class	IP44
Standard	SAE J1772 , UL 2251
Certifications	CE UL

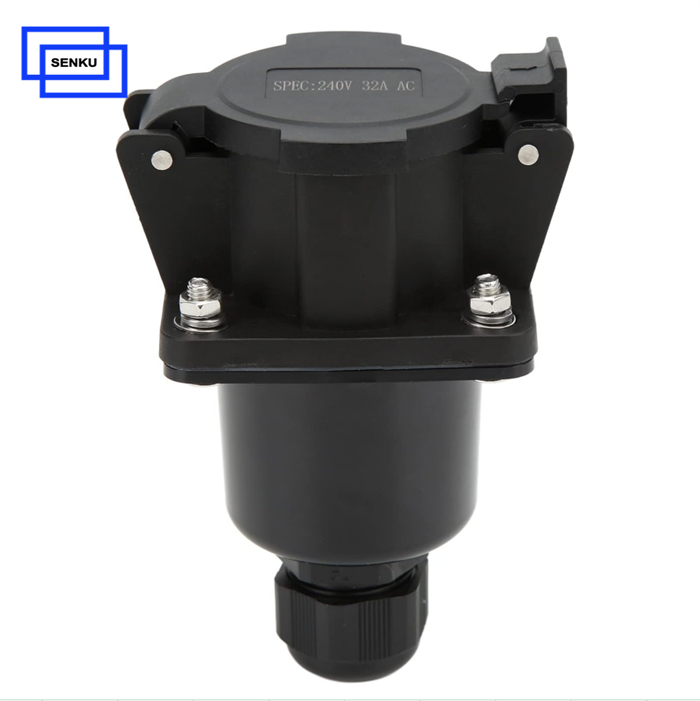

Type 1 socket

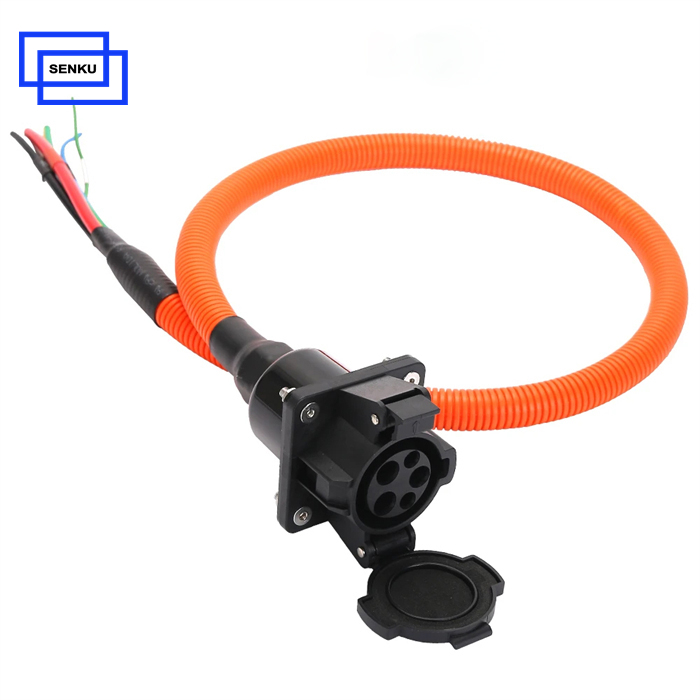

Cable Specifications

The SENKU car charging 40A Type 1 socket supports various cable configurations, depending on the required charging capacity:

16A: 3 X 2.5mm² + 2 X 0.5mm² / 3 X 14AWG + 1 X 18AWG

32A: 3 X 6mm² + 2 X 0.5mm² / 3 X 10AWG + 1 X 18AWG

40A: 2 X 8AWG + 1 X 10AWG + 1 X 16AWG

50A: 2 X 8AWG + 1 X 10AWG + 1 X 16AWG

80A: 2 X 5AWG + 1 X 6AWG + 2 X 18AWG

Electrical Performance

Rated Current: With a rated current of 40A, the SENKU J1772 Type 1 Charging Socket supports efficient and rapid charging for most electric vehicles.

Operation Voltage: Operating at 240V, this socket is ideal for Level 2 charging setups, offering faster charging times compared to Level 1 systems.

Insulation Resistance: The socket provides a high insulation resistance of over 1000MΩ at DC500V, ensuring electrical safety during operation.

Terminal Temperature Rise: The temperature rise of the terminals remains below 50K, preventing overheating and ensuring safe operation.

Withstand Voltage: The socket is designed to withstand voltages of up to 2000V, providing enhanced safety during high-power charging.

Contact Resistance: With a maximum contact resistance of 0.5mΩ, the socket ensures minimal energy loss, making charging more efficient.

40A 240V AC J1772 Type 1 Socket

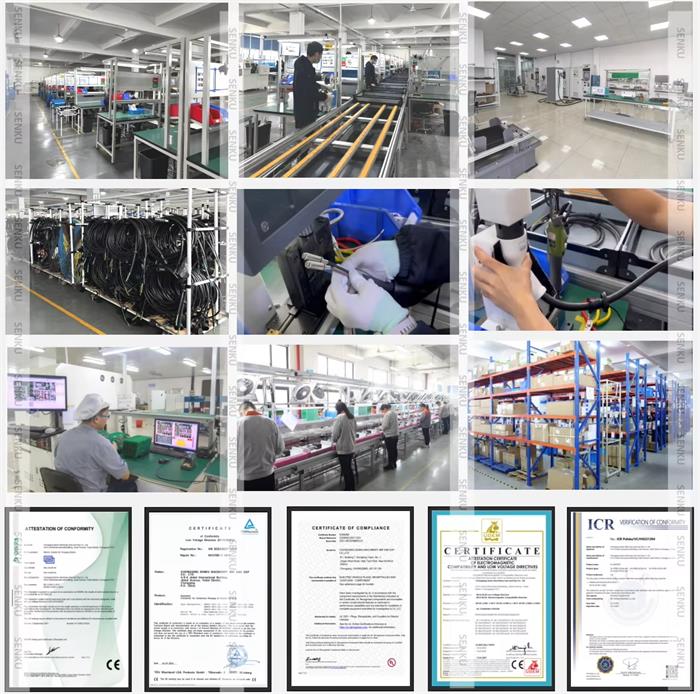

At SENKU, we are committed to driving the future of electric mobility by focusing on the research and production of high-quality electric vehicle (EV) charging equipment. Our product portfolio includes a wide range of EV charging connectors such as charging plugs, charging sockets, and adapters, as well as AC and DC charging stations and related accessories.
