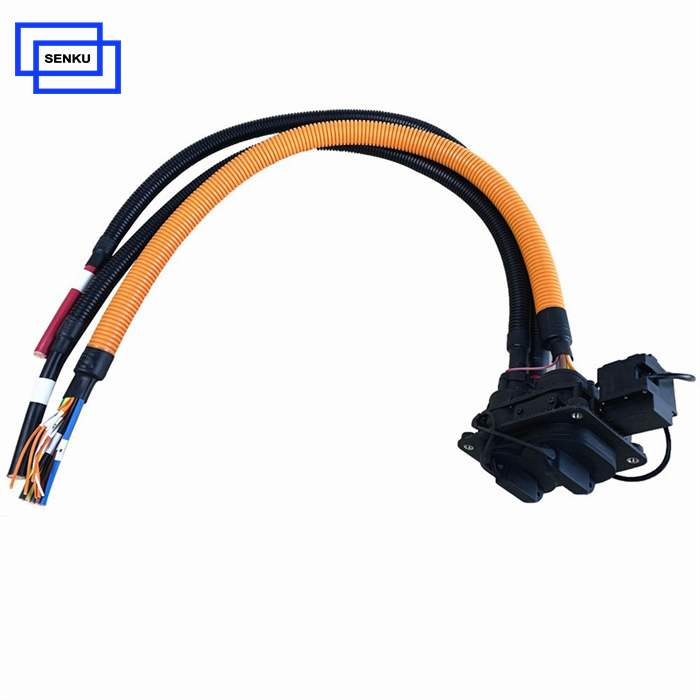

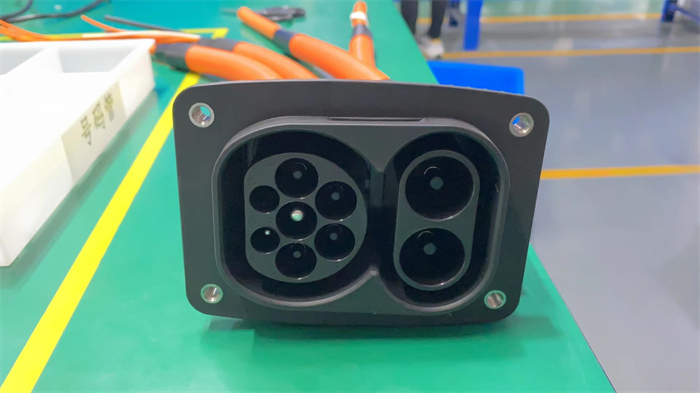

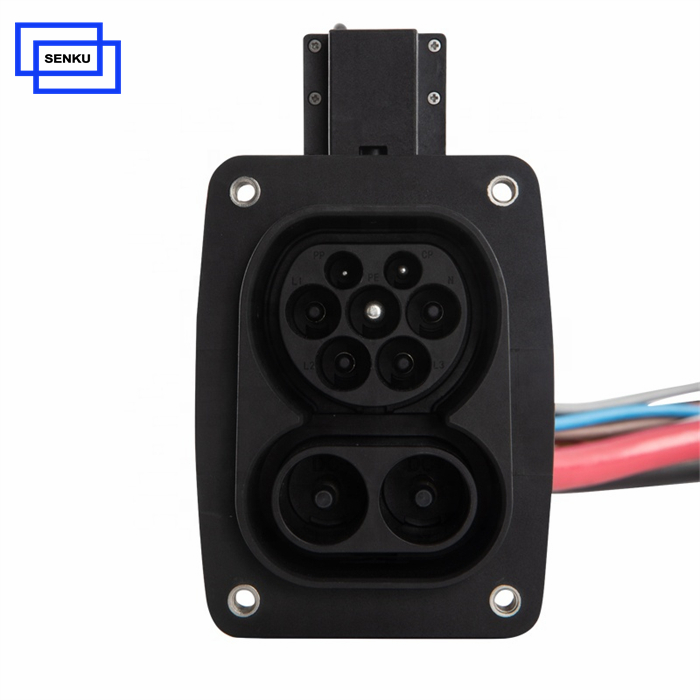

350A Electric Car CCS2 Charging Socket

Rated: 80A 125A 150A 200A 250A 300A 350Aoptional
Certificate: CE
IP Level: IP55
Mechanical lifespan: Plug and unplug ≥10000 times
Product description: The CCS2 350A electric car ccs charging socket offers high-speed charging, supporting DC fast charging up to 350 kW. This allows for quick recharging of EVs, minimizing downtime and increasing the co
Inquiry

Product introduction

EV HPC Solution 350A Electric Car CCS2 Charging Socket

The CCS2 350A electric car ccs charging socket offers high-speed charging, supporting DC fast charging up to 350 kW. This allows for quick recharging of EVs, minimizing downtime and increasing the convenience of using electric vehicles for long-distance journeys.

Electric Performance.
Rated current	63A AC and 350A DC
Operate voltage	240V / 480V AC and 1000V DC
Insulation resistance	>2000MΩ (DC1000V)
Terminal temperature rise.	<50K
Mechanical life	no-load plug in / plug out > 10000 times
Materia	Thermoplastic, Flame retardant grade UL94-0;
Materia	Pin: Cooper alloy,sliver + thermoplastic on the top
Operation Temp.	-30℃ ~ + 50℃
IP protection class	IP55

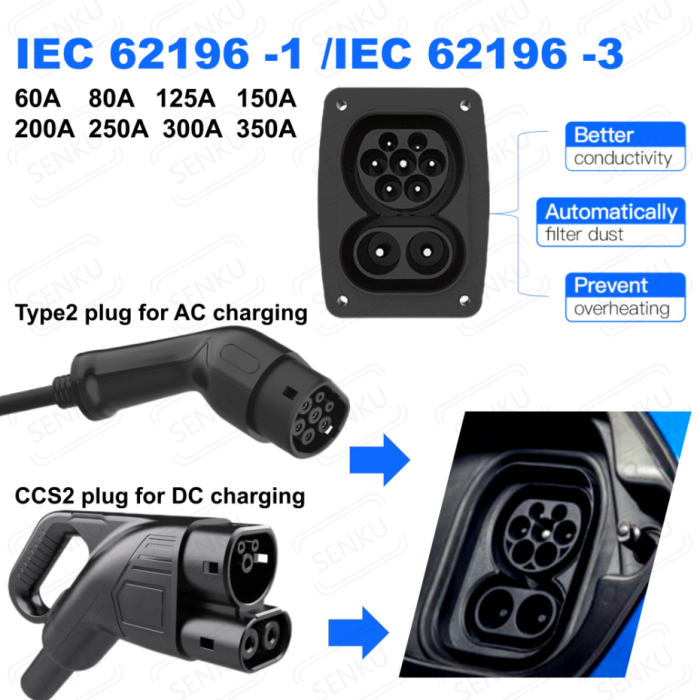

Standard	IEC /EN 62196-1,IEC /EN 62196-3
Certifications	TUV CE

Ev Electric Charging 200A Combo Ccs Ev Charging Inlet

Designed to handle both AC slow charging and DC fast charging, the SENKU CCS2 electric car ccs charging socket offers flexibility for various charging scenarios. Its dual-functionality ensures a smooth experience, whether charging at home using an AC charger or at a DC fast charging station.
- AC Charging: This socket supports both single-phase and three-phase AC charging, making it ideal for residential, workplace, and public charging points. EV owners can conveniently top up their vehicles using home chargers or public AC stations.
- DC Fast Charging: For rapid recharging, the CCS2 electric car ccs charging socket enables high-power DC charging, drastically reducing charging times. This feature is especially useful for long-distance travel or when quick energy replenishment is needed, delivering fast and efficient power to keep drivers on the road.
