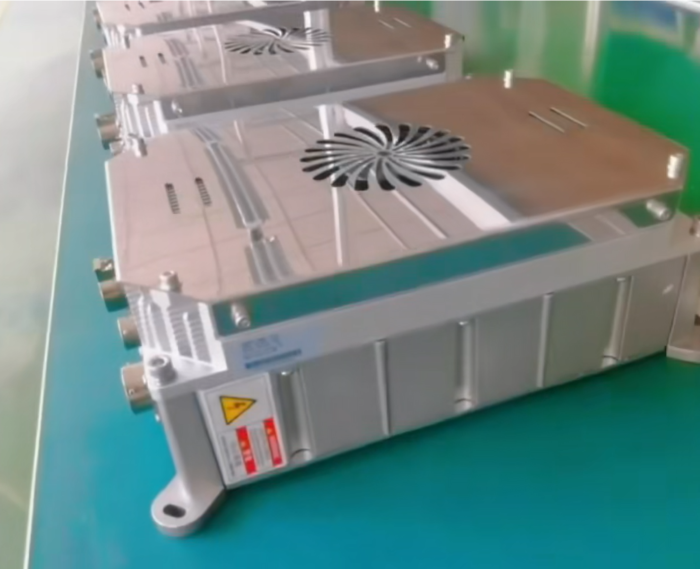

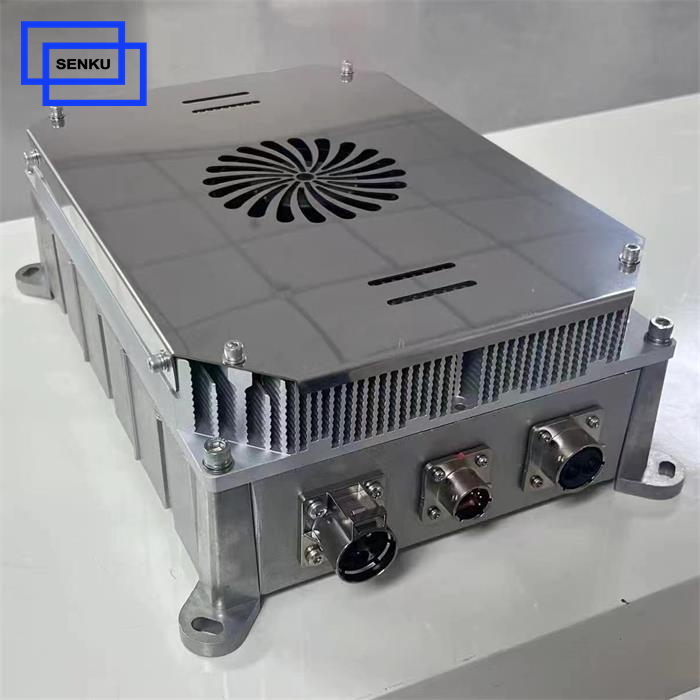

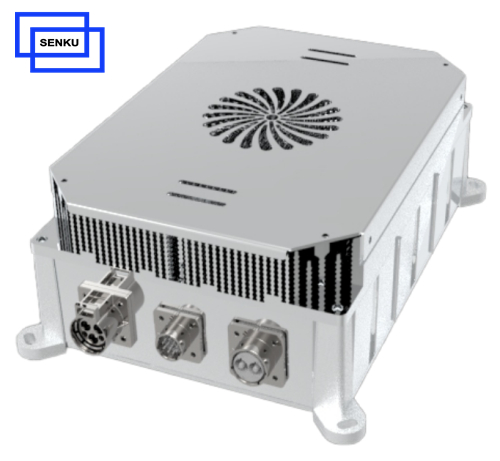

6.6KW 80V EV AC DC Battery Charger

Input Voltage: 90～265VAC /32A
Rated Power: 6.6KW
Output voltage: 0～105VDC
Output current: 0～80A
Product description: The 6.6KW obc chargers application is very extensive, including personal electric vehicles such as cars, trucks, and motorcycles, as well as public transportation vehicles such as electric buses and t
Inquiry

Product introduction

Part No	Input Voltage Range	Rated Output Power	Rated Output Voltage	Output Voltage Range	Output Current Range
SK-L080V6600	90～265VAC	6.6KW	80V DC	0～105VDC	0～80A

SK-L series 80V 96V AC to DC onboard obc charger is an efficient power electronic product used for converting AC to DC charging. it has excellent cost-effectiveness through advanced components and compact system design.

This 6.6KW on-board charger is easy to integrate into existing infrastructure; The parallel charging mode can flexibly increase the charging power.

Basic Data

Specification	Model	SK-LXXXV6600 (SK-L080V6600)
AC Input	Phases/ Lines	1-phase;Single Phase
	Input Voltage /Current	95V - 265V AC /≤32A
	Frequency	45Hz-65Hz
DC Output	Output Power	6.6KW @ 220VAC
	Output Voltage	0～105VDC (Rated 80V)
	Output Current	0～80A
Others	Operating noise	≤60dB
	CAN BUS	Support (Baud Rate 125Kbps、250Kbps、500Kbps optional)
	Cooling Method	Fan Cooling
	Dimension	302211113mm
	IP Level	IP 67

More specification of this 80V 96V AC to DC onboard obc charger, please contact our sales.

3.3 kw charger senku obc charger

3.3kw on board charger 500V 600V 700V

Lithium Lifepo4 Lead-acid Battery 3.3 kw charger 132V

Application of 80V 96V AC to DC onboard obc charger

The application of electric vehicle on-board chargers is very extensive, including personal electric vehicles such as cars, trucks, and motorcycles, as well as public transportation vehicles such as electric buses and trains. The industrial applications of electric vehicle on-board chargers include charging electric forklifts, golf carts, and other industrial vehicles. Overall, electric vehicle on-board chargers are a key component of the constantly evolving electric vehicle industry and will continue to play an important role in future transportation.
