> AC / DC On Board Charger

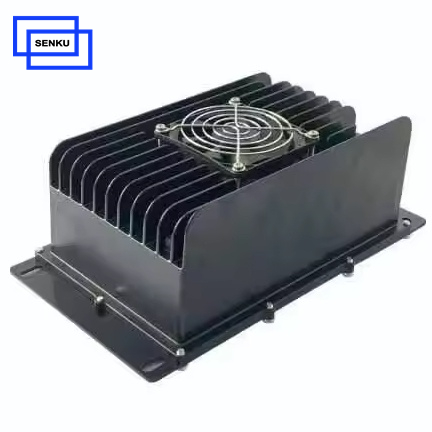

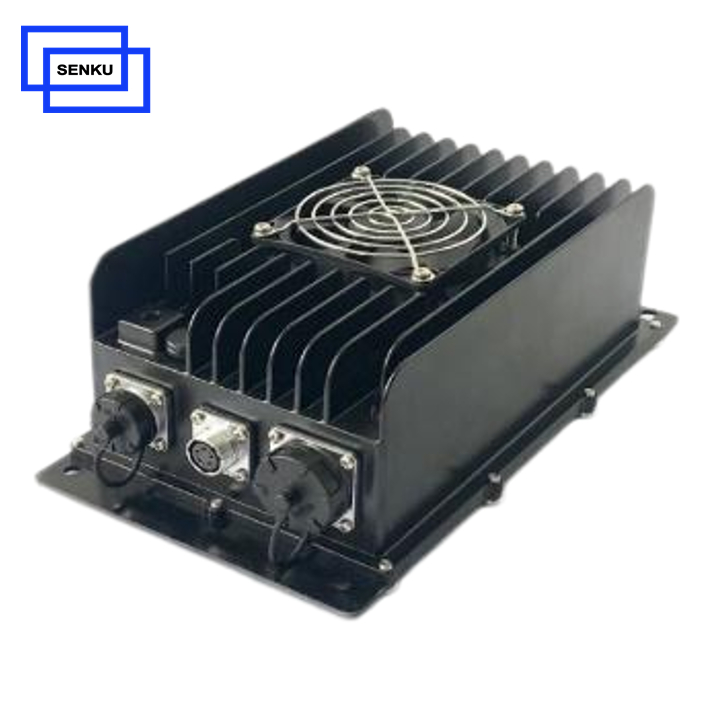

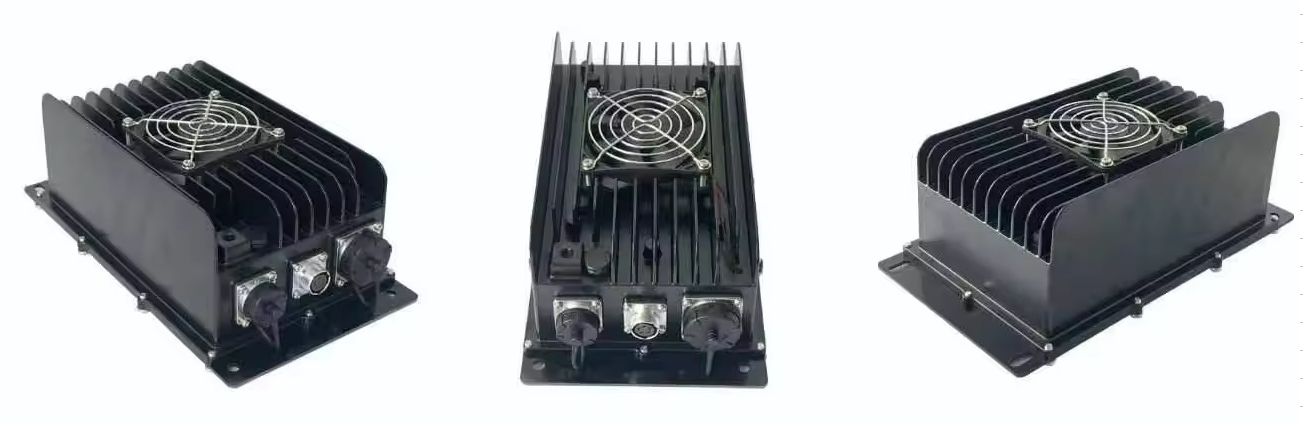

2KW 60V AC to DC On Board Charger

Input Voltage: 90～265VAC /10A
Rated Power: 2KW
Output voltage: 0～80VDC
Output current: 0～35A
Product description: 2KW 60v lithium battery charger has been designed and optimized to maintain strong performance in harsh tropical conditions. The battery charger integrates an AC to DC converter inside the cabinet, al
Inquiry

Product introduction

Part No	Input Voltage Range	Rated Output Power	Rated Output Voltage	Output Voltage Range	Output Current Range
SK-L060V2000	90～265VAC	2.0KW	60V DC	0～80VDC	0～35A

60v lithium battery charger

Introduction

The 2KW AC To DC On Board Charger has been designed and optimized to maintain strong performance in harsh tropical conditions. The battery charger integrates an AC to DC converter inside the cabinet, allowing the vehicle to be charged directly through the AC grid input.
The battery charger output side is connected to the electric vehicle battery pack and operates in accordance with CAN information (current, voltage, and charging requirements) from the electric vehicle BMS.

(Tip: The 2KW AC To DC On Board Charger can also work without CAN)

Basic Data

Specification	Model	SK-LXXXV2000 (SK-L060V2000)
AC Input	Phases/ Lines	1-phase;Single Phase
	Input Voltage /Current	95V - 265V AC /≤10A
	Frequency	45Hz-65Hz
DC Output	Output Power	2.0KW @ 220VAC
	Output Voltage	0～80VDC (Rated 60V)
	Output Current	0～35A
Others	Operating noise	≤60dB
	CAN BUS	Support (Baud Rate 125Kbps、250Kbps、500Kbps optional)
	Cooling Method	Fan Cooling
	Dimension	27716599mm
	IP Level	IP 67

More specification of this 2KW 60v lithium battery charger, please contact our sales.

SENKU OBC CHARGER

The 2KW 60v lithium battery chargers are the key to maintaining power supply for electric vehicles. They obtain AC power from driver's house and convert it into DC to charge the battery.

Application of the 2KW 60v lithium battery charger

Car chargers can be used for various electric vehicles (including plug-in hybrid vehicles), ships, or devices that require AC to DC charging.
Personal electric vehicle: used to charge electric vehicles, trucks, and motorcycles.
Public transportation: used to charge electric buses and trains.
Industrial applications: used to charge electric forklifts, golf carts, and other industrial vehicles
