> AC / DC On Board Charger
6.6KW 72V 96V AC DC Battery Charger
- Input Voltage: 90～265VAC /32A
- Rated Power: 6.6KW
- Output voltage: 0～100VDC
- Output current: 0～90A
- Product description: The 72V 6.6kw lithium ion battery charger has been designed and optimized to maintain strong performance in harsh tropical conditions. The battery charger integrates an AC to DC converter inside the c
Product introduction
Part No
Input Voltage Range
Rated Output Power
Rated Output Range
Output Voltage Range
Output Current Range
SK-L072V6600
90～265VAC
6.6KW
72V DC
0～100VDC
0～90A
Introduction
The 72V 96V AC DC Battery Charger has been designed and optimized to maintain strong performance in harsh tropical conditions. The battery charger integrates an AC to DC converter inside the cabinet, allowing the vehicle to be charged directly through the AC grid input.The battery charger output side is connected to the electric vehicle battery pack and operates in accordance with CAN information (current, voltage, and charging requirements) from the electric vehicle BMS.
Basic Data
| Specification | Model | SK-LXXXV6600 (SK-L072V6600) |
| AC Input | Phases/ Lines | 1-phase;Single Phase |
| Input Voltage /Current | 95V - 265V AC /≤32A | |
| Frequency | 45Hz-65Hz | |
|
DC Output |
Output Power |
6.6KW @ 220VAC |
|
Output Voltage |
0～100VDC (Rated 72V) |
|
|
Output Current |
0～90A |
|
|
Others |
Operating noise | ≤60dB |
|

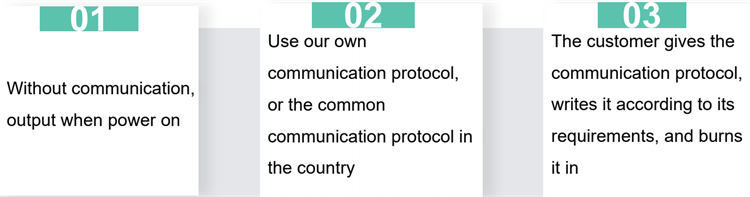

CAN BUS |
Support (Baud Rate 125Kbps、250Kbps、500Kbps optional) | |
| Cooling Method | Fan Cooling | |
| Dimension | 352*273*112mm | |

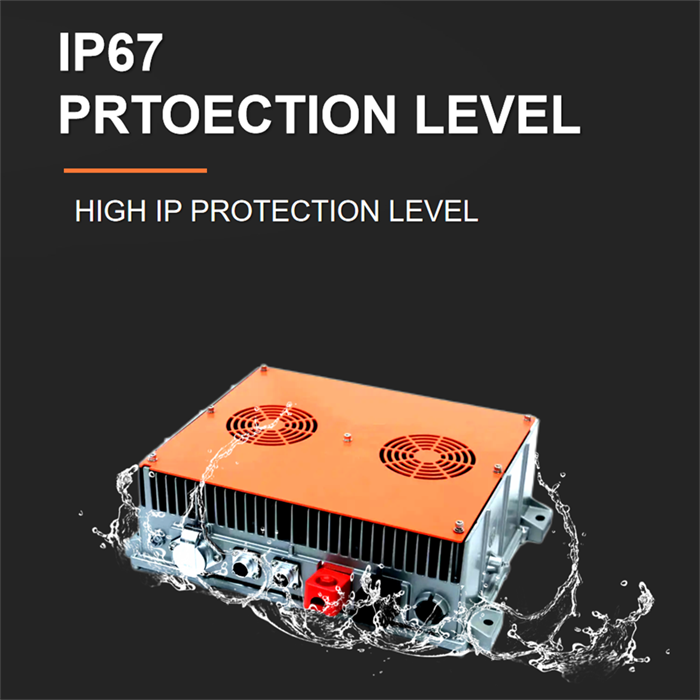

| IP Level | IP 67 |
More specification of this 72V 96V AC DC Battery Charger , please contact our sales.
Youtube video Link for the 72V 96V AC DC Battery Charger

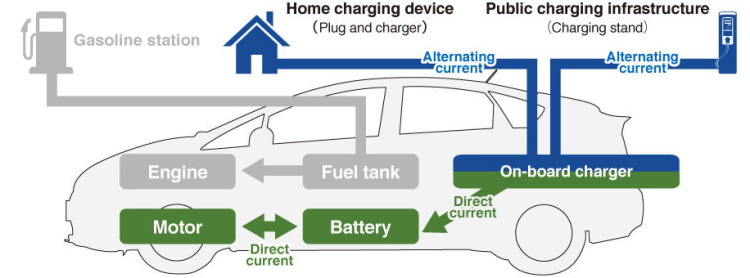

The 6.6KW 72V OBC: SK-L072V6600 lithium ion battery chargers are the key to maintaining power supply for electric vehicles. They obtain AC power from driver's house and convert it into DC to charge the battery.
Application of the 72V 96V AC DC Battery Charger
Car chargers can be used for various electric vehicles (including plug-in hybrid vehicles), ships, or devices that require AC to DC charging.
Personal electric vehicle: used to charge electric vehicles, trucks, and motorcycles.
Public transportation: used to charge electric buses and trains.
Industrial applications: used to charge electric forklifts, golf carts, and other industrial vehicles
