> AC / DC On Board Charger

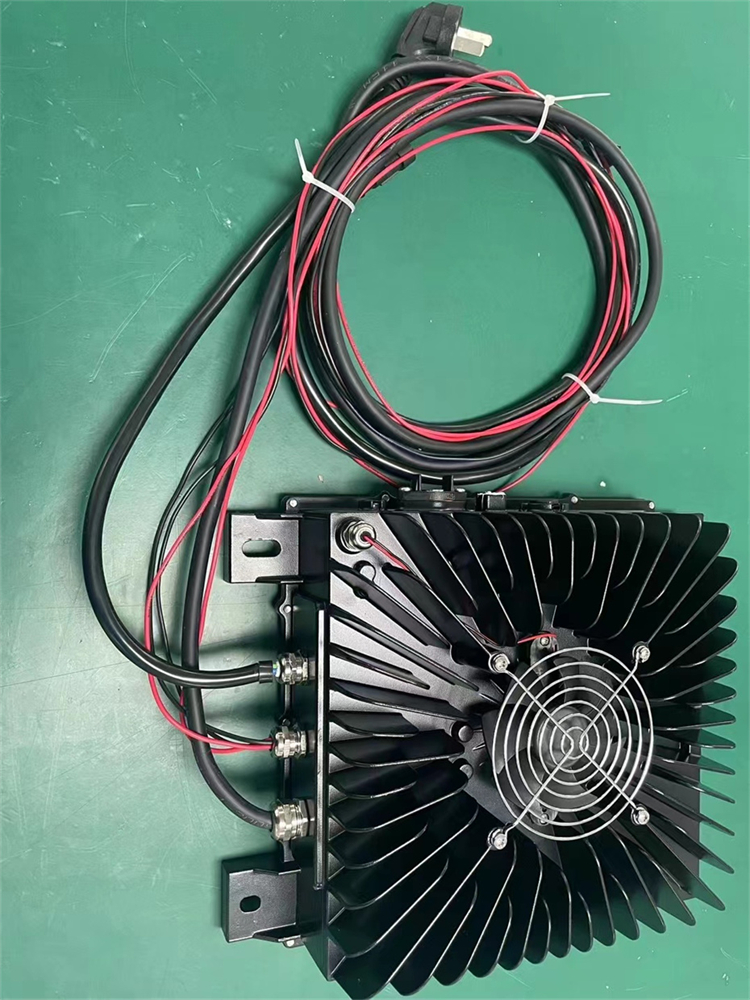

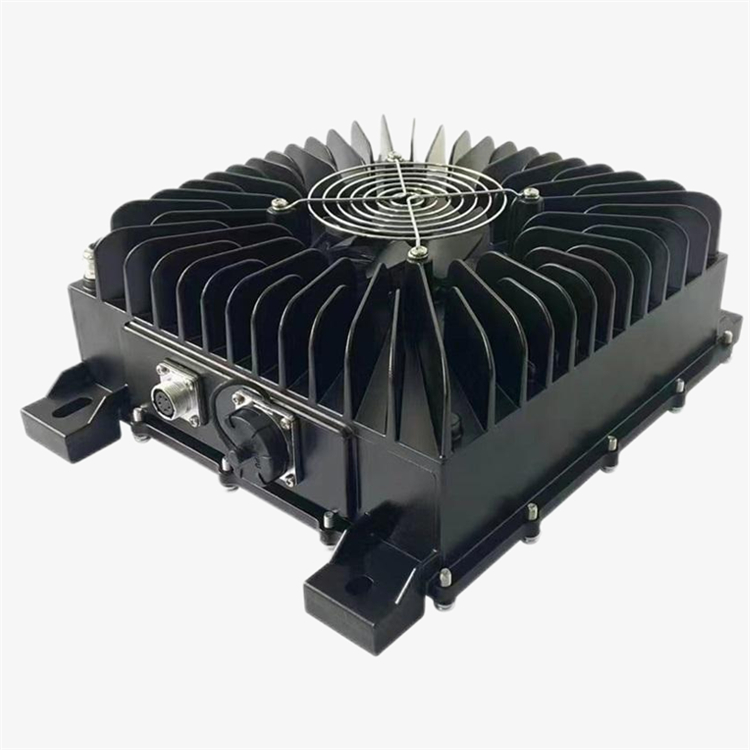

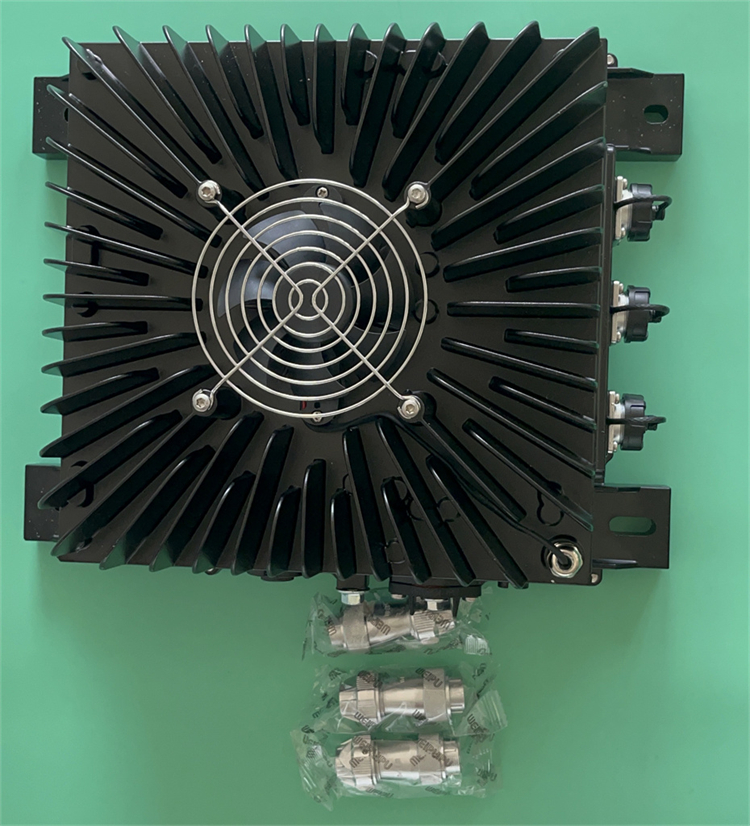

3.3KW 48V EV OBC Charger

Input Voltage: 90～265VAC /16A
Rated Power: 3.3KW
Output voltage: 0～68VDC
Output current: 0～60A
Product description: The application of the 3KW OBC 48V chargers is extensive and diverse. They are widely used in personal electric vehicles, commercial fleets, and public transportation systems. They are also commonly u
Inquiry

Product introduction

Part No	Input Voltage Range	Rated Output Power	Rated Output Voltage	Output Voltage Range	Output Current Range
SK-L072V3300	90～265VAC	3.3KW	48V DC	0～68VDC	0～60A

High Lights of 3kw obc 48v

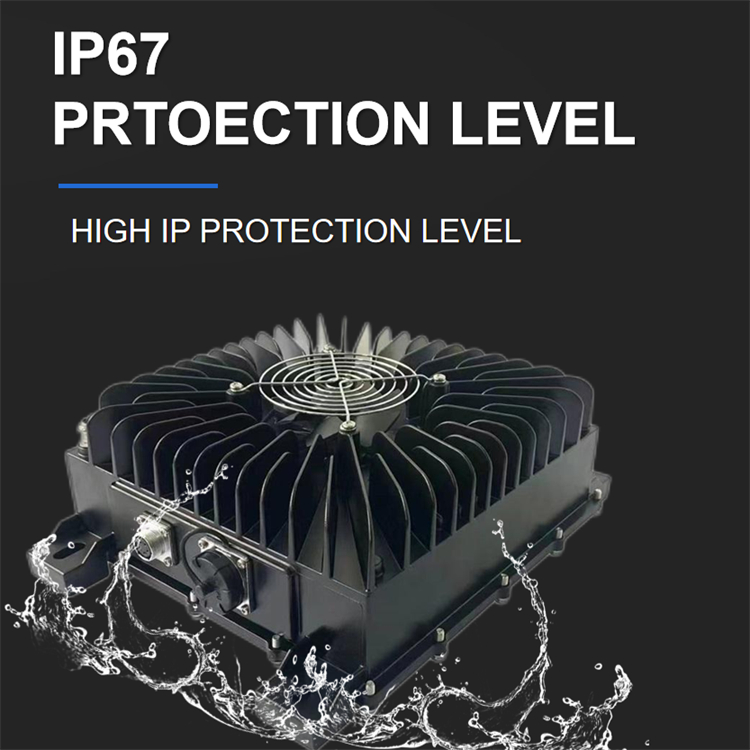

√ IP67 Level
√ Fan cooling
√CAN communication
√ Constant power and constant voltage state automatic conversion, effective saving time
√ Compact and lightweight design for ease of installation.

√ Input over-voltage/under-voltage protection

√ Output over-voltage/under-voltage protection

√ Output over-current protection

√ Output reverse connection protection

√ Over temperature protection

Basic Data

Specification	Model	SK-LXXXV3300 (SK-L048V3300)
AC Input	Phases/ Lines	1-phase;Single Phase
	Input Voltage /Current	95V - 265V AC /≤16A
	Frequency	45Hz-65Hz
DC Output	Output Power	3.3KW @ 220VAC
	Output Voltage	0～68VDC (Rated 48V)
	Output Current	0～60A
Others	Operating noise	≤60dB
	CAN BUS	Support (Baud Rate 125Kbps、250Kbps、500Kbps optional)
	Cooling Method	Fan Cooling
	Dimension	328260112
	IP Level	IP 67 (not including fans)

More specification of this 3kw obc 48v charger, please contact our sales.

Youtube video Link for this 3kw obc 48v

https://youtu.be/Jwok52UWd74

Application of 3KW OBC 48V Charger

The application of the 3KW OBC 48V chargers is extensive and diverse. They are widely used in personal electric vehicles, commercial fleets, and public transportation systems. They are also commonly used in emergency services, where fast charging is crucial for maintaining critical operations. In addition, car chargers are an indispensable part of household electric vehicle charging stations, allowing electric vehicle owners to easily and conveniently charge their vehicles at night.

48v on board charger
