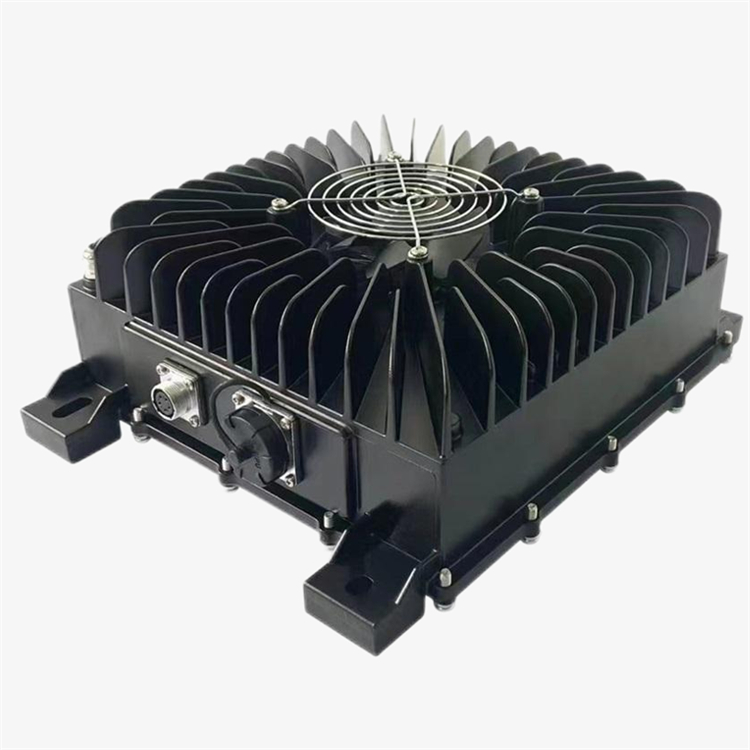

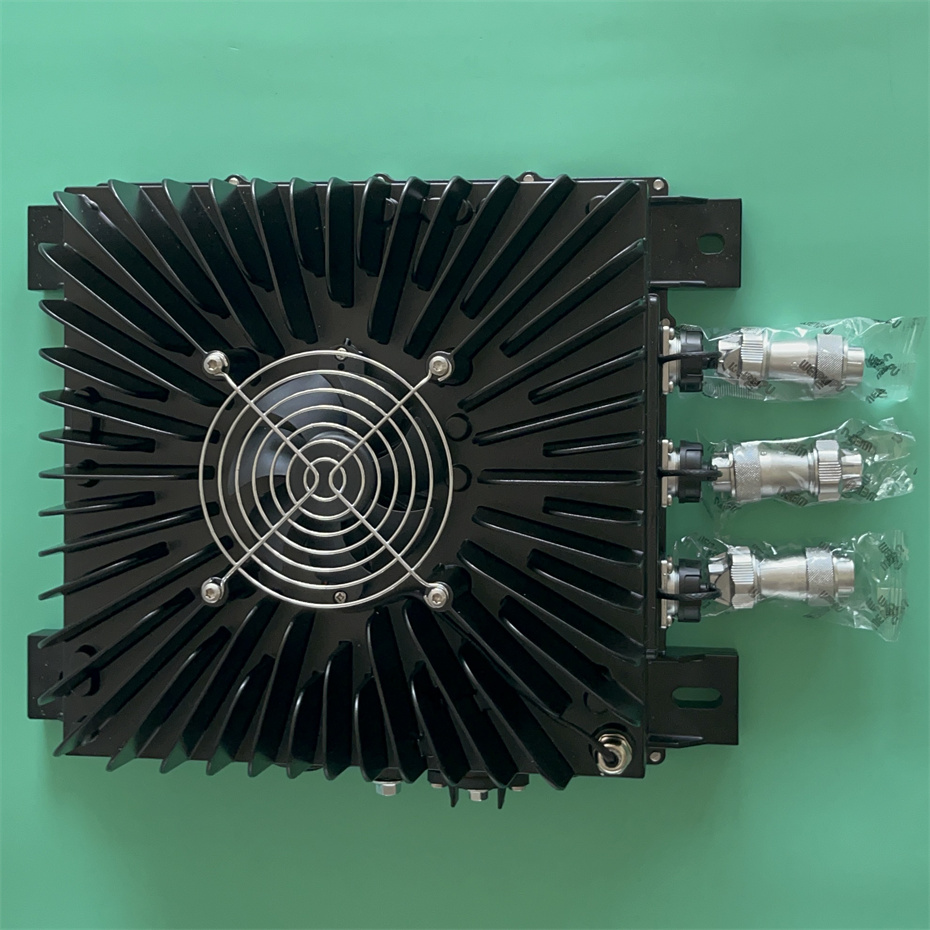

> AC / DC On Board Charger

Rated Input: 95V-265V AC /16A
Rated Power: 3.3KW
Output voltage: 0～450V DC
Output current: 0～9A
Product description: The obc 3.3kw chargers (on-board chargers) with high-quality construction and stable performance, typically designed to withstand adverse weather conditions, with an IP67 rating for high protection ag
Inquiry

Part No	Input Voltage Range	Rated Output Power	Rated Output Range	Output Voltage Range	Output Current Range
SK-L360V3300	90～265VAC	3.3KW	360V DC	0～450VDC	0～9A

√ AC to DC Conversion: converts AC power from a charging station into DC power that can be used to charge the vehicle's batteries.

√ Excellent cost-effectiveness ratio: By combining cutting-edge components into a compact design.

√ Constant power and constant voltage state automatic conversion, effective saving time

√ Compact and lightweight design for ease of installation.

√ Fan cooling

√CAN communication

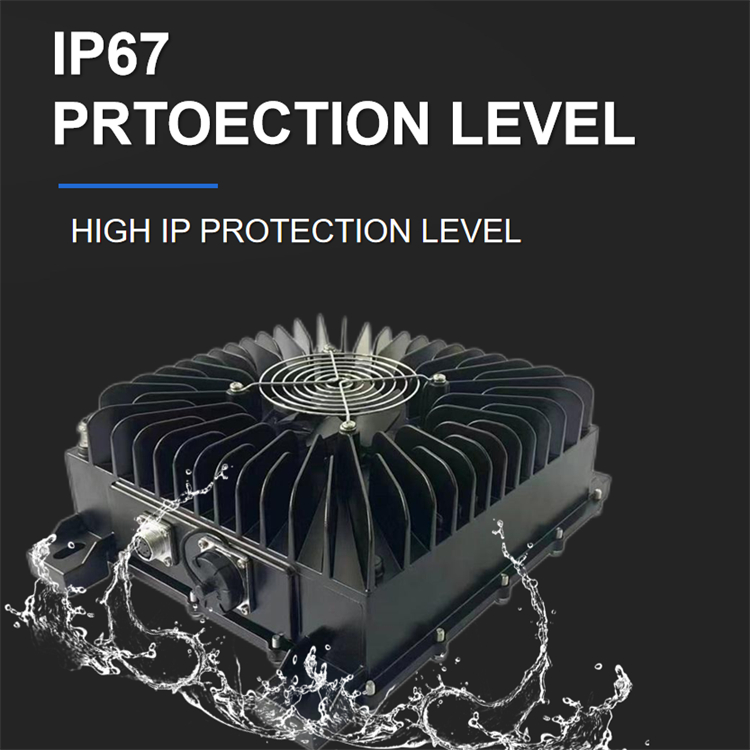

√ IP67 protection

Specification	Model	SK-LXXXV3300 (SK-L360V3300)
AC Input	Phases/ Lines	1-phase;Single Phase
	Input Voltage /Current	95V - 265V AC /≤16A
	Frequency	45Hz-65Hz
DC Output	Output Power	3.3KW @ 220VAC
	Output Voltage	0～450VDC (Rated 360V)
	Output Current	0～9A
Others	Operating noise	≤60dB
	CAN BUS	Support (Baud Rate 125Kbps、250Kbps、500Kbps optional)
	Cooling Method	Fan Cooling
	Dimension	328260112mm
	IP Level	IP 67
