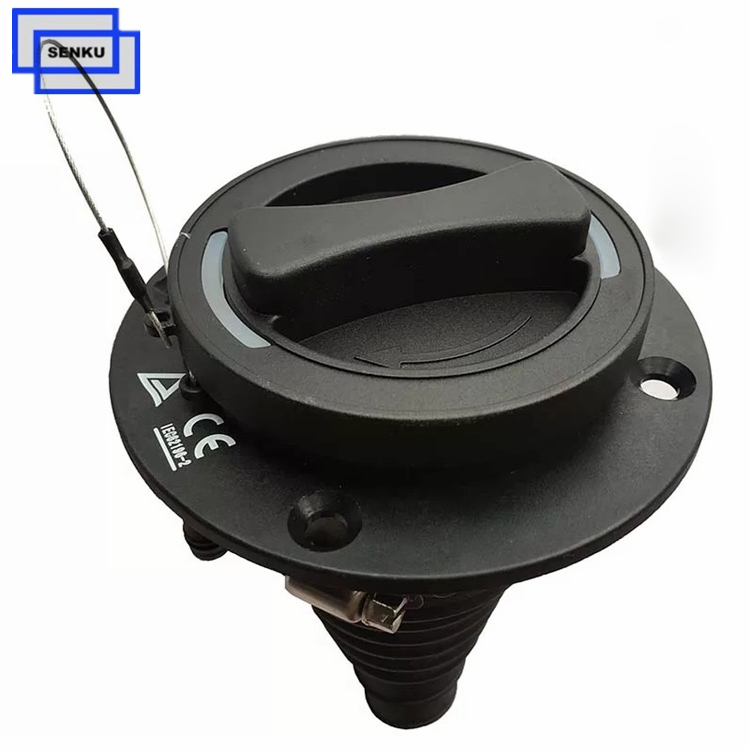

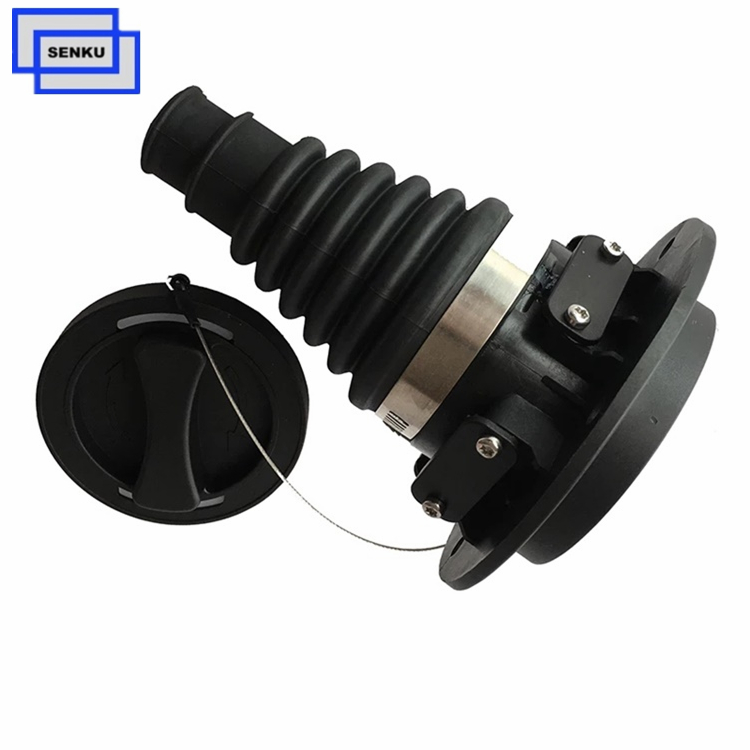

16A 415V 11KW Type 2 Car Charging Socket

Rated Current: 16A 32A 63A
Rated Voltage: 250V AC or 415V AC
Certificate: CE RHOS
IP Level: IP44
Product description: The 11KW EV type 2 socket is designed to be installed on electric vehicles as an electric vehicle charging inlet, and its sturdy quality is a good choice for your electric vehicle.
Inquiry

Product introduction

16A Type 2 Car Charging Socket 11KW

Type 2 connectors, also known as Mennekes, are the standard chosen by the European Union for electric vehicle charging stations. The 11KW EV type 2 socket is designed to be installed on electric vehicles as an electric vehicle charging inlet, and its sturdy quality is a good choice for your electric vehicle.

Key Features:

Compliant with IEC 62196-1 and IEC 62196-2 standards.

Built from flame-retardant, pressure-resistant, and durable materials.

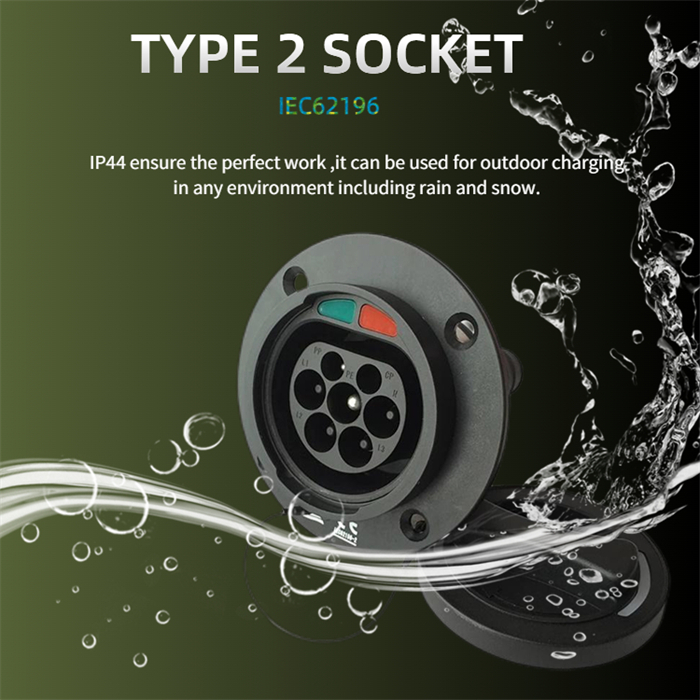

Offers excellent IP44 protection.

Operational temperature range: -30°C to +50°C.

Electrical Specifications:

Rated current: 16A, 32A, or 63A.

Voltage: 240V or 415V AC.

Insulation resistance: >1000MΩ (tested at DC500V).

Terminal temperature rise: <50K.

Withstand voltage: 2000V.

Contact resistance: Maximum 0.5mΩ.

Mechanical Specifications:

Designed for over 10,000 plug-in and removal cycles.

Insertion and extraction force: 45N to 80N.

Material Composition:

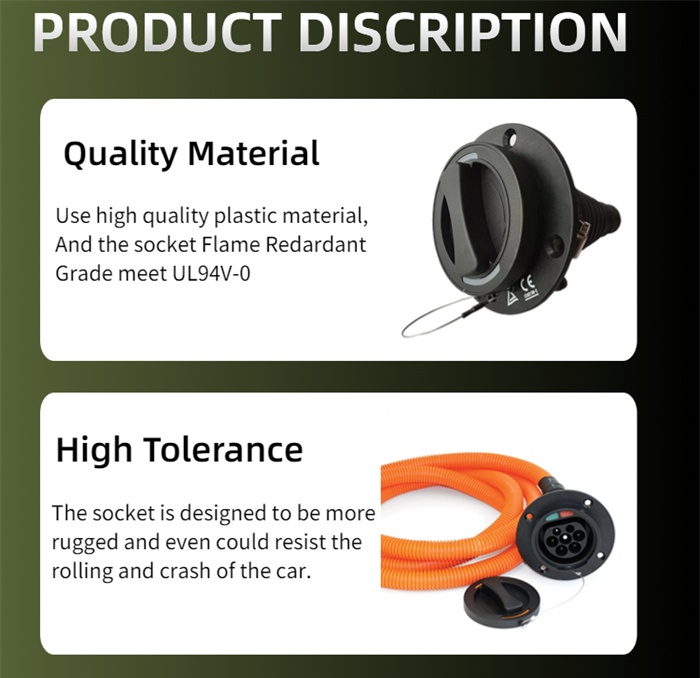

Casing: Thermoplastic, UL94 V-0 flame-retardant.

Pins: Copper alloy with silver plating.

Applications:

This EV type 2 socket suitable for Battery Electric Vehicles (BEV), Hybrid Electric Vehicles (HPEV), and electric boats, adhering to IEC 62196 standards.

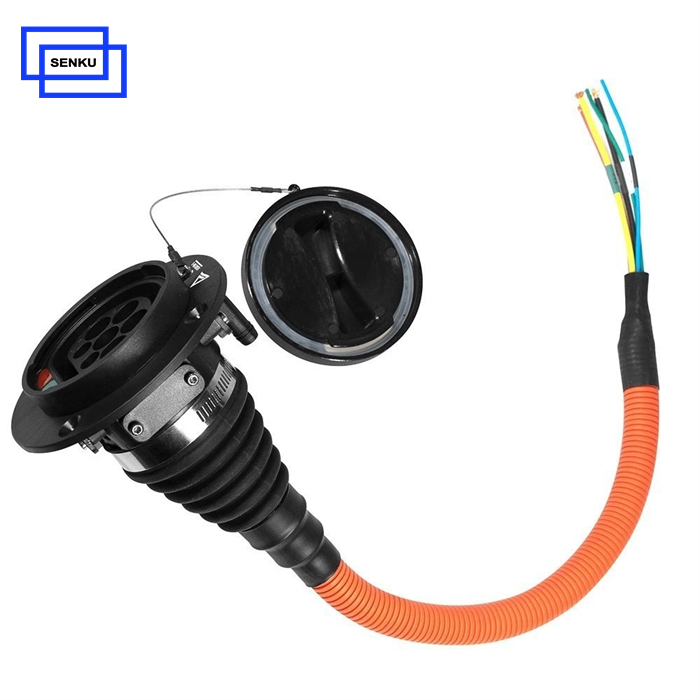

Cable Specifications:

16A 250V AC 3.5KW: 3 x 2.5mm² + 2 x 0.75mm².

16A 415V AC 11KW: 5 x 2.5mm² + 2 x 0.75mm².

32A 250V AC 7.4KW: 3 x 6mm² + 2 x 0.75mm².

32A 415V AC 22KW: 5 x 6mm² + 2 x 0.75mm².

63A 415V AC 43KW: 5 x 16mm² + 2 x 0.75mm².
