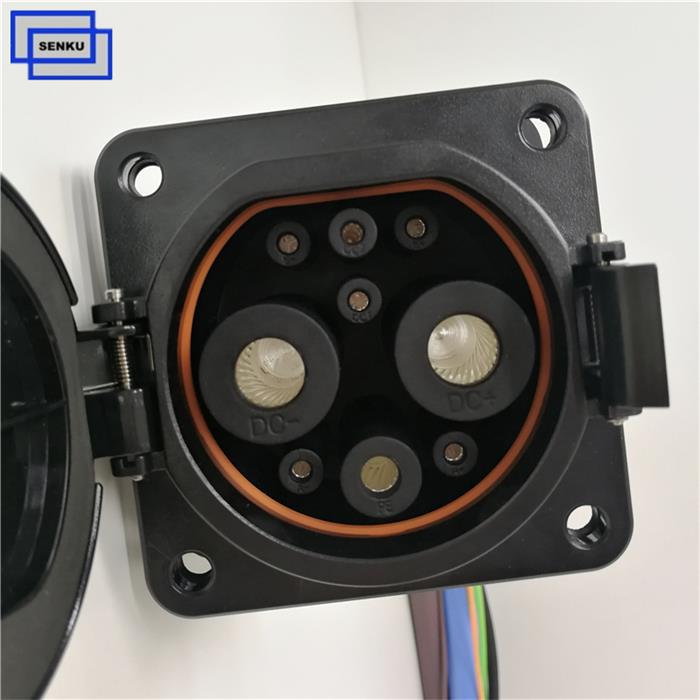

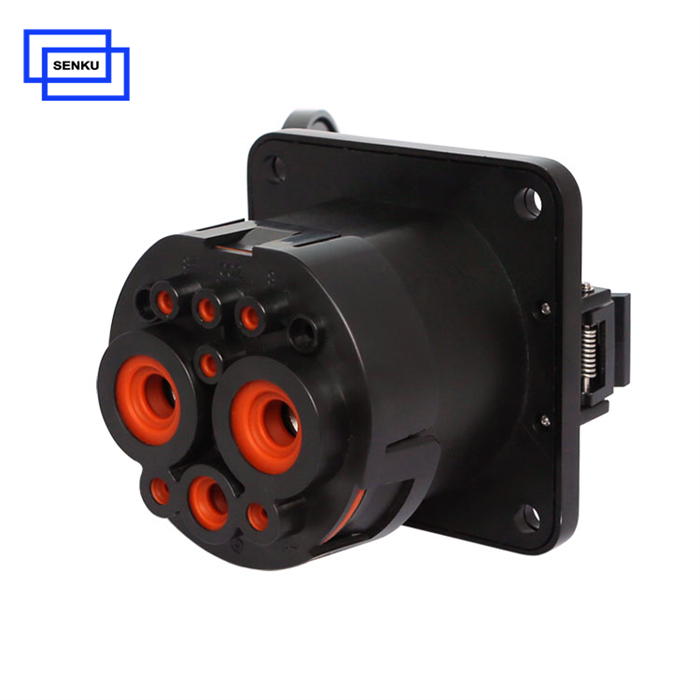

80A GBT DC Charging Ev Inlets

Rated Current: 80A 125A 150A 200A 250A 300A 350A
Rated Voltage: 1000V DC
Certificate: CE RHOS
IP Level: IP55
Product description: Senku SK-GBS-DC series 80A GBT DC Charging EV Inlets are mounted on electric vehicles and enable DC charging when paired with a compatible DC charging gun. These products comply to GB/T 20234.3 and Ro
Inquiry

Product introduction

Senku 80A GBT DC Charging EV Inlets - Supplier, manufacturer, factory

Rated current:80A, 125A, 200A, 250A, 350A

Rated voltage: 750V/1000V

Insulation resistance: >2000MΩ(DC1000V)

Pins temperature rise:<50K

Withstand voltage: 4500V (DC+/DC-/PE)

Contact impedance: 0.5mΩMax

Shell material: thermoplastics, flame retardant grade UL94-0

Contact-pins: Copper alloy, silver-plated

Operating temperature: -30℃~+50℃

Mechanical life: no-load plug>10000times

The GB/T 27930 charging standard, created in China for cable and conductive charging, applies to both electric vehicles (EVs) and hybrid electric vehicles (HEVs). This national standard, known as Guobiao (GB), was released by the China Electro-technical Council (CEC).
