> Ev Charging Socket

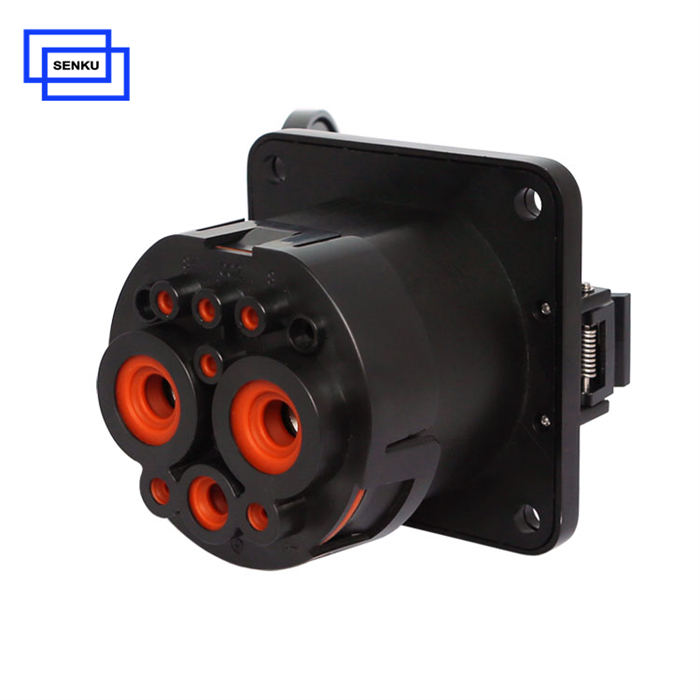

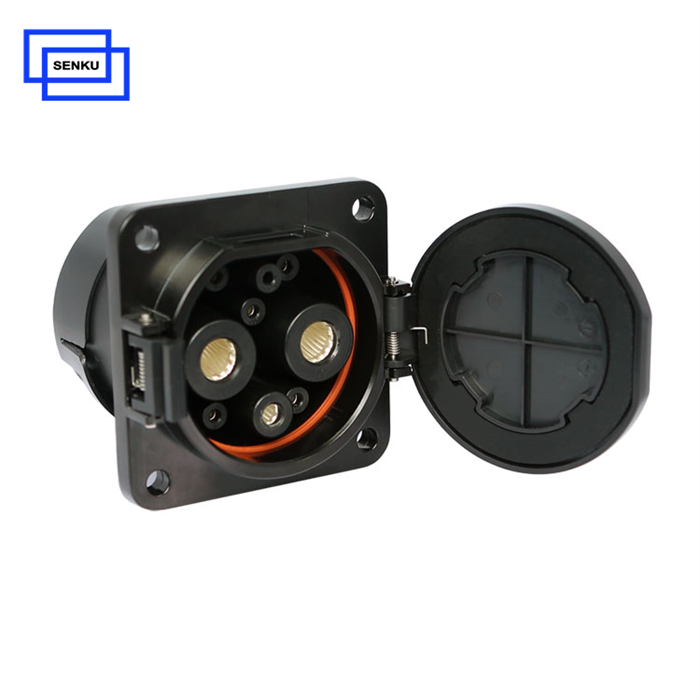

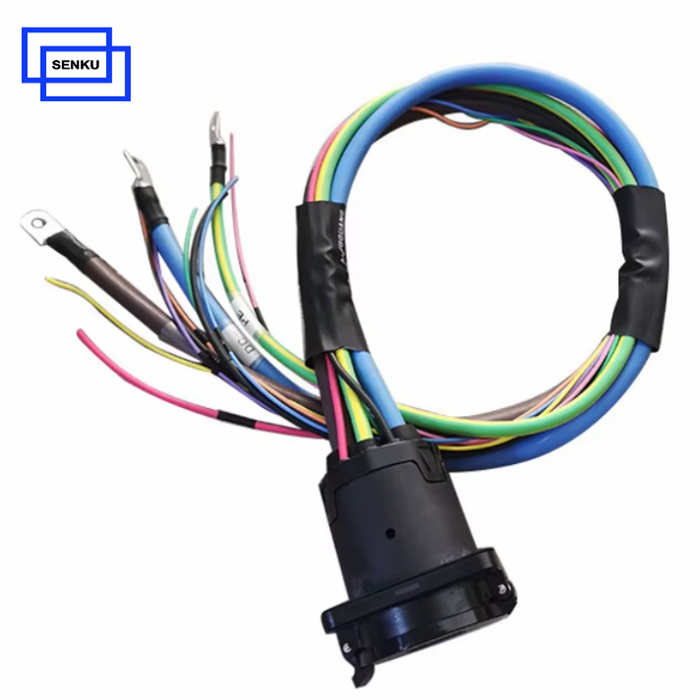

125A GBT Electric Car Charging Inlet
- Rated Current: 80A 125A 150A 200A 250A 300A 350A
- Rated Voltage: 1000V DC
- Certificate: CE RHOS
- IP Level: IP55
- Product description: The GB/T DC charging socket adheres to the GB/T 20234.3-2015 standard, which is the official charging interface standard in China. This ensures compatibility with all EVs that use the GB/T charging pr
Product introduction
China 20234 Standard 125A GBT Electric Car Charging Inlet - Supplier, manufacturer, factory
The GB/T DC charging socket adheres to the GB/T 20234.3-2015 standard, which is the official charging interface standard in China. This ensures compatibility with all EVs that use the GB/T charging protocol.
Electrical Specifications
Rated current: 80A 125A 200A 250A 300A 350A
Operating voltage:750V or 1000V DC
Material Composition
Casing: Thermoplastic, UL94 V-0 flame-retardant
Pins: Copper alloy with silver plating
Mechanical Specifications
≥ 10000 insertion and extraction cycles
Operatingn force between 45N and 80N
Provides excellent protection at IP54 level
Operating temperature: -30°C to +50°C
Main Features
The GB/T DC charging electric car charging inlet is constructed with high-quality materials to withstand repeated use. Its rugged construction ensures long-term durability in demanding environments, making it a reliable component for any EV charging infrastructure.
