> AC / DC On Board Charger

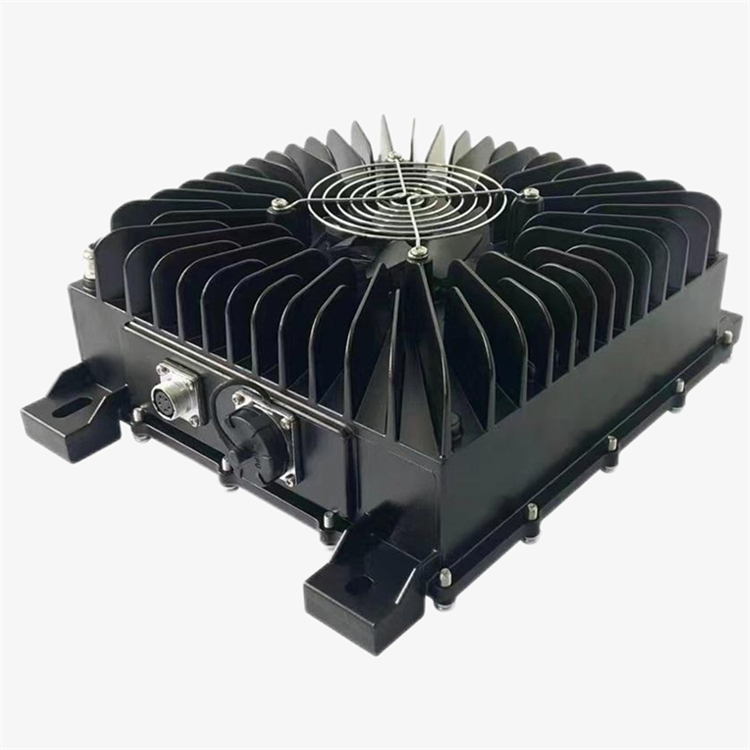

3.3KW Series EV OBC Charger

Input Voltage: 90～265VAC /16A
Rated Power: 3.3KW
Output voltage: Subject to Battery Voltage
IP Level: IP 67
Product description: 3.3kw OBC Chargers are widely used in electric cars, trucks, and motorcycles, as well as public transportation vehicles such as electric buses and trains. The industrial applications of 3.3kw OBC Char
Inquiry

Product introduction

Model list of 3.3KW SK-LXXXV3300 Series OBC Charger

Rated Output	Output Voltage Range	Output Current Range	Charger Model	*Dimension (LWH)*
24V DC 100A	0～34V DC	0～100A	SK-L024V3300	328260112mm
48V DC 68A	0～68V DC	0～60A	SK-L048V3300	328260112mm
72V DC 45A	0～95V DC	0～45A	SK-L072V3300	328260112mm
108V DC 30A	0～130V DC	0～30A	SK-L108V3300	328260112mm
144V DC 22A	0～180V DC	0～22A	SK-L144V3300	328260112mm
360V DC 9A	0～450V DC	0～9A	SK-L360V3300	328260112mm
540V DC 6A	0～700V DC	0～6A	SK-L540V3300	328260112mm

More specification of this 3.3KW OBC charger, please contact our sales.

Youtube video Link for this 3kw obc charger

https://youtu.be/Jwok52UWd74

Application of 3.3 kw OBC charger

On-board charger (OBC) is a kind of power electronic equipment in electric cars, which converts AC power from external power source (such as residential socket or AC charging station) into DC power to charge vehicle battery pack.

The 3.3KW OBC Charger applications of an electric vehicle onboard charger are widespread and include personal electric vehicles like cars, trucks, and motorcycles, as well as public transportation like electric buses and trains. Industrial applications for electric vehicle onboard chargers include charging electric forklifts, golf carts, and other industrial vehicles. Overall, electric vehicle onboard chargers are a critical component in the growing electric vehicle industry and will continue to play a significant role in the future of transportation.
