300A Liquid Combo 2 EV Charging Cable
- Rated Current: 300A
- Rated Voltage: 1000V DC
- Certificate: TUV CE RHOS
- IP Level: IP55
- Product description: The CCS plug and cable of the electric vehicle charger used in the 300A liquid high-power electric vehicle charging system produced by SENKU have undergone performance tests such as high temperature r
Product introduction

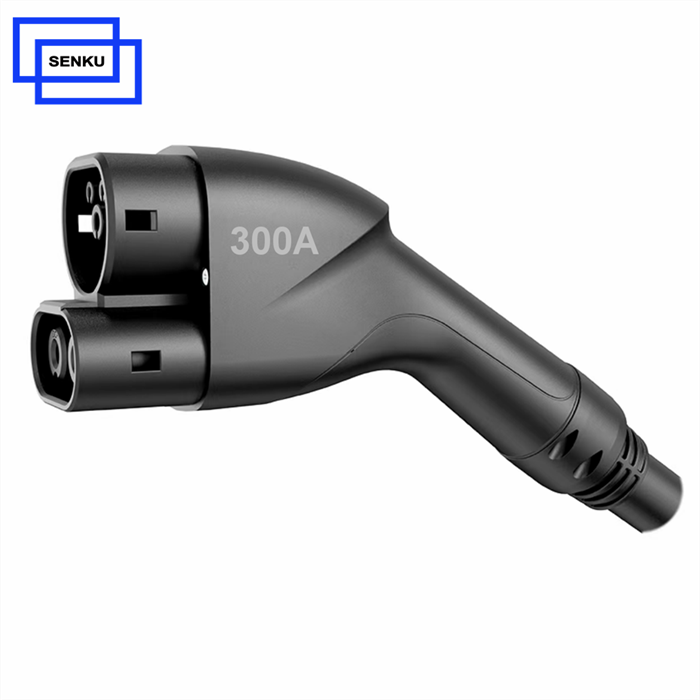

300A 1000V DC High Power Charging (HPC) CCS2 Plug
The CCS2 plug and cable of the electric vehicle charger used in the 300A liquid high-power electric vehicle charging system produced by SENKU have undergone performance tests such as high temperature resistance, corrosion resistance, climate resistance, and explosion resistance. It can ensure the safety of the product and customers can use it with confidence.
| Electric Performance | |
| Rated current | 300A |
| Operate voltage | 1000V DC |
| Insulation resistance | >2000MΩ (DC1000V) |
| Terminal temperature rise. | <50K |
| Withstand Voltage | 3000V |
| Contact Resistance | 0.5 megohm |
| Mechanical life | no-load plug in / plug out > 10000 times |
| Materia | Thermoplastic, Flame retardant grade UL94-0; |
| Pin: Cooper alloy,sliver + thermoplastic on the top | |
| Operation Temp. | -30℃ ~ + 50℃ |
| IP protection class | IP 55 |
| Standard | IEC 62196-1 IEC 62196-3 |
| Certifications | TUV CE |

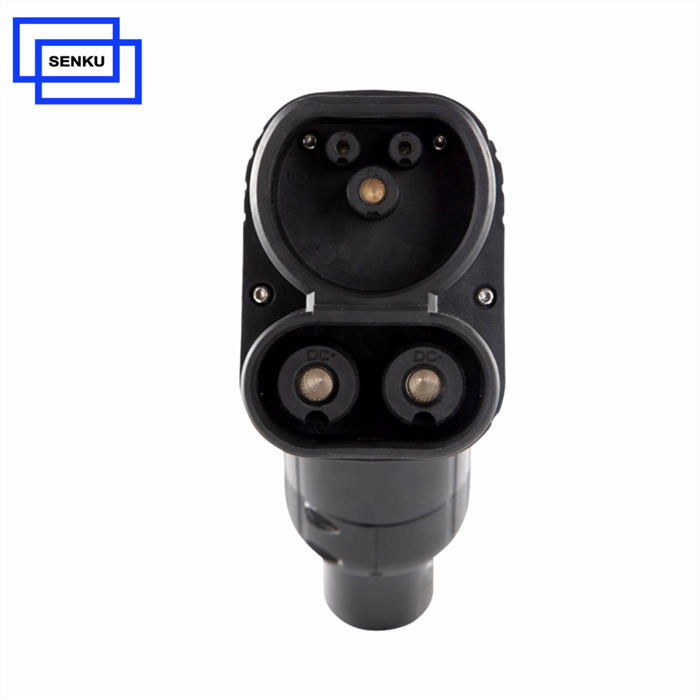

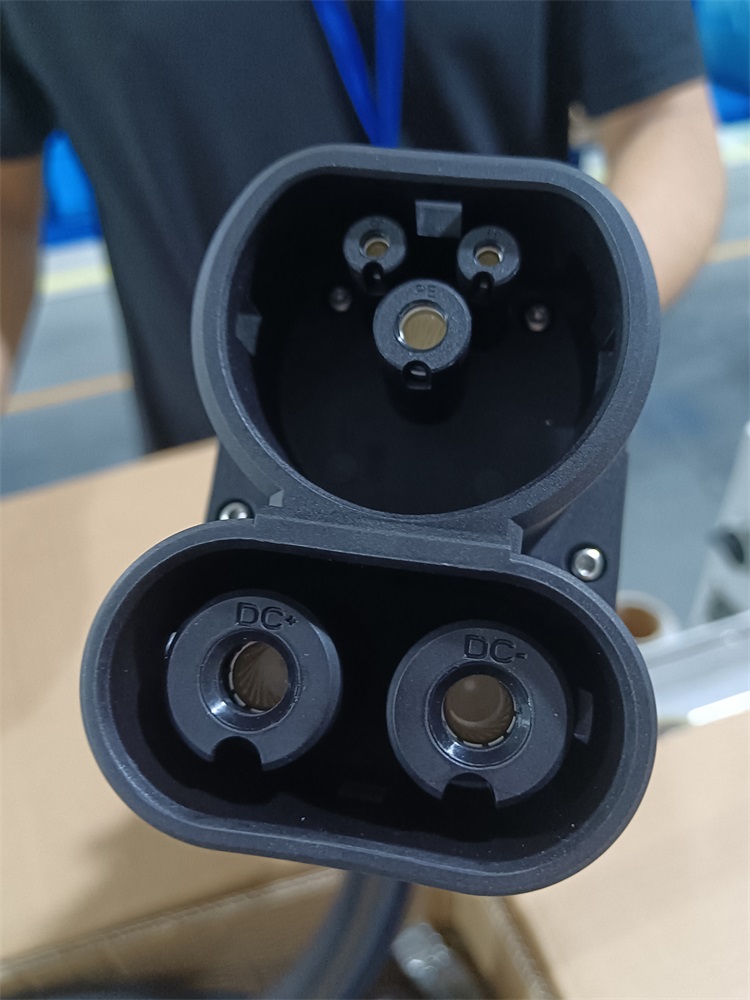

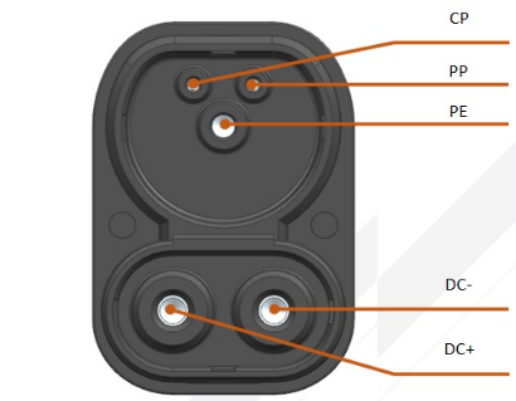

The CCS2 EV charging plug contains five contact pins: two small contacts and three large contacts.
The top two small contacts for signals, the middle pin is used for grounding, and the bottom two pins are used for power supply.
Proximity pilot (PP): pre-insertion signalling
Control pilot (CP): post-insertion signalling
Protective earth (PE): full-current protective earthing
Power supply positive (DC+)
The 300A CCS2 plug shall be protected with bubble bags, then loaded into cartons, and then palletized; The carton pattern or packing mark can be done according to the customer's requirements
