500A Liquid Combo 2 EV Charging Cable

Rated Current: 500A
Rated Voltage: 1000V DC
Certificate: TUV CE RHOS
IP Level: IP55
Product description: The 500A high-power liquid cooled CCS2 charging system is a dedicated circulation channel set up between the cable and the CCS2 charging connector. Cooling medium is added to the channel, and then the
Inquiry

Product introduction

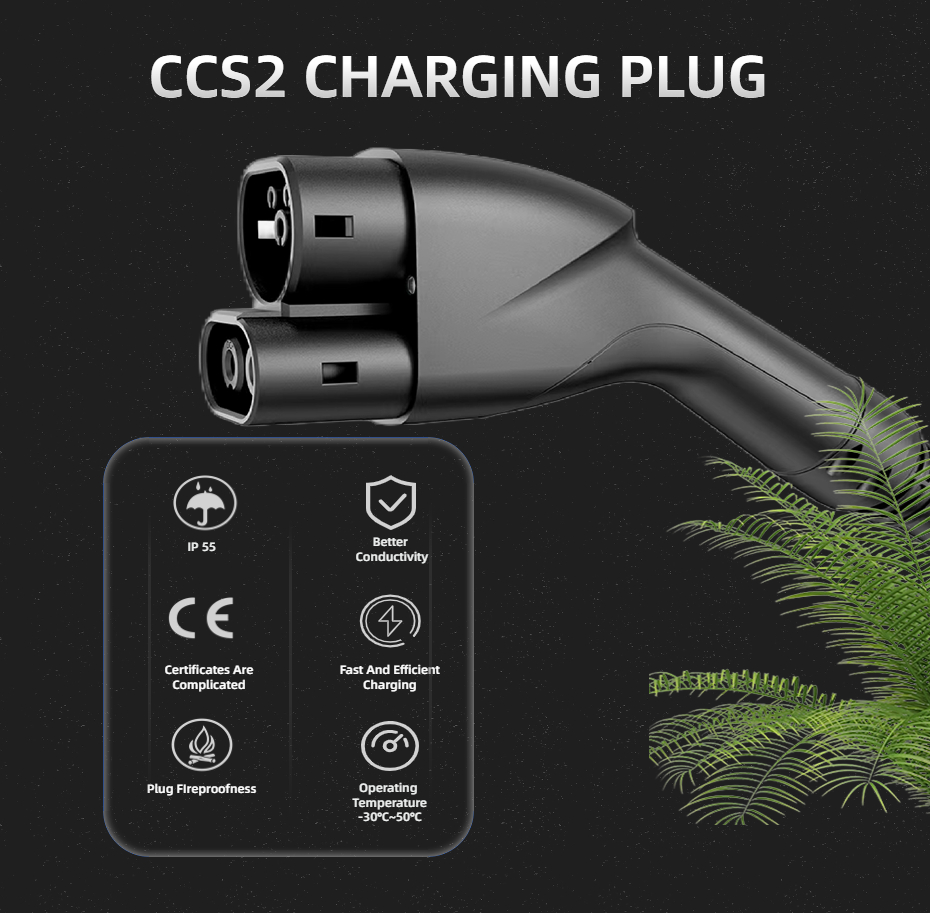

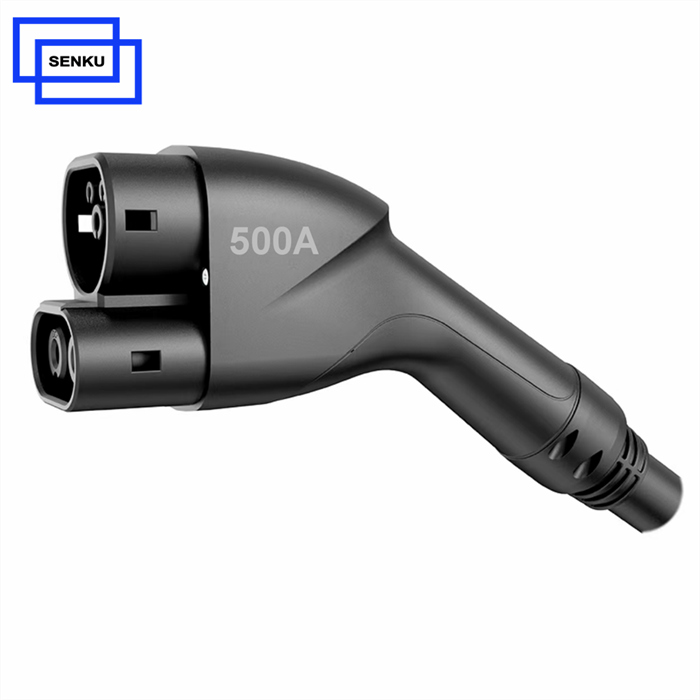

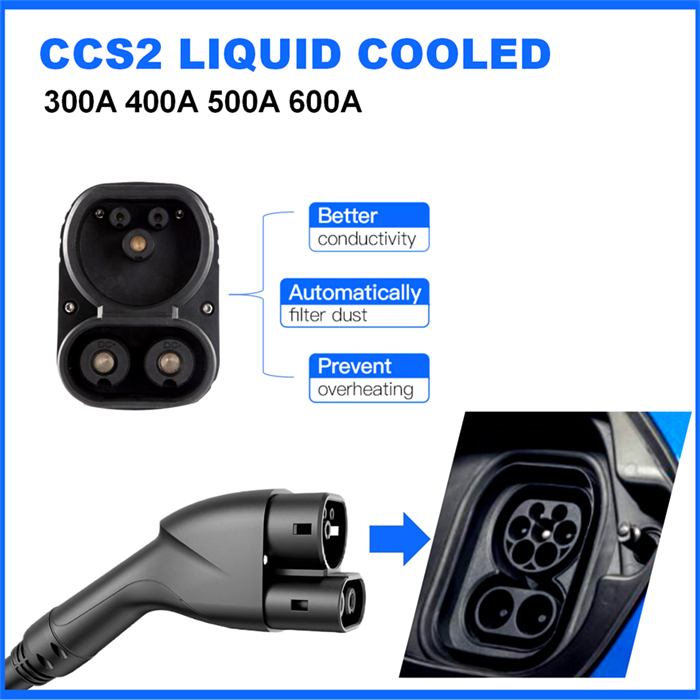

500A Liquid Combo 2 EV Charging Cable

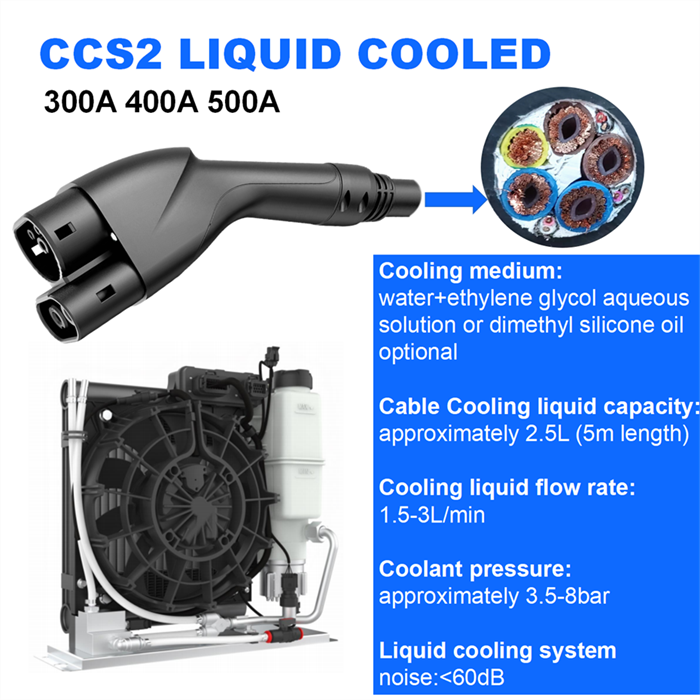

The 500A high-power liquid cooled CCS2 charging system is a dedicated circulation channel set up between the cable and the CCS2 charging connector. Cooling medium is added to the channel, and then the liquid is circulated through the power pump for cooling and heat dissipation.
As a provider of high-power liquid cooling charging system solutions, Senku collaborates with automotive manufacturers to develop customized products that can quickly respond to customer needs.

SENKU CCS2 EV CHARGING

Electric Performance
Rated current	500A
Operate voltage	1000V DC
Insulation resistance	>2000MΩ (DC1000V)
Terminal temperature rise.	<50K
Withstand Voltage	3000V
Contact Resistance	0.5 megohm
Mechanical life	no-load plug in / plug out > 10000 times
Materia	Thermoplastic, Flame retardant grade UL94-0;
Materia	Pin: Cooper alloy,sliver + thermoplastic on the top
Operation Temp.	-30℃ ~ + 50℃
IP protection class	IP 55
Standard	IEC 62196-1 IEC 62196-3
Certifications	TUV CE
