> Ev Charging Socket

200A Combo Ccs Ev Charging Inlet

Rated: 80A 125A 150A 200A 250A 300A 350Aoptional
Certificate: CE
IP Level: IP55
Mechanical lifespan: Plug and unplug ≥10000 times
Product description: The SENKU CCS2 Charging Socket is engineered to support both AC slow charging and DC fast charging, providing drivers with the flexibility they need for a variety of charging environments. This dual-f
Inquiry

Product introduction

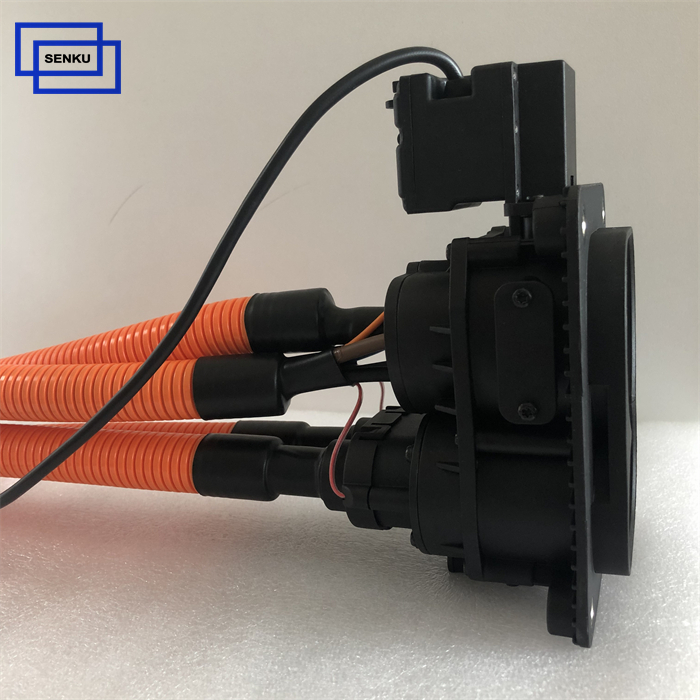

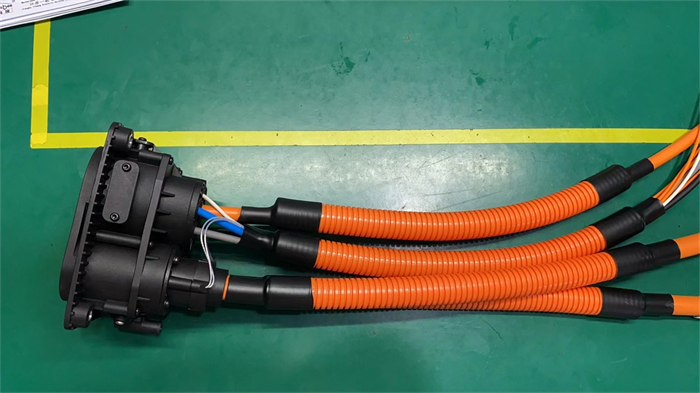

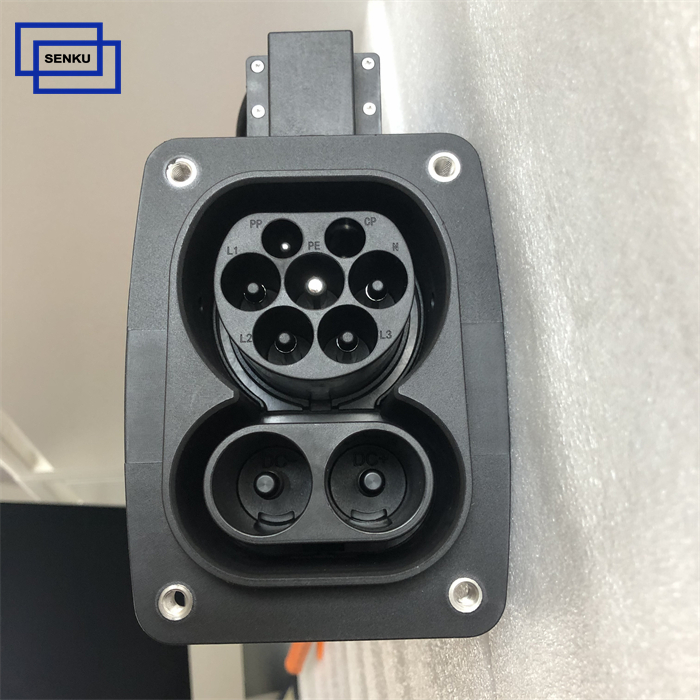

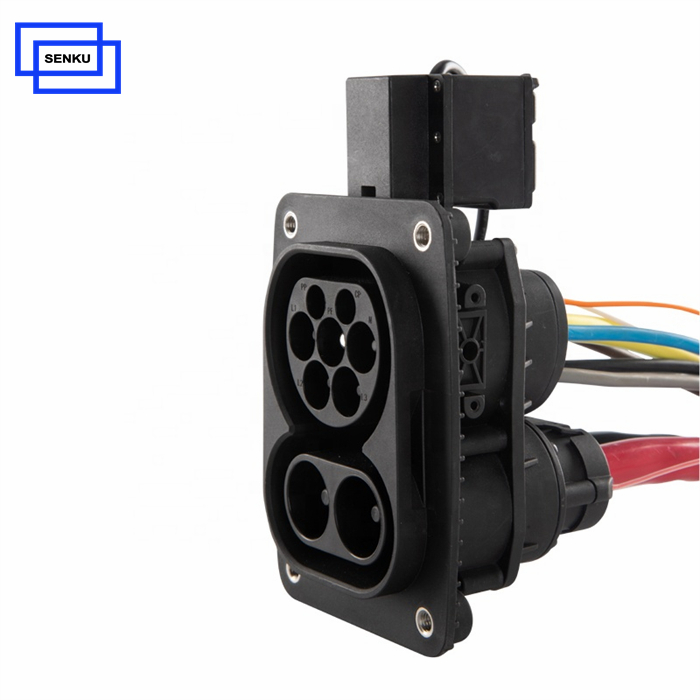

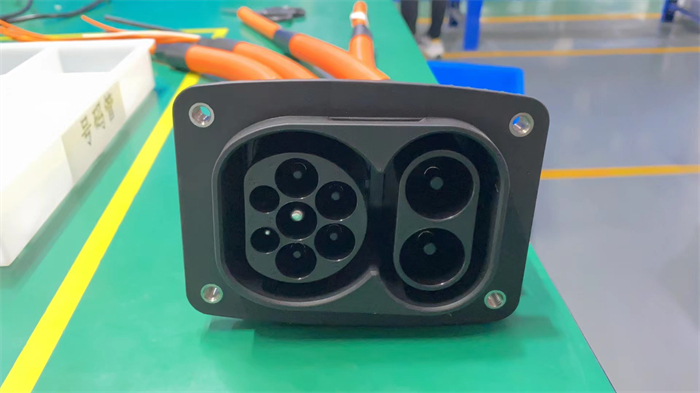

Charging 200A Combo CCS Ev Charging Inlet

The SENKU 200A combo ccs ev charging inlet is designed to be user-friendly and universally compatible with the increasing range of electric vehicle models in the global market. By combining AC and DC charging standards in one socket, this inlet provides ultimate flexibility for vehicle owners and simplifies charging infrastructure for operators.

The EV charging socket is designed to comply with international charging standards (such as IEC 62196), ensuring interoperability across multiple regions and charger types. It simplifies vehicle design by offering a single interface for all charging modes.

Widely adopted in Europe and Australia, the CCS2 socket is becoming the global standard, making it the ideal choice for vehicle manufacturers and charging station operators aiming for broad compatibility.

200A Combo Ccs Ev Charging Inlet

Ccs Ev Charging Inlet

Electric Performance.
Rated current	32A AC and 200A DC
Operate voltage	240V / 480V AC and 1000V DC
Insulation resistance	>2000MΩ (DC1000V)
Terminal temperature rise.	<50K
Mechanical life	no-load plug in / plug out > 10000 times
Materia	Thermoplastic, Flame retardant grade UL94-0;
Materia	Pin: Cooper alloy,sliver + thermoplastic on the top
Operation Temp.	-30℃ ~ + 50℃
IP protection class	IP55
Standard	IEC /EN 62196-1,IEC /EN 62196-3
Certifications	TUV CE

The SENKU CCS2 ev charging inlet adheres to the strict standards of the Combined Charging System (CCS), which is widely adopted across Europe, Australia, and other regions around the world. As a Type 2 inlet, this socket is compatible with a growing number of global EV charging networks and infrastructure. The CCS2 system has rapidly become the standard in these regions, making the SENKU CCS2 Charging Socket a reliable and future-proof solution for vehicle manufacturers and drivers alike.

The SENKU CCS2 Charging Socket is engineered to support both AC slow charging and DC fast charging, providing drivers with the flexibility they need for a variety of charging environments. This dual-functionality allows for a seamless charging experience whether you’re charging at home with an AC charger or on the go at a DC fast charging station.

AC Charging: The socket supports single-phase and three-phase AC charging, making it suitable for residential, workplace, and public installations. This allows EV owners to use regular home chargers or public AC charging stations to top up their batteries in a convenient and reliable way.
DC Fast Charging: For those in need of a quick recharge, the CCS2 socket enables high-power DC charging, significantly reducing charging times. This is particularly valuable for long trips or high-demand scenarios, providing fast and efficient power delivery to keep drivers on the road.
