16A 32A AC Type 2 EV Charging Inlet

Rated Current: 16A 32A 63A
Rated Voltage: 250V AC or 415V AC
Certificate: CE RHOS
IP Level: IP44
Product description: The Type 2 charging connector, often referred to as the "Mennekes connector," is a versatile seven-pin connector that supports both single-phase AC charging at up to 32 amps and three-phase AC chargin
Inquiry

Product introduction

16A 32A 63A AC Type 2 EV Charging Connectors 3.5KW 7KW 11KW 22KW 43KW

The Type 2 charging connector, often referred to as the "Mennekes connector," is a versatile seven-pin connector that supports both single-phase AC charging at up to 32 amps and three-phase AC charging at up to 63 amps. With a maximum voltage of 415 volts, this connector can deliver up to 43 kW of power.

Main Parameter
Key Features	Complies with IEC 62196-1 and IEC 62196-2 standard
	Made of reliable, flame-retardant, pressure resistant, and wear-resistant materials
	Provides excellent protection at IP44 level
	Operating temperature: -30°C to +50°C
Mechanical Specifications	Can withstand over 10000 insertion and extraction cycles
Mechanical Specifications	The insertion and extraction force between 45N and 80N
Electrical Specifications	Rated current: 16A or 32A or 63A
	Operating voltage: 240V or 415V AC
	Insulation resistance: > 1000MΩ (tested at DC500V)
	Terminal temperature rise: < 50K
	Withstand voltage: 2000V
	Contact resistance: Max 0.5mΩ
Material Composition	Casing: Thermoplastic, UL94 V-0 flame-retardant
Material Composition	Pins: Copper alloy with silver plating
Application	Suitable for various Battery Electric Vehicles (BEV) and Hybrid Electric Vehicles (HPEV) and Electric boats design according to the IEC 62196 Standard
Cable Specifications	16A 250V AC 3.5KW: 3 x 2.5mm² + 2 x 0.75mm² 16A 415V AC 11KW: 5 x 2.5mm² + 2 x 0.75mm² 32A 250V AC 7.4KW: 3 x 6mm² + 2 x 0.75mm² 32A 415V AC 22KW: 5 x 6mm² + 2 x 0.75mm² 63A 415V AC 43KW: 5 x 16mm² + 2 x 0.75mm²

16A 32A 63A AC Type 2 EV Charging Connectors 3.5KW 7KW 11KW 22KW 43KW

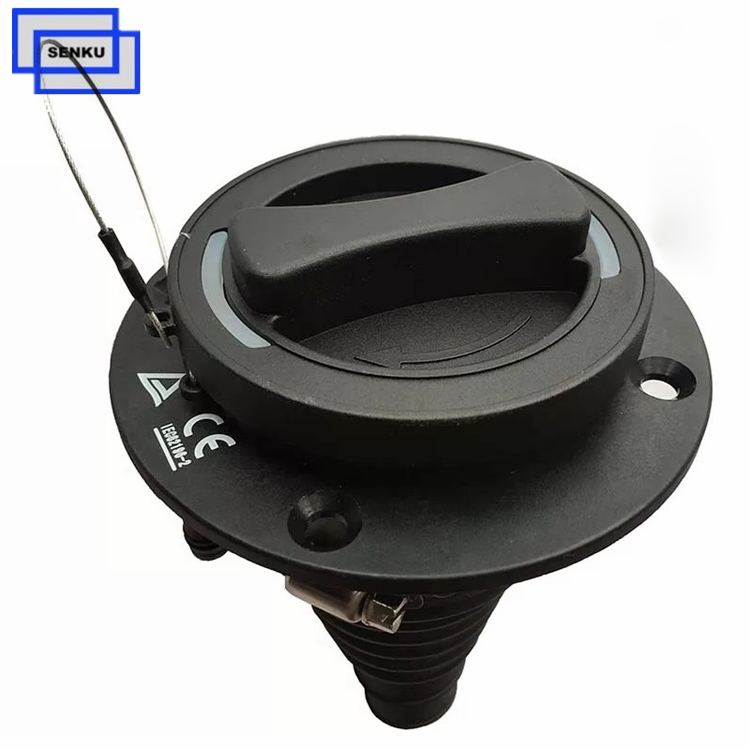

16a type 2 charging connector

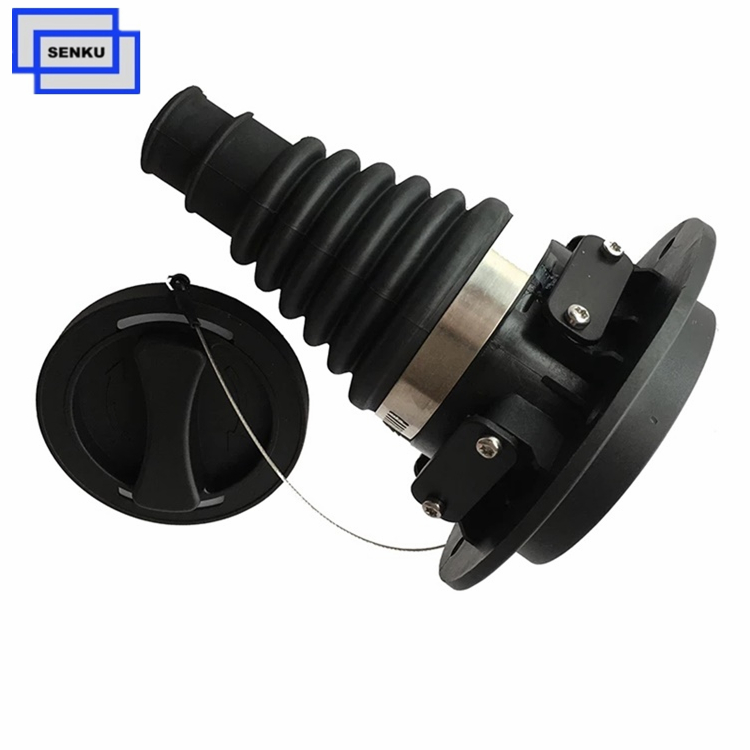

32a type 2 charging connectors

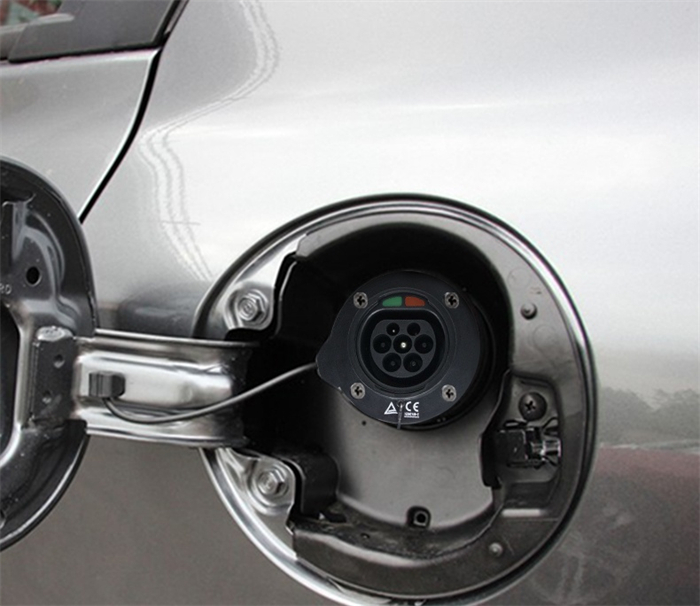

The Type 2 charging socket is built to meet the requirements of Type 2 electric vehicles, making it a perfect fit for a wide range of passenger cars, electric Van, electric tricycle, electric boat etc... It ensures safe, fast, and high efficient charging.

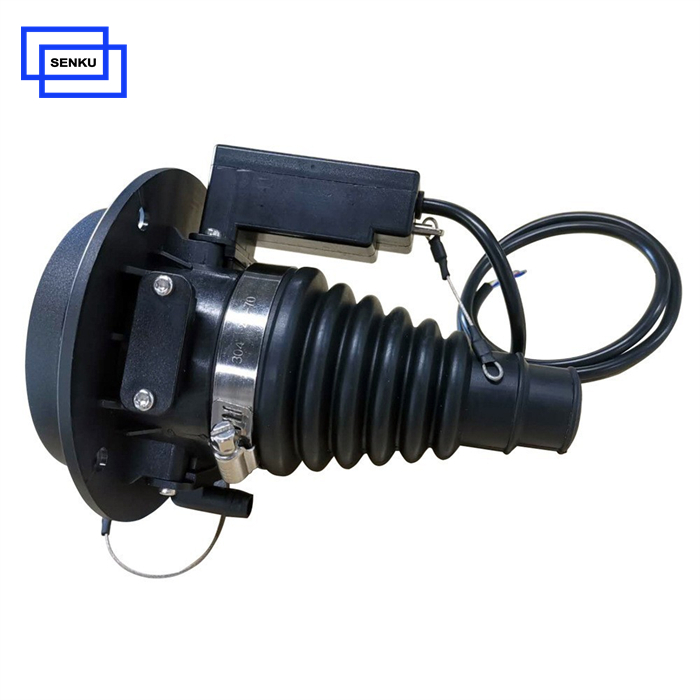

16A 32a charging connectors

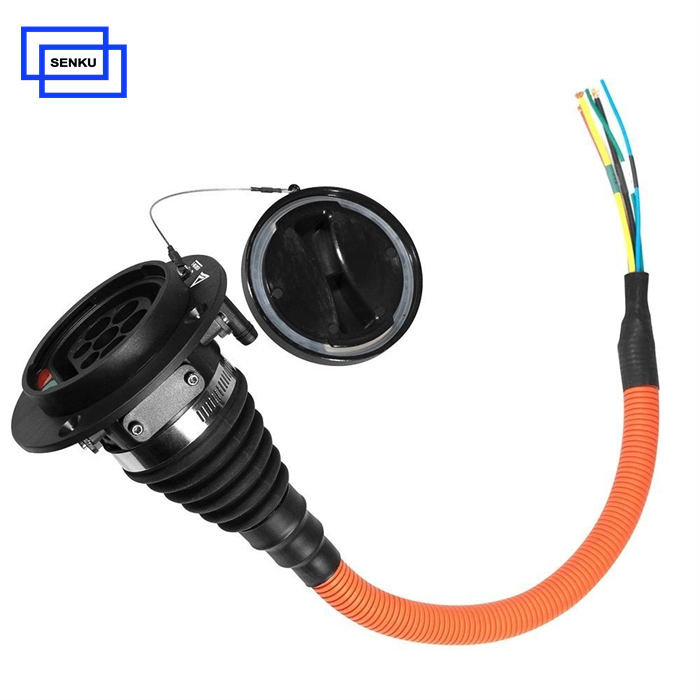

type 2 charging connectors

Benefits of the Type 2 Connector:

Safety and Efficiency:

The Type 2 charging connectors ensures safe charging by allowing the vehicle to communicate with the charging station through CP (Control Pilot) and PP (Proximity Pilot) signals to regulate the charging current.

Automatic Locking System:

One of its key feature of the type 2 connector is the locking mechanism, which engages a mechanical or electromagnetic lock during charging, ensuring a secure connection and preventing accidental disconnection. This feature is particularly beneficial when using public charging stations.

Compatibility and Adapters:

While Type 2 EV charging sockets is the standard in Europe, but there are chargers that use other charging plug types, like Type 1 or GBT. In these cases, EV charging adapters allow EVs with Type 2 sockets to charge easily at different chargers. Such as: type 1 to type 2 adapter, GBT to type 2 adapter.
