> AC / DC On Board Charger

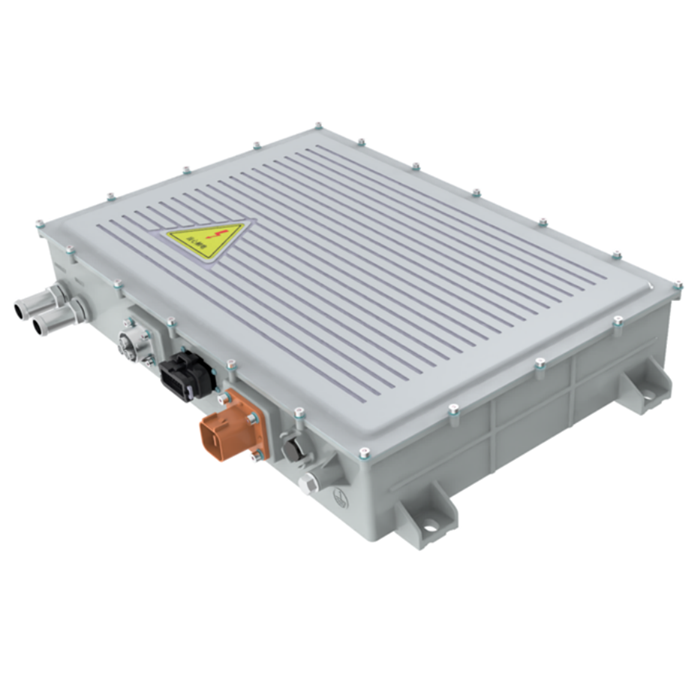

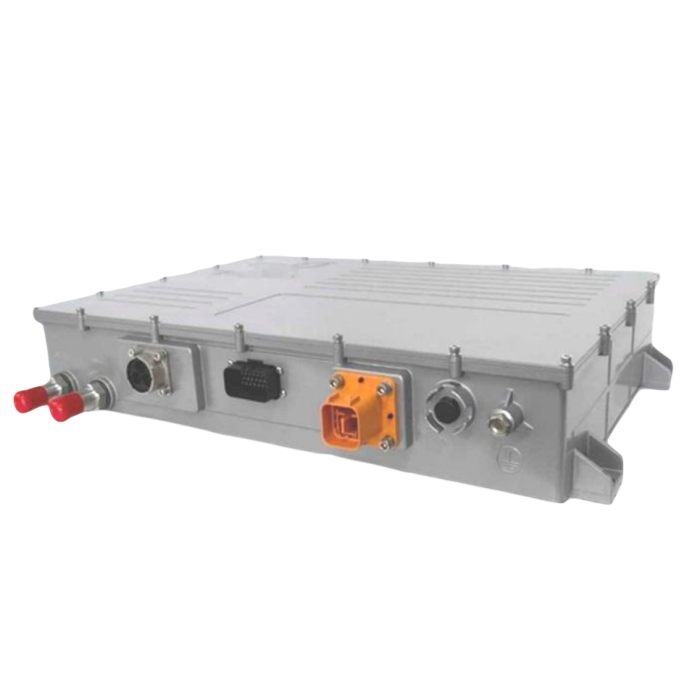

3Phase 20KW 500V 600V 700V On Board Charger

Input : 3phase 152～456VAC /≤32A
Rated Power: 20 KW
Output voltage: 0～720VDC
Output current: 0～36A
Product description: 2KW 60v lithium battery charger has been designed and optimized to maintain strong performance in harsh tropical conditions. The battery charger integrates an AC to DC converter inside the cabinet, al
Inquiry

Product introduction

Part No	Input Voltage Range	Rated Output Power	Rated Output Voltage	Output Voltage Range	Output Current Range
SK-L540V20000	152~456VAC (Rated 380V)	20 KW	540V DC	0～720VDC	0～36A

Introduction

The 20KW OBC Charger 700V is a high-power density and high-efficiency charger designed and developed specifically for new energy vehicle models such as lithium-ion pure electric logistics vehicles, buses, and construction machinery. It adopts a modular, standardized, and universal design concept. The charger supports three-phase AC input and the DC output voltage is adjustable across the entire range.

Basic Data

Specification	Model	SK-LXXXV20000 SK-L540V20000)
AC Input	Phases/ Lines	3 Phase
	Input Voltage /Current	152~456VAC (Rated 380V) /≤32A
	Frequency	45Hz-65Hz
DC Output	Output Power	20 KW @ 380V AC (6.6KW only when 220VAC Single Phase Input)
	Output Voltage	0～720VDC (Rated 540V)
	Output Current	0～36A
Others	Operating noise	≤60dB
	CAN BUS	Support (Baud Rate 125Kbps、250Kbps、500Kbps optional)
	Cooling Method	Liquid Cooling

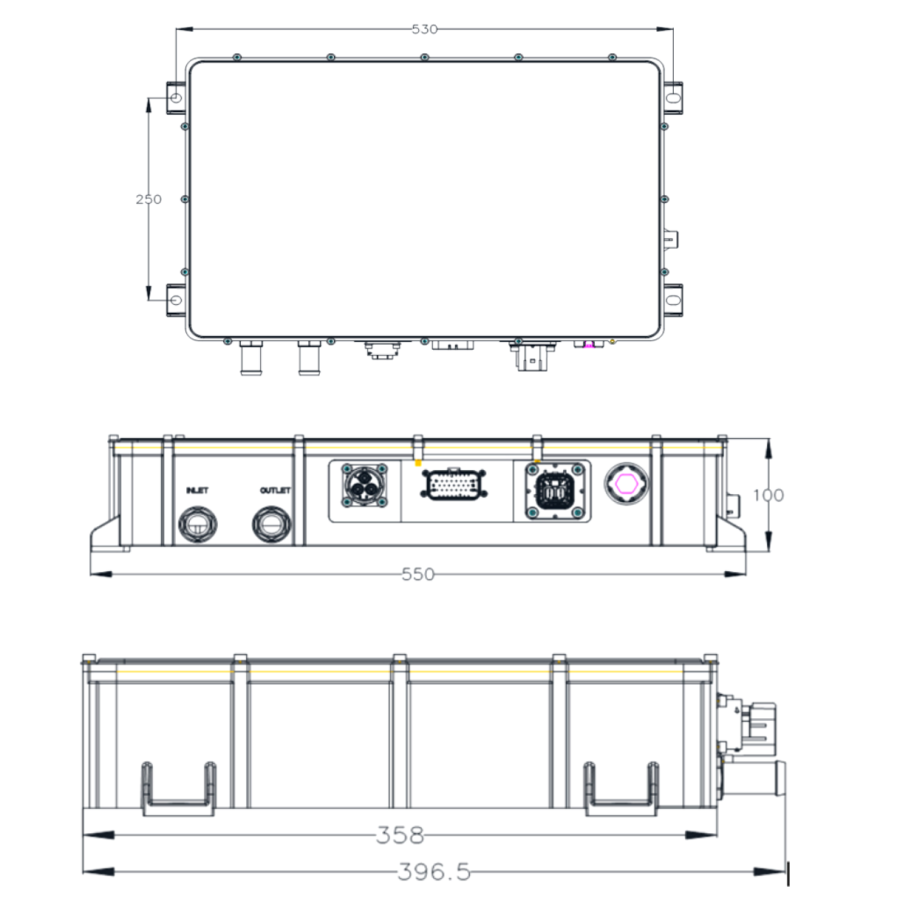

	Dimension	550396.5100mm
	IP Level	IP 67

More specification of this 20KW OBC Charger 700V, please contact our sales.

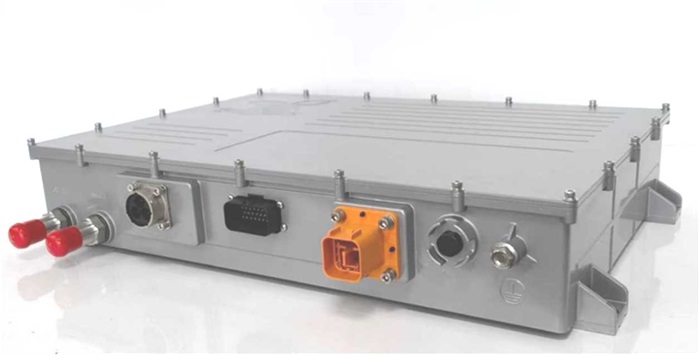

SENKU OBC CHARGER

The 2KW 60v lithium battery chargers are the key to maintaining power supply for electric vehicles. They obtain AC power from driver's house and convert it into DC to charge the battery.

Application of the 20KW OBC Charger 700V

Car chargers can be used for various electric vehicles (including plug-in hybrid vehicles), ships, or devices that require AC to DC charging.
Personal electric vehicle: used to charge electric vehicles, trucks, and motorcycles.
Public transportation: used to charge electric buses and trains.
Industrial applications: used to charge electric forklifts, golf carts, and other industrial vehicles
