> Ev Charging Socket

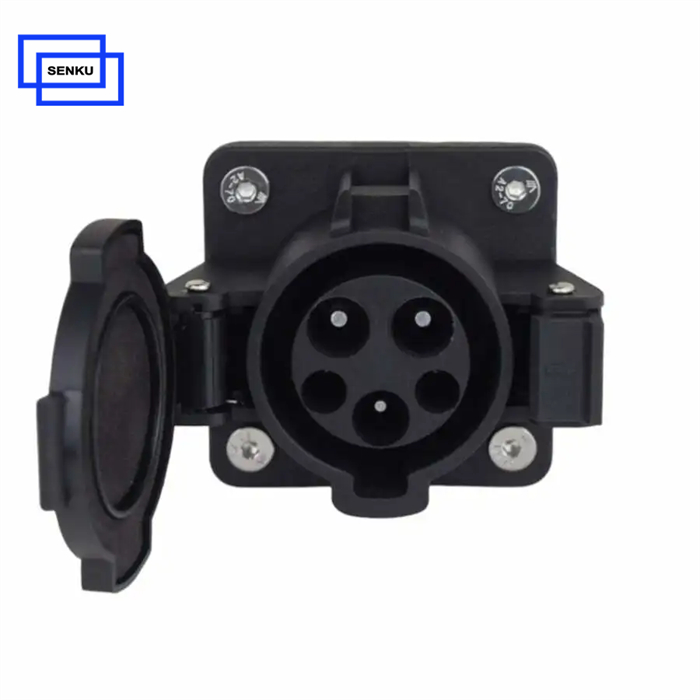

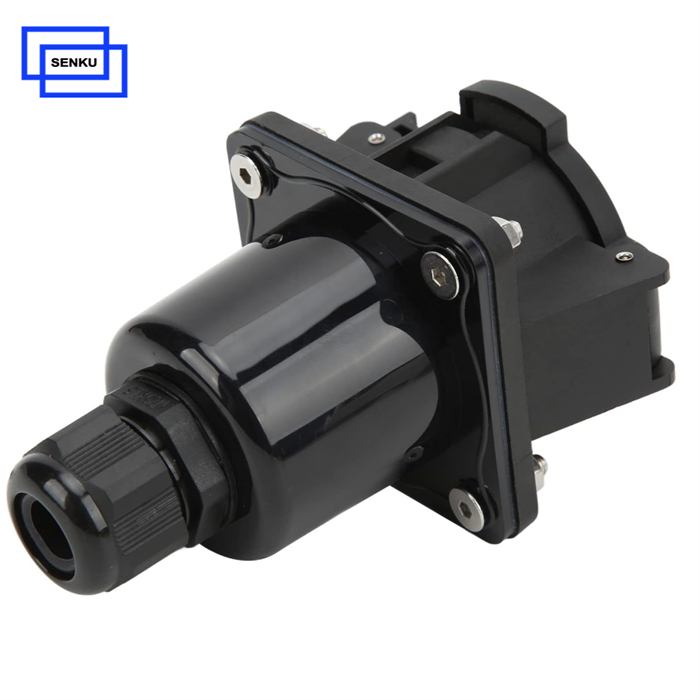

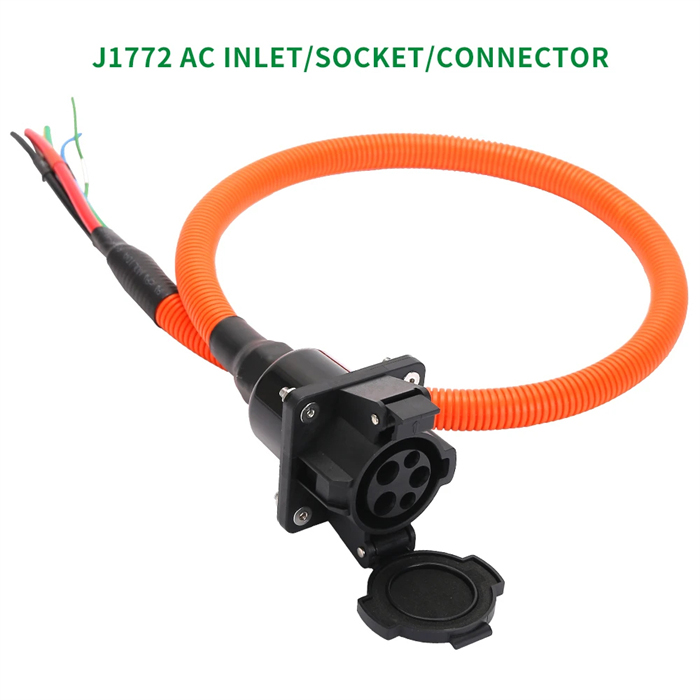

16A 32A 50A 80A Type 1 J1772 Ev Socket
- Rated Current: 16A 32A 50A 80A
- Rated Voltage: 240V AC
- Certificate: CE / UL
- IP Level: IP44
- Product description: Senku Electric Car 16A 32A 50A 80A Type 1 J1772 Ev Socket is made from reliable, flame-resistant, pressure and abrasion-resistant materials, and it suitable for various Battery Electric Vehicles (BE
Product introduction
Electric Car 16A 32A 50A 80A Type 1 J1772 Ev Socket
| Main Parameter | |
| Key Features | Complies with SAE J1772-2010 standard |

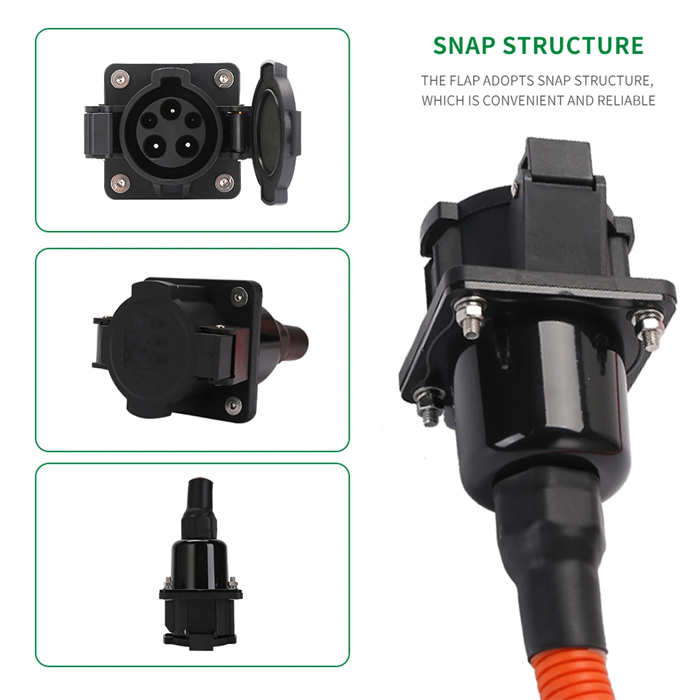

| Sleek design with left flip protection and front installation support | |
| Made from reliable, flame-resistant, pressure and abrasion-resistant materials | |
| Provides excellent protection with an IP44 rating in working conditions | |
| Mechanical Specifications | Durability: Can withstand over 10,000 plug-in/pull-out cycles under no load |
| Coupling force: Between 45N and 80N | |
| Electrical Specifications | Rated current: 16A 32A 40A 48A 50A 80A |
| Operating voltage: 240V | |
| Insulation resistance: Greater than 1000MΩ (tested at DC500V) | |
| Terminal temperature rise: Less than 50K | |
| Withstand voltage: 2000V | |
| Contact resistance: Maximum of 0.5mΩ | |
| Material Composition | Casing: Thermoplastic, UL94 V-0 flame-retardant |
| Pins: Copper alloy with silver plating | |
| Environmental Performance | Operating temperature: -30°C to +50°C |
| Application | Suitable for various Battery Electric Vehicles (BEV) and Hybrid Electric Vehicles (HPEV) |
| Cable Specifications |

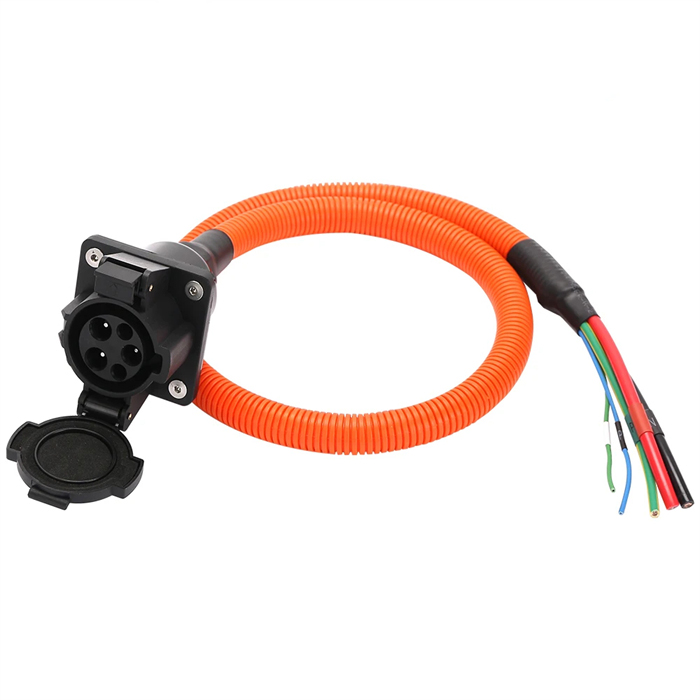

16A: 3 x 2.5mm² + 2 x 0.5mm² / 3 x 14AWG + 1 x 18AWG 32A: 3 x 6mm² + 2 x 0.5mm² / 3 x 10AWG + 1 x 18AWG 40A: 2 x 8AWG + 1 x 10AWG + 1 x 16AWG 50A: 2 x 8AWG + 1 x 10AWG + 1 x 16AWG 80A: 2 x 5AWG + 1 x 6AWG + 2 x 18AWG |

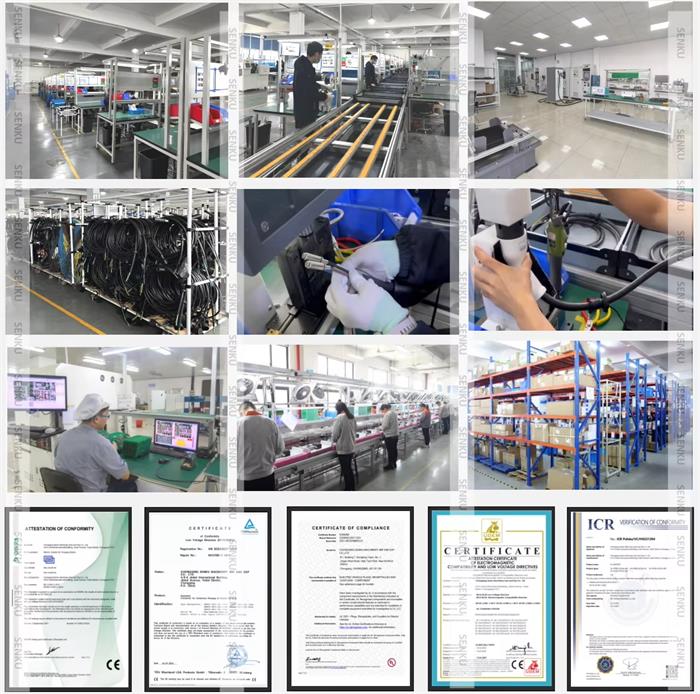

Senku charging connectors are built with sturdy and durable materials, designed to withstand diverse environmental conditions, ensuring long-lasting performance and reliability. Additionally, they are certified with both TUV and UL certifications, guaranteeing that our products meet the highest global standards for safety during the charging process.
By combining innovative technology with a commitment to quality, we provide reliable charging solutions that meet the demands of the growing EV market, enabling the shift to sustainable transportation.
