16A 3.5KW GBT GBT Ev Plug In Stations

Rated Current: 16A
Operate Voltage: 240V AC
Certificate: /
IP Level: IP54
Product description: The domestic standard AC EV plug in stations refers to an AC charging gun that complies with the Chinese standard GB/T 20234. Charging stations equipped with GBT EV plug can charge vehicles with GB
Inquiry

Product introduction

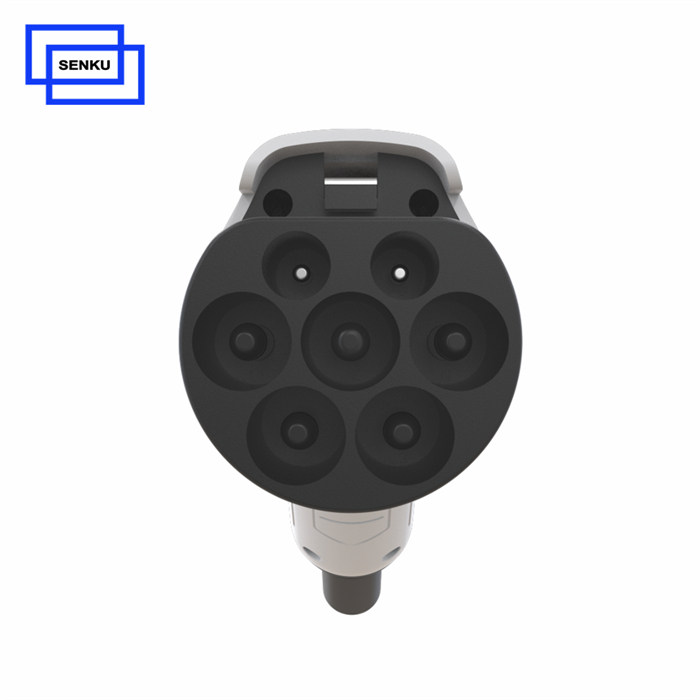

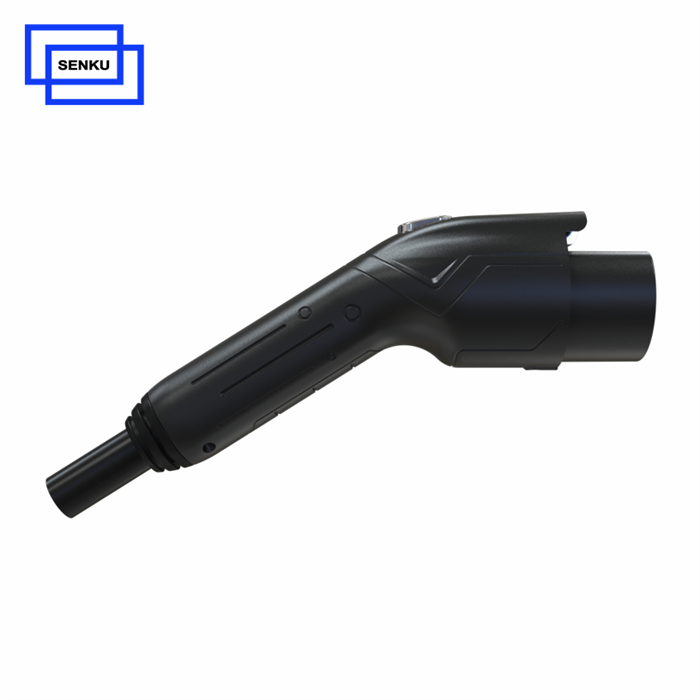

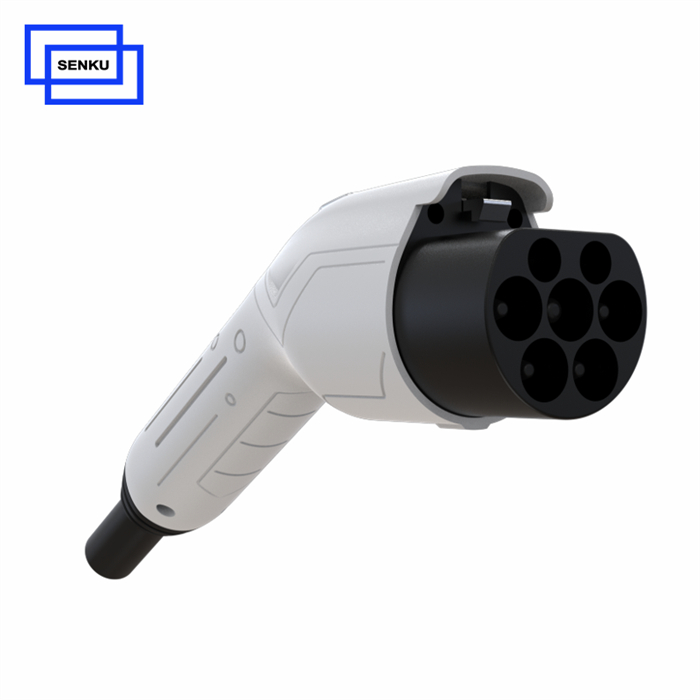

Charging Point 16A 250V AC GBT Ev Plug In Stations

The domestic standard AC EV plug in stations refers to an AC charging gun that complies with the Chinese standard GB/T 20234.

Charging stations equipped with GBT EV plug can charge vehicles with GBT charging sockets; This GB/T charging gun comes with a choice of 16A, 32A, and 63A.

Electric Performance.
Rated current	16A
Operate voltage	240V AC
Insulation resistance	>1000MΩ (DC500V)
Terminal temperature rise.	<50K
Withstand Voltage	2000V
Contact Resistance	0.5 megohm MAX
Mechanical life	no-load plug in / plug out > 10000 times
Materia	Thermoplastic, Flame retardant grade UL94-0;
Materia	Pin: Cooper alloy,sliver + thermoplastic on the top
Operation Temp.	-30℃ ~ + 50℃
IP protection class	IP54
Standard	GB/T 20234
Certifications	/
