> Ev Charging Plugs

16A 32A 63A GBT EV Charger Plug

Rated Current: 16A /32A /63A
Operate Voltage: 250V / 480V AC
Certificate: /
IP Level: IP54
Product description: This GB/T china EV AC charger plug has strong compatibility in product performance, which meets the requirements and regulations of the China domestic standard GB/T 2023. It can be applied to the effe
Inquiry

Product introduction

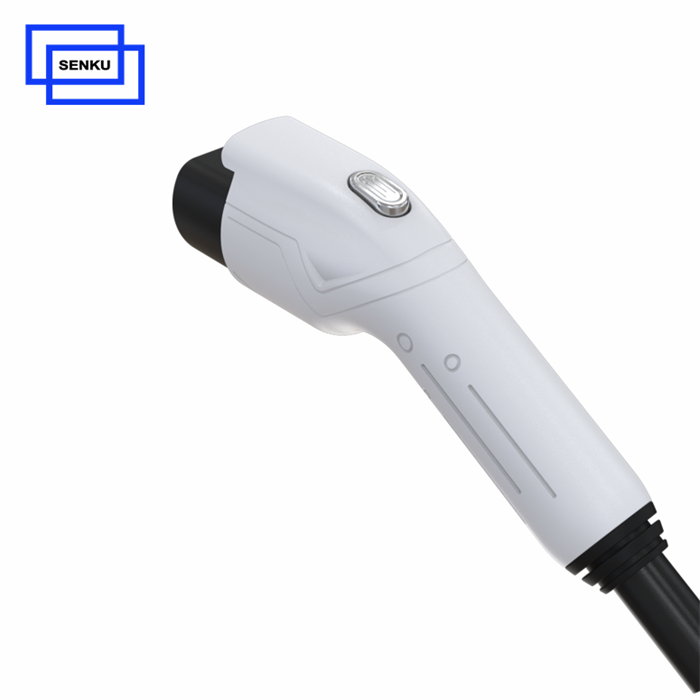

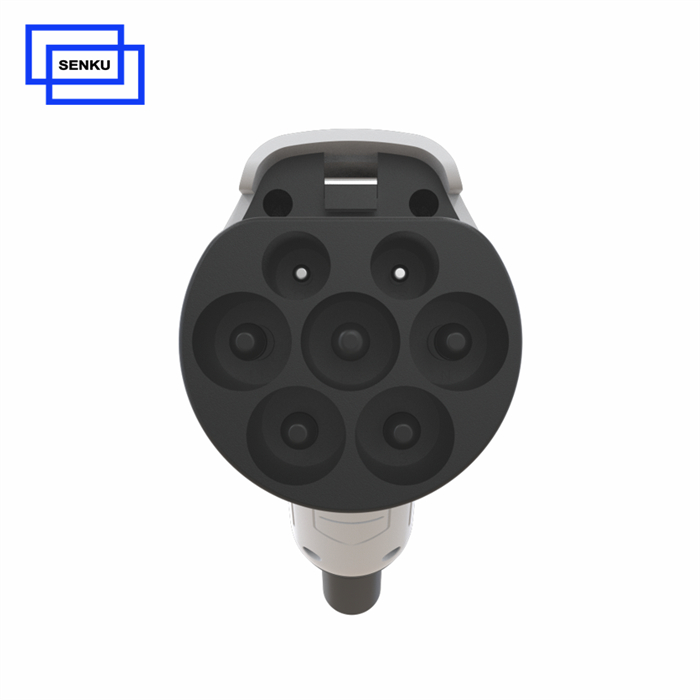

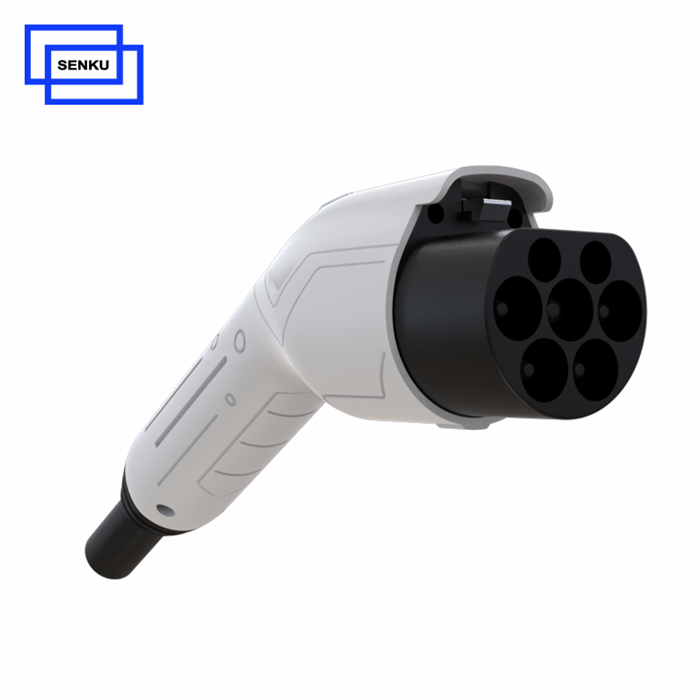

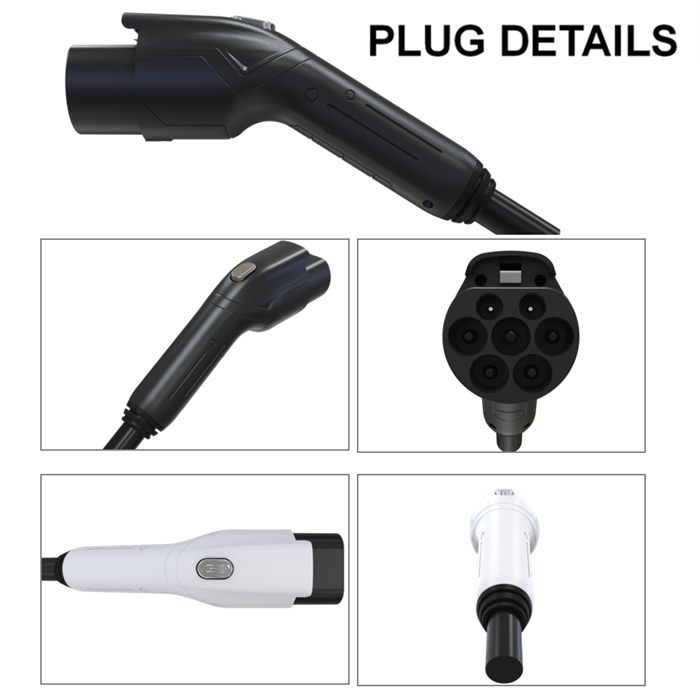

16A 32A 63A GBT China EV Ac Charger Plug

This GB/T china EV AC charger plug has strong compatibility in product performance, which meets the requirements and regulations of the China domestic standard GB/T 2023. It can be applied to the effective charging of any GBT standard electric vehicle.

Electric Performance.
Rated current	16A / 32A /63A
Operate voltage	240V AC /440V AC
Insulation resistance	>1000MΩ (DC500V)
Terminal temperature rise.	<50K
Withstand Voltage	2000V
Contact Resistance	0.5 megohm MAX
Mechanical life	no-load plug in / plug out > 10000 times
Materia	Thermoplastic, Flame retardant grade UL94-0;
Materia	Pin: Cooper alloy,sliver + thermoplastic on the top
Operation Temp.	-30℃ ~ + 50℃
IP protection class	IP54
Standard	GB/T 20234
Certifications	/
