> Ev Charging Plugs

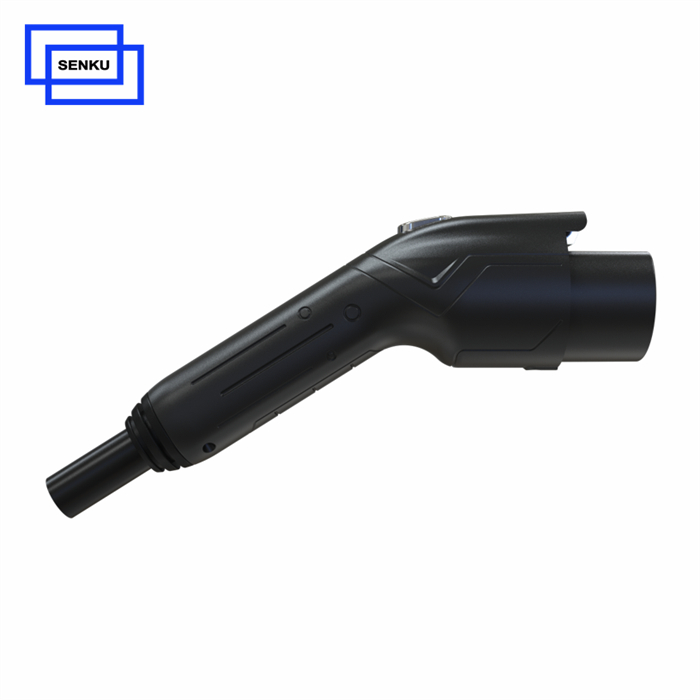

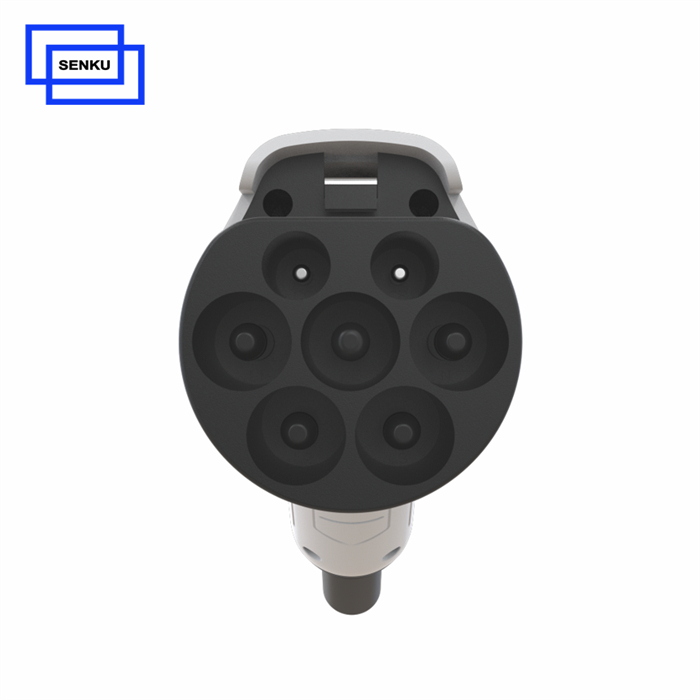

32A 7.4KW GBT EV Charging Plugs
- Rated Current: 32A
- Operate Voltage: 240V AC
- Certificate: /
- IP Level: IP54
- Product description: This series of AC EV charging plugs is suitable for conducting charging on electric vehicles; • Designed according to China GB/T 20234 standard, equipped with mechanical self-locking hooks, single-pha
Product introduction
Electric Car Charging Points 32A 22KW Plug In Charger
This series of AC EV charging plugs is suitable for conducting charging on electric vehicles; • Designed according to China GB/T 20234 standard, equipped with mechanical self-locking hooks, single-phase (250V AC) and three-phase (480V AC) modes optional; The most humanized human-machine design, beautiful appearance, convenient insertion and removal, and comfortable grip.
| Electric Performance | |
| Rated current | 32A |
| Operate voltage | 240V AC |
| Insulation resistance | >1000MΩ (DC500V) |
| Terminal temperature rise. | <50K |
| Withstand Voltage | 2000V |
| Contact Resistance | 0.5 megohm |
| Mechanical life | no-load plug in / plug out > 10000 times |
| Materia | Thermoplastic, Flame retardant grade UL94-0; |
| Pin: Cooper alloy,sliver + thermoplastic on the top | |
| Operation Temp. | -30℃ ~ + 50℃ |
| IP protection class | IP 54 |
| Standard | /20234 |
| Certifications | / |
More specification of this 32A GBT ev charging plugs, please contact our sales.
