16A 11KW GBT EV Plugs

Rated Current: 16A
Operate Voltage: 440V AC
Certificate: /
IP Level: IP54
Product description: The GBT EV plugs adopts a China standard 7-hole AC gun head, which can use to charge all the China GBT standard electric vehicle models on the market; This GBT EV plug can adapt to high and low temper
Inquiry

Product introduction

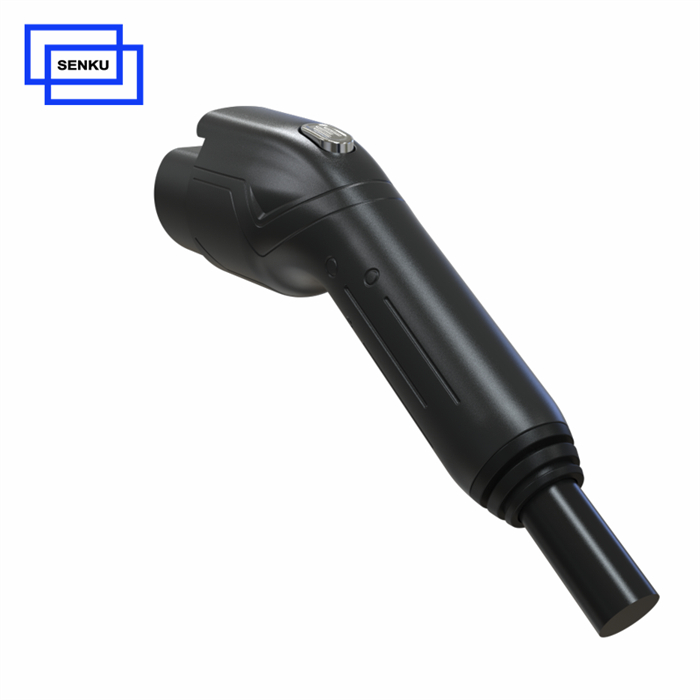

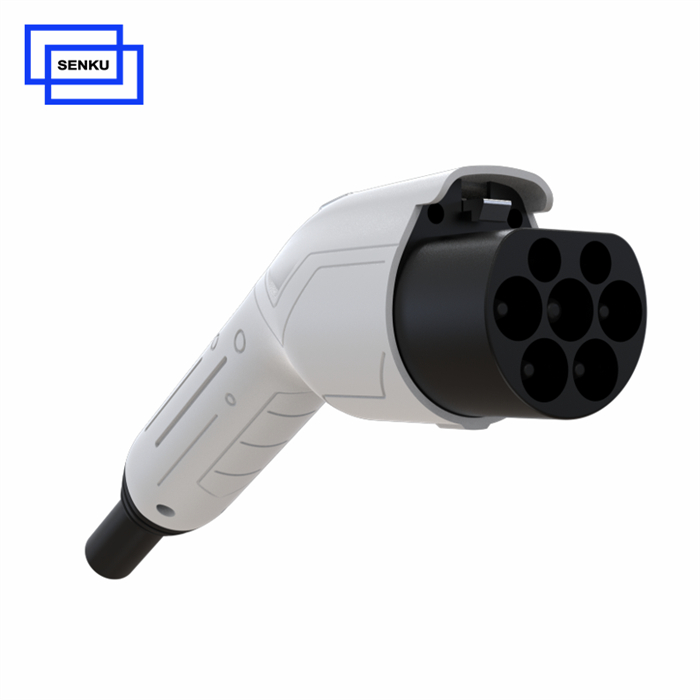

Electric Vehicle Charging Stations 11KW China 16A Gbt Ev Plugs

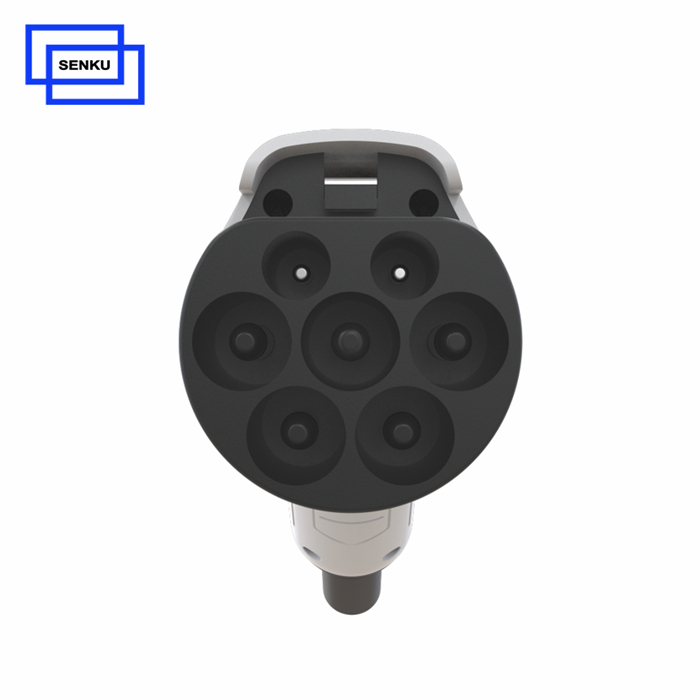

The GBT EV plugs adopts a China standard 7-hole AC gun head, which can use to charge all the China GBT standard electric vehicle models on the market; This GBT EV plug can adapt to high and low temperature environments, is wear-resistant and durable.

Electric Performance.
Rated current	16A
Operate voltage	440V AC
Insulation resistance	>1000MΩ (DC500V)
Terminal temperature rise.	<50K
Withstand Voltage	2000V
Contact Resistance	0.5 megohm
Mechanical life	no-load plug in / plug out > 10000 times
Materia	Thermoplastic, Flame retardant grade UL94-0;
Materia	Pin: Cooper alloy,sliver + thermoplastic on the top
Operation Temp.	-30℃ ~ + 50℃
IP protection class	IP 54
Standard	GB/T 20234
Certifications	/
