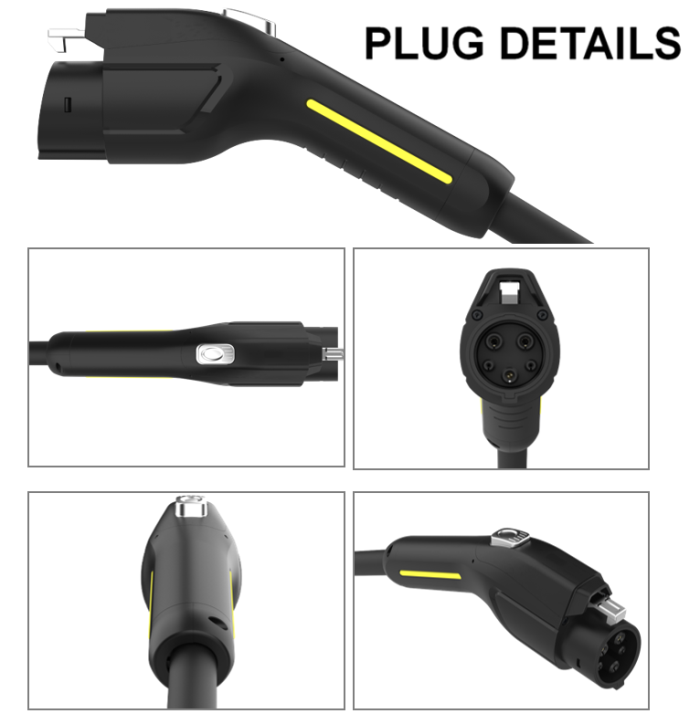

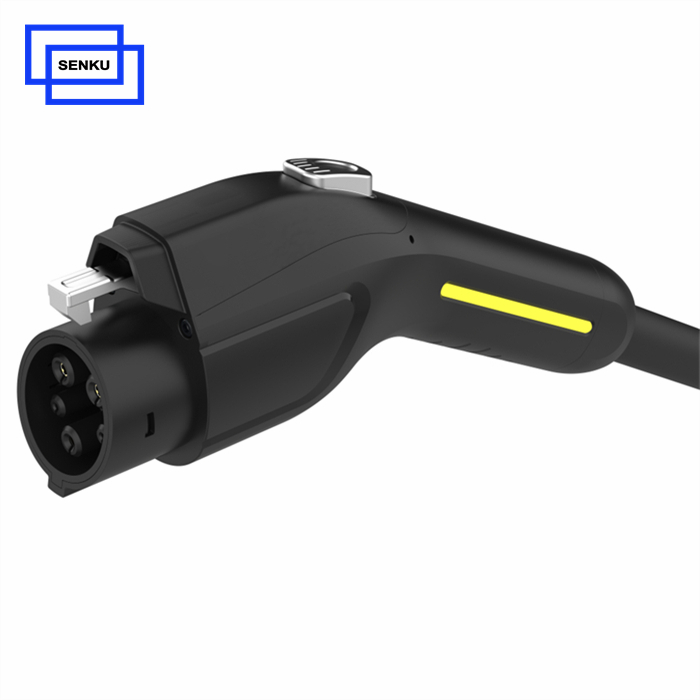

V2 32A J1772 Type 1 Type 1 EV Car Plug

Rated Current: 32A
Operate Voltage: 250V AC
Certificate:CE, FCC
IP Level: IP54
Product description: The Type 1 ev car plug is designed with 5 pins and has a latch that can secure the plug in place to prevent it from falling out of the charger socket; J1772 5-pin standard supports a wide range of sin
Inquiry

Product introduction

Electric Car Recharge Stations 32A Type 1 Ev Car Plug

The Type 1 ev car plug is designed with 5 pins and has a latch that can secure the plug in place to prevent it from falling out of the charger socket; J1772 5-pin standard supports a wide range of single-phase AC charging rates.

SAE J1772, According to its international standard IEC 62196 Type 1, also known as J plug or Type 1 connector, it is a North American standard for electrical connectors for electric vehicles

These vehicles use Type 1 ev car plugas the standard:

Citroen C-Zero, Ford Focus Electric, Mitsubishi Outlander PHEV, Kia Soul EV, Nissan Leaf, Peugeot (using both models simultaneously), Toyota Prius, and Vauxhall...

Electric Performance.
Rated current	32A
Operate voltage	240V AC
Insulation resistance	>1000MΩ (DC500V)
Terminal temperature rise.	<50K
Withstand Voltage	2000V
Contact Resistance	0.5 megohm MAX
Mechanical life	no-load plug in / plug out > 10000 times
Materia	Thermoplastic, Flame retardant grade UL94-0;
Materia	Pin: Cooper alloy,sliver + thermoplastic on the top
Operation Temp.	-30℃ ~ + 50℃
IP protection class	IP54
Standard	SAE J1772-2017
Certifications	CE, FCC
