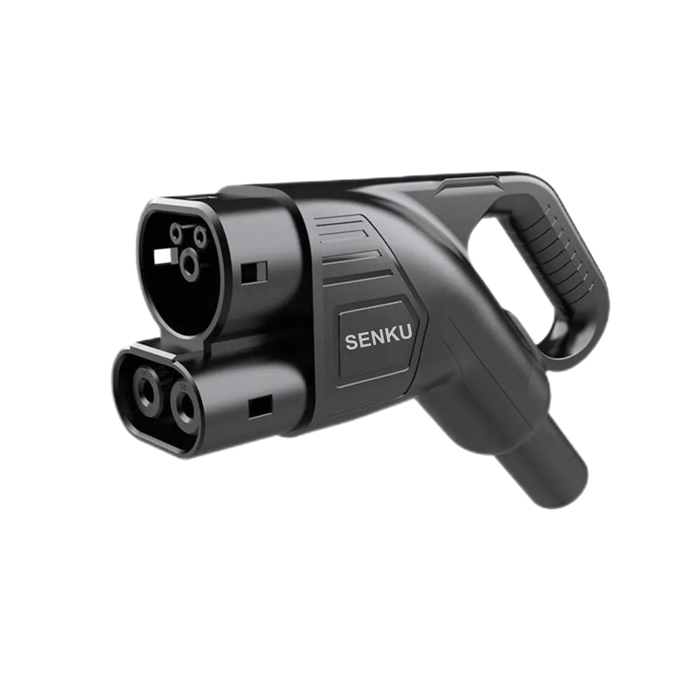

80A 125A 150A 200A CCS2 EV Connectors

Rated Current: 80A 125A 150A 200A
Rated Current: 1000V DC
Certificate: CE
IP Level: IP55
Product description: The CCS2 Combo charging point offers support for both AC (alternating current) and DC (direct current) charging. It includes a Type 2 port for AC charging alongside a separate port for fast DC chargin
Inquiry

Product introduction

SENKU 80A 125A 150A 200A CCS2 Electric Car Charging EV Connectors - Supplier, manufacturer, factory

Electric Performance.
Rated current	AC Part: 32A DC Part: 80A 125A 150A 200A optional
Operate voltage	240V / 480V AC and 1000V DC
Insulation resistance	>2000MΩ (DC1000V)
Terminal temperature rise.	<50K
Mechanical life	no-load plug in / plug out > 10000 times
Material	Thermoplastic, Flame retardant grade UL94-0;
Material	Pin: Cooper alloy,sliver + thermoplastic on the top
Operation Temp.	-30℃ ~ + 50℃
IP protection class	IP55
Standard	IEC /EN 62196-1,IEC /EN 62196-3
Certifications	TUV CE

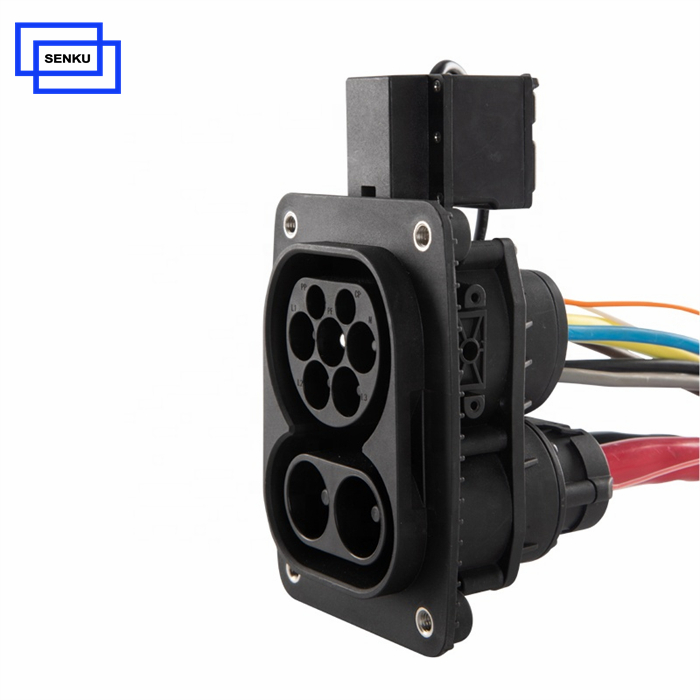

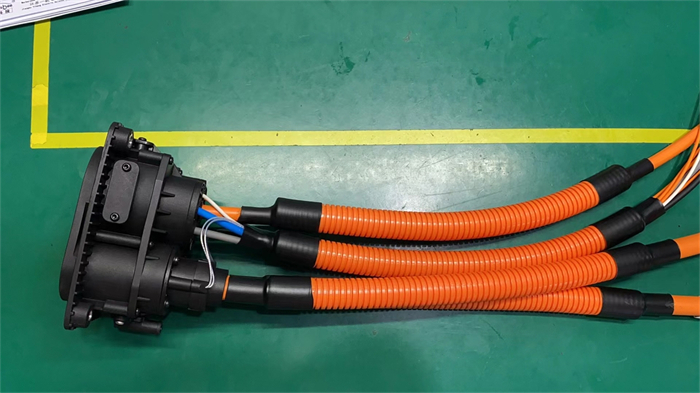

80A 125A 150A 200A CCS2 electric car charging EV connectors

Product Features

- Versatile Current Options: The Combo CCS2 EV inlet socket is available in 80A, 125A, 150A, 200A variants.

- Standards Compliance: Fully meets IEC 62196-1 and IEC 62196-3 standards for compatibility and reliability.

- Overheat Protection: Equipped with PT1000 sensors on all DC power conduct pins to monitor temperature and prevent overheating.

- Durable Design: Built with IP55-rated protection, ensuring resistance to dust and water ingress.

- Integrated Charging Capabilities: Combines AC slow charging and DC fast charging within a single inlet, catering to all EU standard vehicles.

- Certified High-Quality Cable: The TUV-certified cable has undergone rigorous ozone, aging, and flame-retardant tests. It is also resistant to oil, low temperatures, and wear and tear.

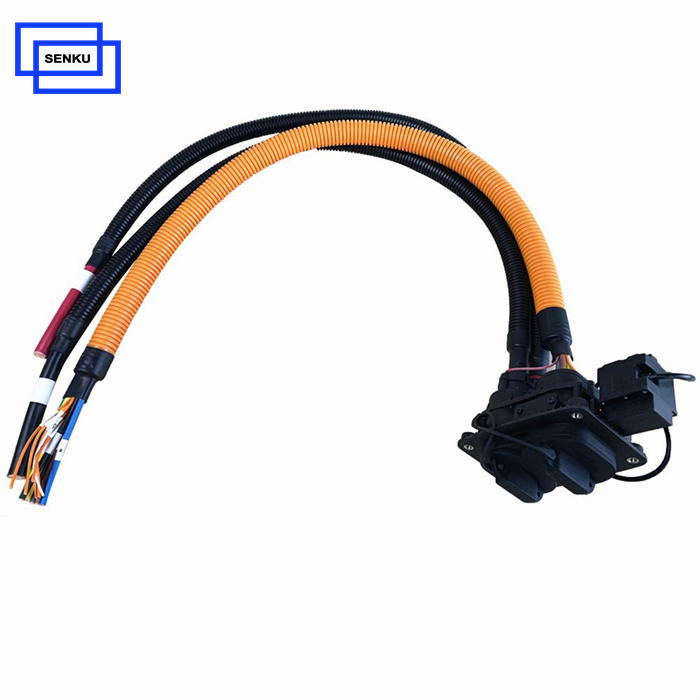

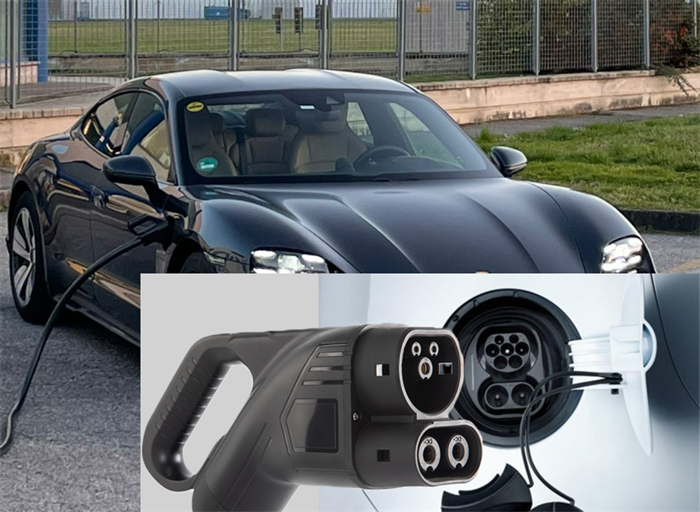

80A 125A 150A 200A CCS2 electric car charging EV connectors

Applications

This SENKU 80A 125A 150A 200A CCS2 electric car charging EV connectors seamlessly integrates alternating current (AC) Type 2 and direct current (DC) CCS fast charging in one compact design. It reduces manufacturing costs and installation space for electric vehicle producers. The optional electromagnetic locking actuator ensures the charging plug remains securely connected during operation, preventing accidental disconnections or damage.

Designed to meet CCS2 standards, this Combo CCS2 inlet socket is suitable for all electric vehicles adhering to these requirements.

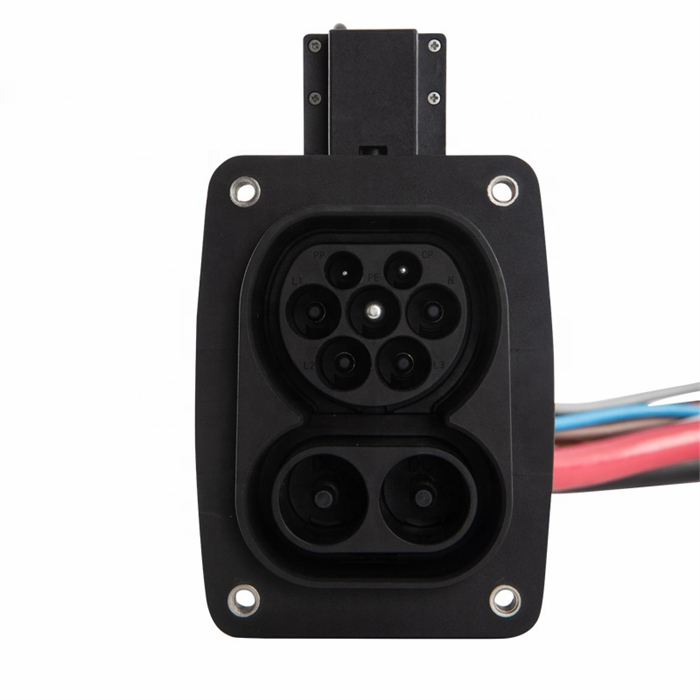

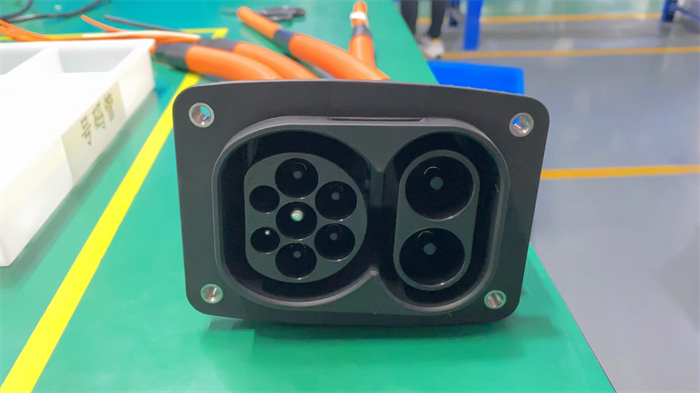

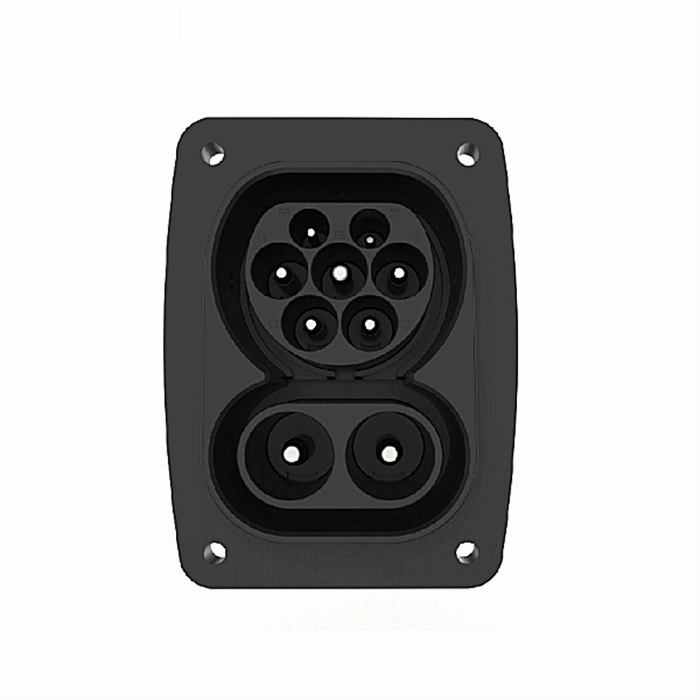

CCS2 Combo socket
