> Ev Charging Socket

80A 150A 200A 250A 300A 350A Electric Vehicle Charging Inlet

Rated: 80A 150A 200A 250A 300A 350A optional
Certificate: UL
IP Level: TYPE 3R
Mechanical lifespan: Plug and unplug ≥10000 times
Product description: CCS1 80A 150A 200A 250A 300A 350A electric vehicle charging inlet supports single-phase AC charging at power levels up to 7.4 kW, which is suitable for both the home and workplace. This is achieved t
Inquiry

Product introduction

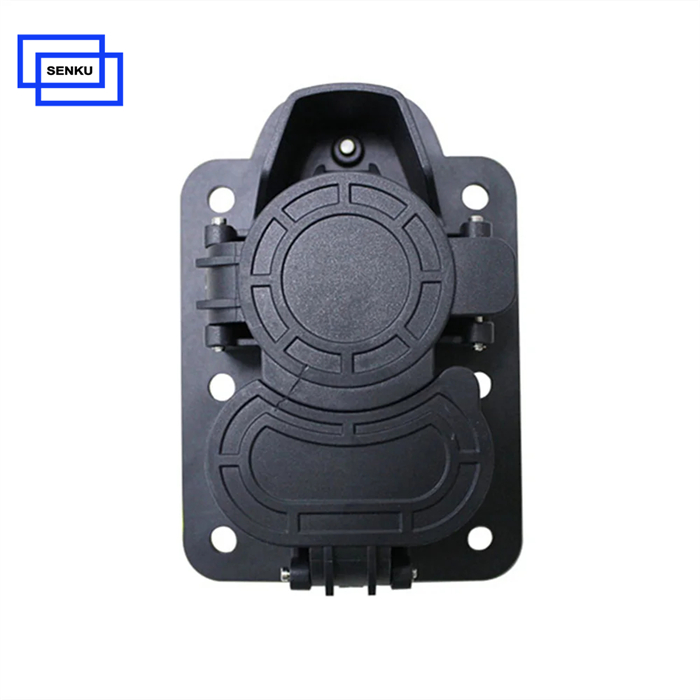

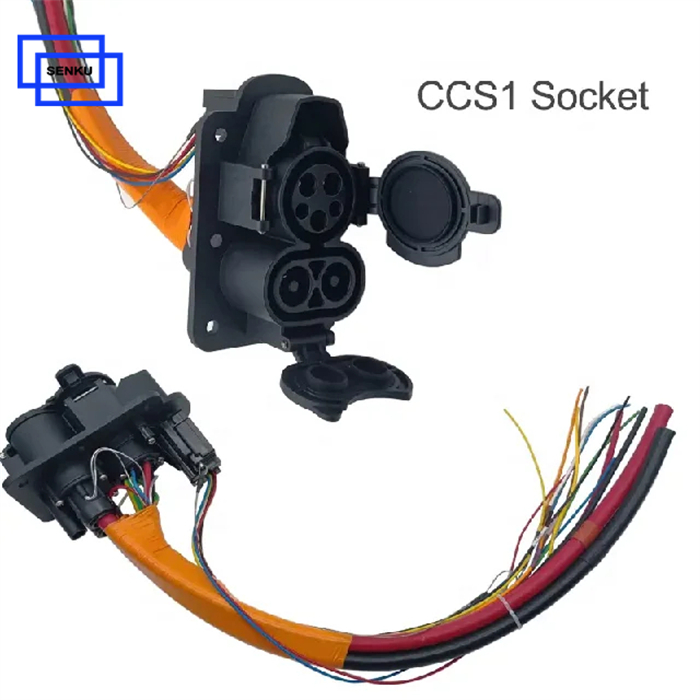

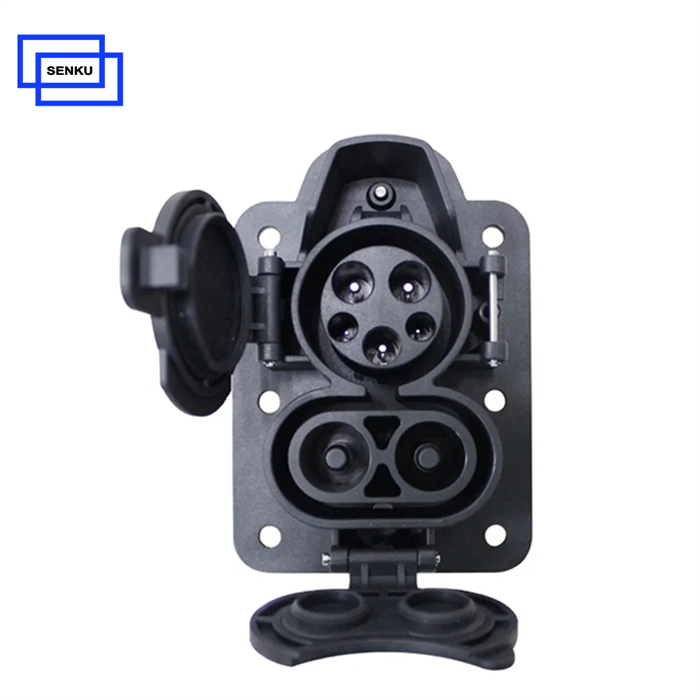

80A 150A 200A 250A 300A 350A Electric Vehicle Charging Inlet

CCS1 80A 150A 200A 250A 300A 350A electric vehicle charging inlet supports single-phase AC charging at power levels up to 7.4 kW, which is suitable for both the home and workplace. This is achieved through the J1772 connector, which is compatible with Level 1 (120V) and Level 2 (240V) stations. Additionally, CCS1's DC capability enables faster powering times compared to AC charging, supporting power levels up to 350 kW.

Electric Performance
Rated current	DC 80A 150A 200A 250A 300A 350A
Operate voltage	110V / 240V AC and 1000V DC
Insulation resistance	>2000MΩ (DC1000V)
Terminal temperature rise.	<50K
Mechanical life	no-load plug in / plug out > 10000 times
Materia	Thermoplastic, Flame retardant grade UL94-0;
Materia	Pin: Cooper alloy,sliver + thermoplastic on the top
Operation Temp.	-30℃ ~ + 50℃
IP protection class	TYPE 3R
Standard	UL2251 / SEA J1772
Certifications	UL / TUV

Why Choose SENKU CCS1?

Dual capability: The CCS1 electric vehicle charging inlet supports both AC and DC charging, giving users flexibility across charging speeds and environments.

Fast charging: With 350 kW DC fast charging, the inlet socket enables ultra-quick charging times, keeping drivers on the road with minimal downtime.

Widely compatible: Designed to work seamlessly with J1772 connectors, it integrates into the existing charging infrastructure in homes, workplaces, and public spaces.

Electric Vehicle Charging Inlet
