60A Charging Socket For CCS Electric Car

Rated: 80A 125A 150A 200A 250A 300A 350Aoptional
Certificate: CE
IP Level: IP55
Mechanical lifespan: Plug and unplug ≥10000 times
Product description: The Combined Charging System (CCS) 2 inlet is a widely accepted connector designed for efficient charging of Plug-in Hybrid Electric Vehicles (PHEVs) and fully Electric Vehicles (EVs). The CCS2 chargi
Inquiry

Product introduction

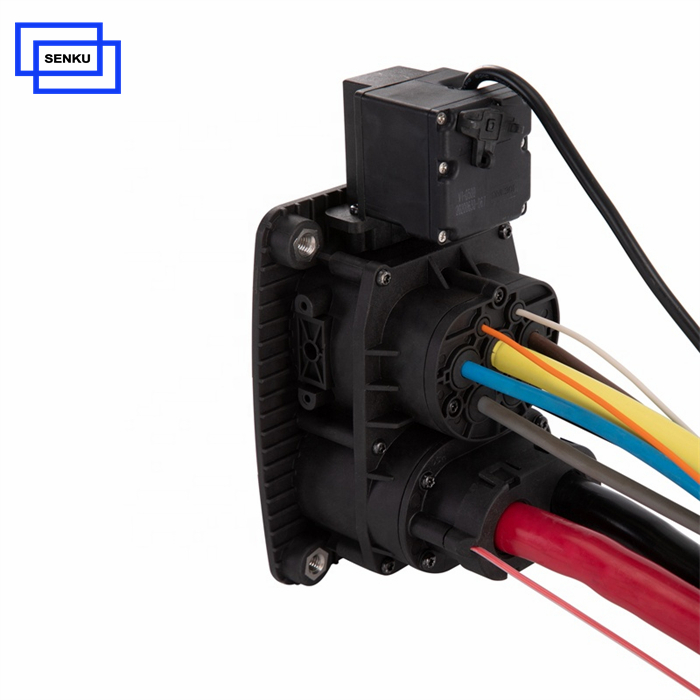

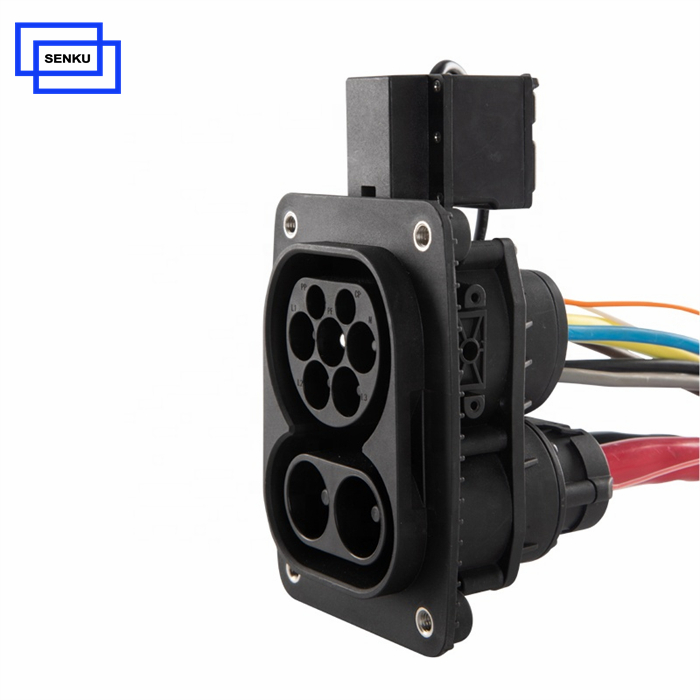

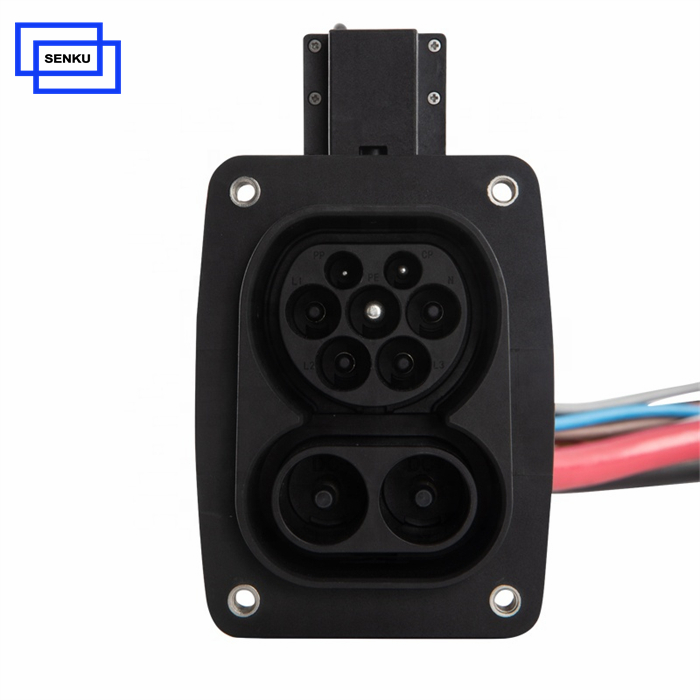

Senku DC 60A Charging Socket For Ccs Electric Car

The Combined Charging System (CCS) 2 inlet is a widely accepted connector designed for efficient charging of Plug-in Hybrid Electric Vehicles (PHEVs) and fully Electric Vehicles (EVs). The CCS2 charging socket for ccs electric car is compatible with both AC and DC charging standards across Europe, Australia, and are progressively being adopted as a global standard.

Electric Performance
Rated current	32A AC and 60A DC
Operate voltage	240V / 480V AC and 1000V DC
Insulation resistance	>2000MΩ (DC1000V)
Terminal temperature rise.	<50K
Mechanical life	no-load plug in / plug out > 10000 times
Material	Thermoplastic, Flame retardant grade UL94-0;
Material	Pin: Cooper alloy,sliver + thermoplastic on the top
Operation Temp.	-30℃ ~ + 50℃
IP protection class	IP55
Standard	IEC /EN 62196-1,IEC /EN 62196-3
Certifications	TUV CE

The SENKU CCS2 charging socket for ccs electric car is designed to be user-friendly and universally compatible with the increasing range of electric vehicle models in the global market. By combining AC and DC charging standards in one socket, this inlet provides ultimate flexibility for vehicle owners and simplifies charging infrastructure for operators.

Standardization: The socket is designed to comply with international charging standards (such as IEC 62196), ensuring interoperability across multiple regions and charger types. It simplifies vehicle design by offering a single interface for all charging modes.

Global Compatibility: Widely adopted in Europe and Australia, the CCS2 socket is becoming the global standard, making it the ideal choice for vehicle manufacturers and charging station operators aiming for broad compatibility.
