> AC / DC On Board Charger

1.2KW 96V AC to DC On-Board Chargers

Input Voltage: 90～265VAC /8A
Rated Power: 1.2KW
Output voltage: 0～130V DC
Output current: 0～13A
Product description: The 1.2KW 96V OBC Charger applications of an electric vehicle onboard charger are widespread and include personal electric vehicles like cars, trucks, and motorcycles, as well as public transportation
Inquiry

Product introduction

Part No	Input Voltage Range	Rated Output Power	Rated Output Range	Output Voltage Range	Output Current Range
SK-L096V1200	90～265VAC	1.2KW	96V DC	0～130VDC	0～13A

Basic Data of 1.2KW 96V OBC Charger

Specification	Model	SK-LXXXV1200 (SK-L096V1200)
AC Input	Phases/ Lines	1-phase;Single Phase
	Input Voltage /Current	95V - 265V AC /≤8A
	Frequency	45Hz-65Hz
DC Output	Output Power	1.2KW @ 220VAC
	Output Voltage	0～130VDC (Rated 96V)
	Output Current	0～13A
Others	Operating noise	≤60dB
	CAN BUS	Support (Baud Rate 125Kbps、250Kbps、500Kbps optional)
	Cooling Method	Fan Cooling

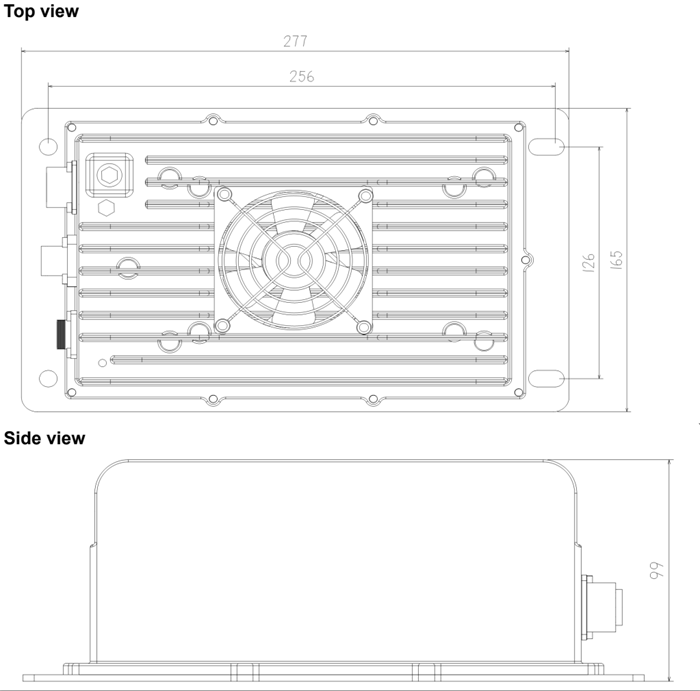

	Dimension	27716599mm
	IP Level	IP 67

More specification of this 1.2KW 96V OBC Charger, please contact our sales.

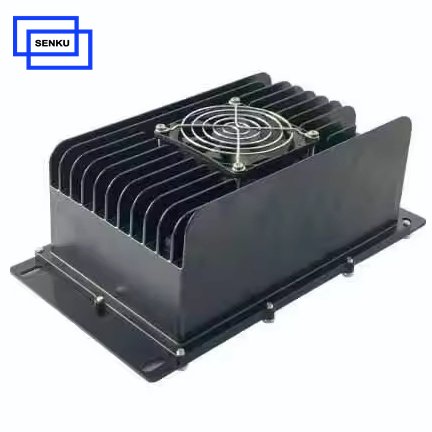

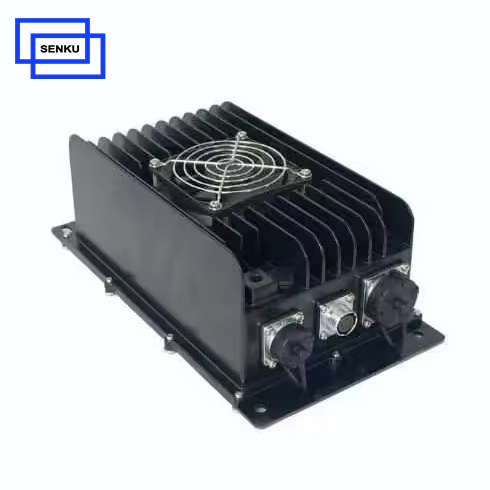

senku 96v obc

96v obc

96v obc 1.2KW charger

Application of 1.2KW 96V OBC Charger

On-board charger (OBC) is a kind of power electronic equipment in electric cars, which converts AC power from external power source (such as residential socket or AC charging station) into DC power to charge vehicle battery pack.

The 1.2KW 72V On Board Charger applications of an electric vehicle onboard charger are widespread and include personal electric vehicles like cars, trucks, and motorcycles, as well as public transportation like electric buses and trains. Industrial applications for electric vehicle onboard chargers include charging electric forklifts, golf carts, and other industrial vehicles. Overall, electric vehicle onboard chargers are a critical component in the growing electric vehicle industry and will continue to play a significant role in the future of transportation.
