> AC / DC On Board Charger

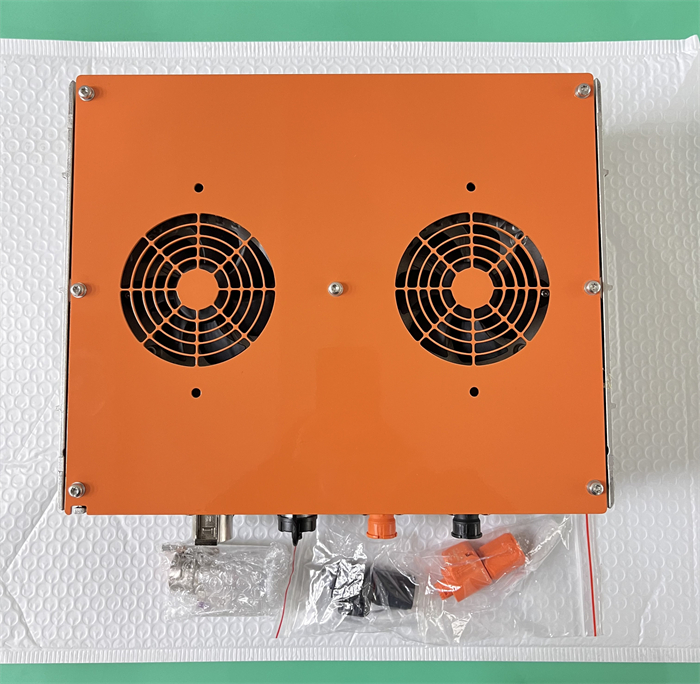

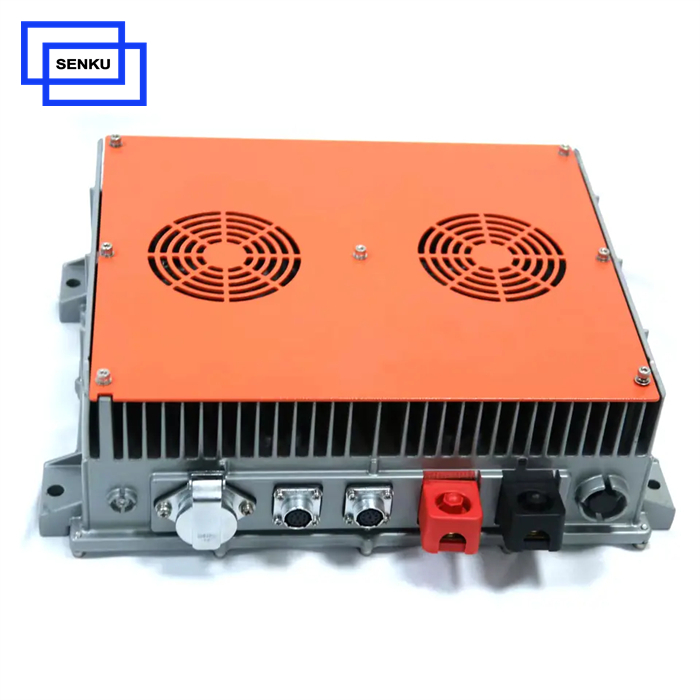

6KW Series EV OBC Charger

1 Phase Input: 220V AC /30A
3 Phase Input: 380V AC /10A
Rated Power: 6KW
Output voltage: Subject to Battery Voltage
Product description: 6kw obc charger are widely used in electric cars, trucks, and motorcycles, as well as public transportation vehicles such as electric buses and trains. The industrial applications of 6kw obc chargers
Inquiry

Product introduction

Model list of 6KW SK-LXXXV6000 Series OBC Charger

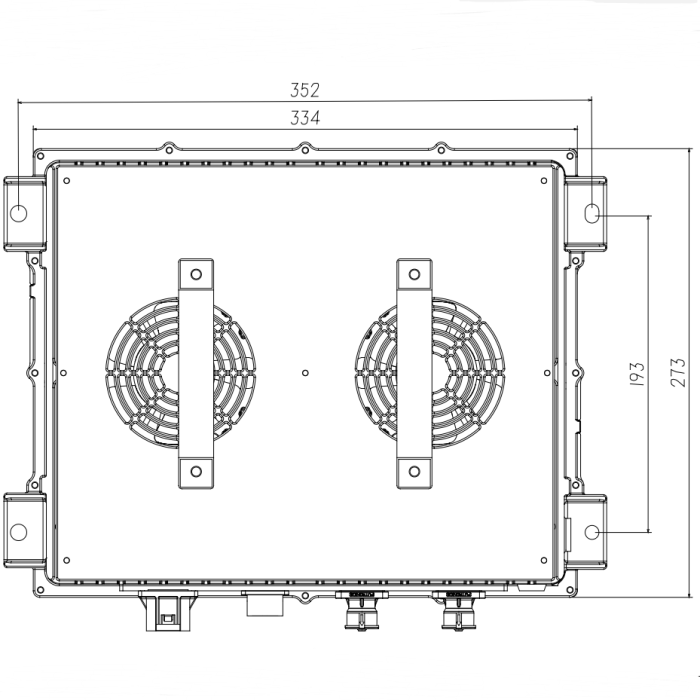

Rated Output	Output Voltage Range	Output Current Range	Charger Model	*Dimension (LWH)*
60V DC 105A	0～80V DC	0～105A	SK-L060V6000	352273112mm
80V DC 75A	0～105V DC	0～75A	SK-L080V6000	352273112mm
108V DC 54A	0～135V DC	0～54A	SK-L108V6000	352273112mm
144V DC 39A	0～180V DC	0～39A	SK-L144V6000	352273112mm
360V DC18A	0～450V DC	0～18A	SK-L360V6000	352273112mm

6.6kw charger 48v

More specification of this 6KW OBC Charger please contact our sales.

Youtube video Link for this 6KW OBC Charger

https://youtu.be/nBErvMa4E14

Application of 6.6kw OBC charger

On-board charger (OBC) is a kind of power electronic equipment in electric cars, which converts AC power from external power source (such as residential socket or AC charging station) into DC power to charge vehicle battery pack.

The 6.6KW OBC Charger applications of an electric vehicle onboard charger are widespread and include personal electric vehicles like cars, trucks, and motorcycles, as well as public transportation like electric buses and trains. Industrial applications for electric vehicle onboard chargers include charging electric forklifts, golf carts, and other industrial vehicles. Overall, electric vehicle onboard chargers are a critical component in the growing electric vehicle industry and will continue to play a significant role in the future of transportation.
