> AC / DC On Board Charger

Input: 95V-265V AC /16A
Rated Power: 3.3KW
Output voltage: 0～700V DC
Output current: 0～6A

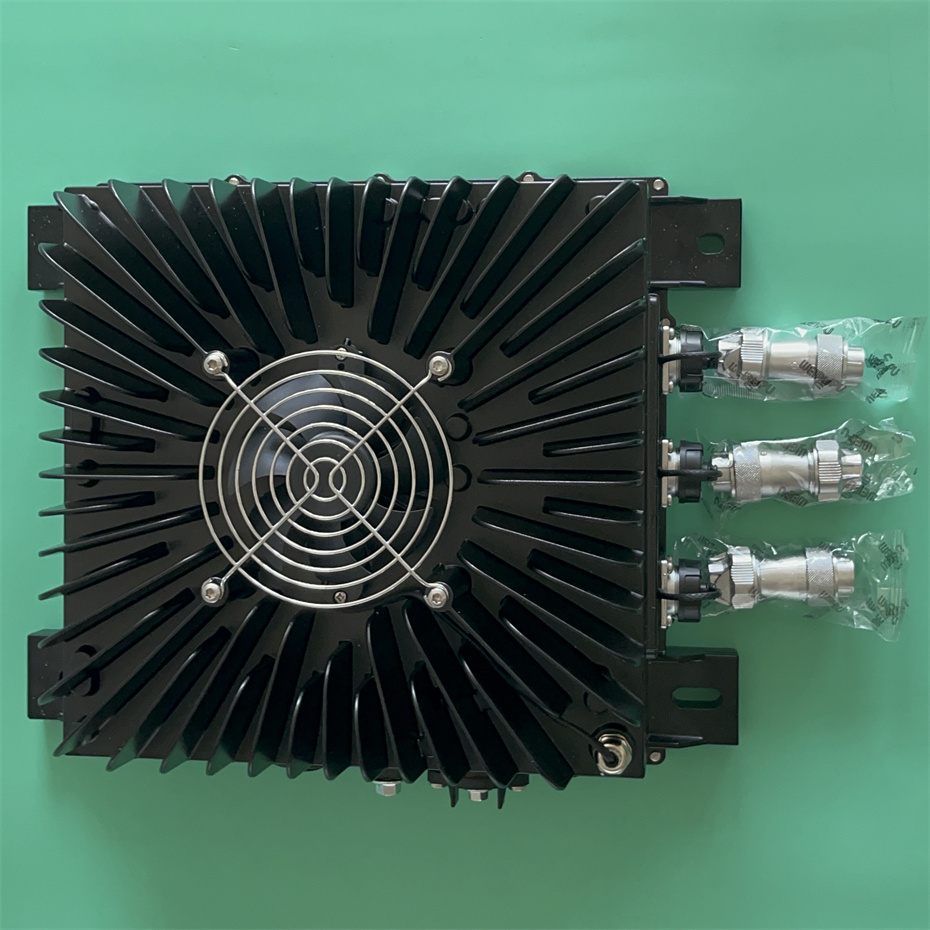

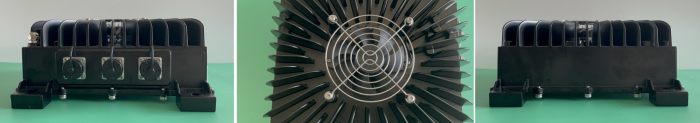

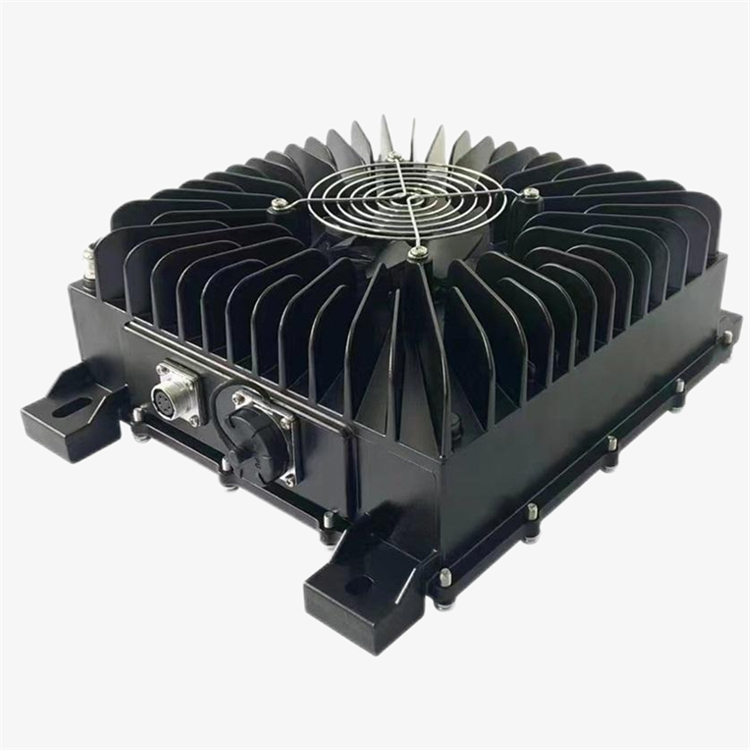

Product description: The SK-L 3.3kw on board charger is a device that converts AC power from an electrical charging station into DC power to charge the batteries of an electric vehicle. This charger is installed directly
Inquiry

Part No	Input Voltage Range	Rated Output Power	Rated Output Range	Output Voltage Range	Output Current Range
SK-L540V3300	90～265VAC	3.3KW	540V DC	0～700VDC	0～6A

Basic Data

Specification	Model	SK-LXXXV3300 (SK-L540V3300)
AC Input	Phases/ Lines	1-phase;Single Phase
	Input Voltage /Current	95V - 265V AC /≤16A
	Frequency	45Hz-65Hz
DC Output	Output Power	3.3KW @ 220VAC
	Output Voltage	0～700VDC (Rated 540V)
	Output Current	0～6A
Others	Operating noise	≤60dB
	CAN BUS	Support (Baud Rate 125Kbps、250Kbps、500Kbps optional)
	Cooling Method	Fan Cooling

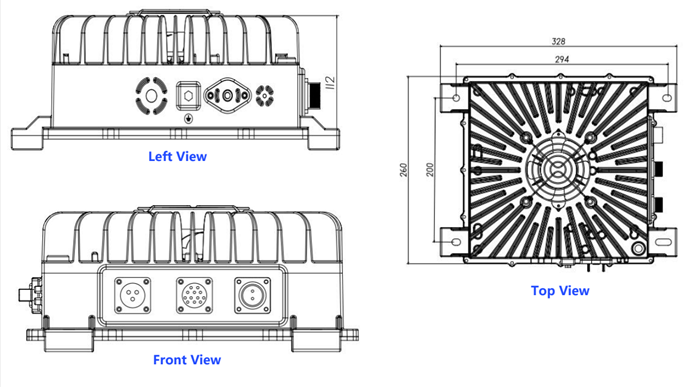

	Dimension	328260112mm

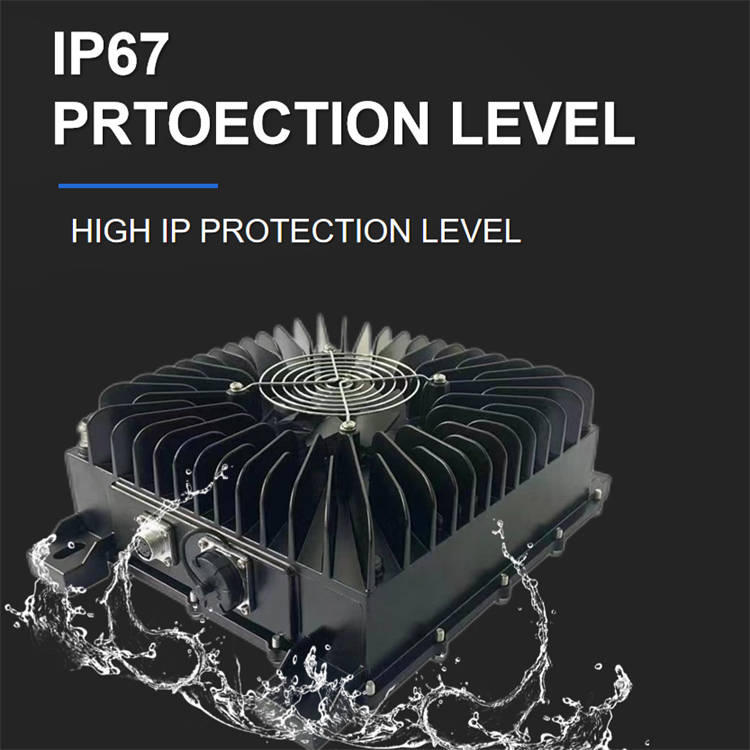

	IP Level	IP 67

More specification of this 3.3kw on board charger, please contact our sales.

Youtube video Link for this 3.3kw on board charger

https://youtu.be/Jwok52UWd74

Features of 3.3kw on board charger

√ AC to DC Conversion: converts AC power from a charging station into DC power that can be used to charge the vehicle's batteries.

√ Excellent cost-effectiveness ratio: By combining cutting-edge components into a compact design.

√ Constant power and constant voltage state automatic conversion, effective saving time

√ Compact and lightweight design for ease of installation.

√ Automotive standard communication (CAN). limits the voltage and current to prevent overcharging or damage to the batteries.

√ Wide range of output voltages

√ Built-in 12V auxiliary power supply for BMS wake-up

Application of 3.3kw on board charger

3.3KW 500V 600V 700V EV OBC Charger
