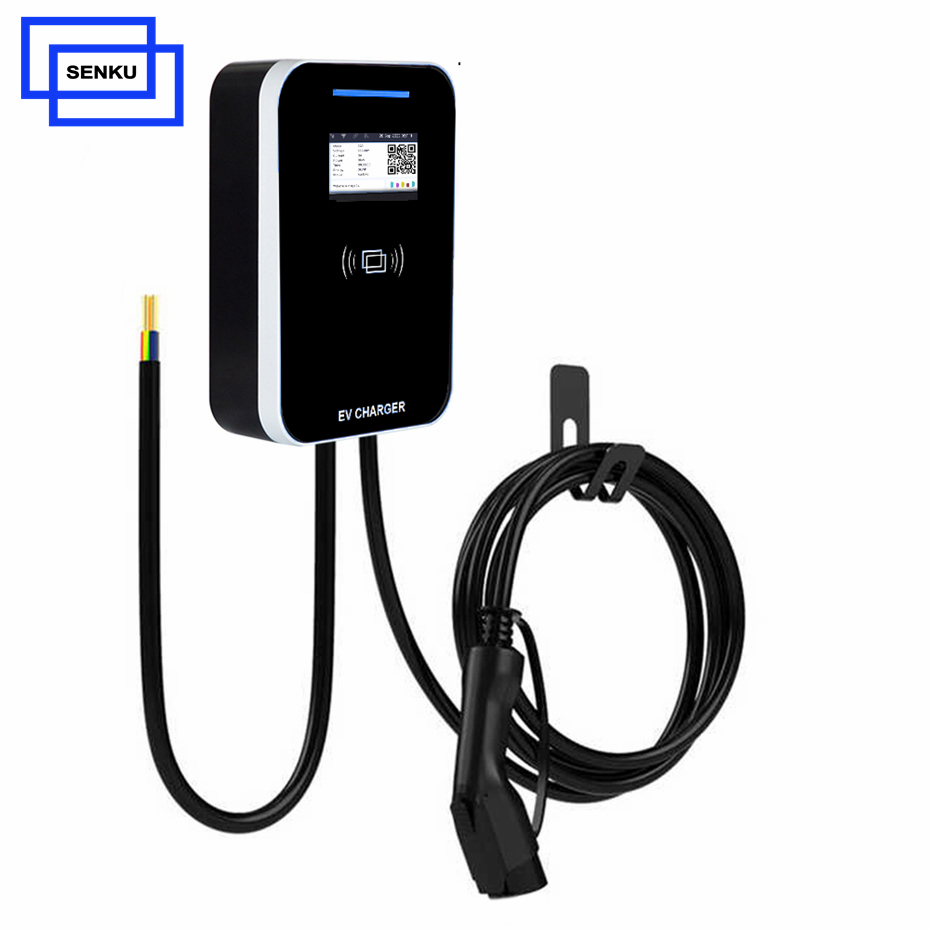

Type 2 7KW Electric Car Charger

Power: 7kW 32A 240V AC
Standard: Type 2 (IEC62196)
Control; Plug and Charging/ RFID /APP
IP Level: IP55
Product description: After connecting the Type 2 7KW Electric Car Charger via WiFi and Bluetooth, you can control it remotely through the app. Monitor charging status, adjust current, view history, and schedule charging d
Inquiry

Product introduction

Type 2 7KW Electric Car Charger, 32A 240V AC IEC 62196 Charging Station - Manufacturer, Supplier, Factory

Specification
Electrical Parameter	Phases/ Lines	1-phase; 1P+N+PE
	Rated Voltage	220V AC±10%
	Rated Current	32A
	Rated Power	7.4KW
Basic Parameter	HMI	3 color LED light+ 4.3" Display screen
	Charging Outlet	Type 2 Connector +5M cable or Cutomized
	Charging Method	Plug and Charging for Basic Version
	Optional Function	Wifi/ Bluetooth /APP Control Wifi; Ethernet; 4G/ OCPP1.6 Dynamic Load Balance Solar Charging PEN
Security Parameter	Multi le Protection	Over-voltage protection, under-voltage protection, over-load protection, short circuit protection, ground protection, over-temperature protection, lightning protection, UV resistance...
Security Parameter	Certification Compliance	CE, OZEV, LIST, UKCA, SASO Certification

Installation Options

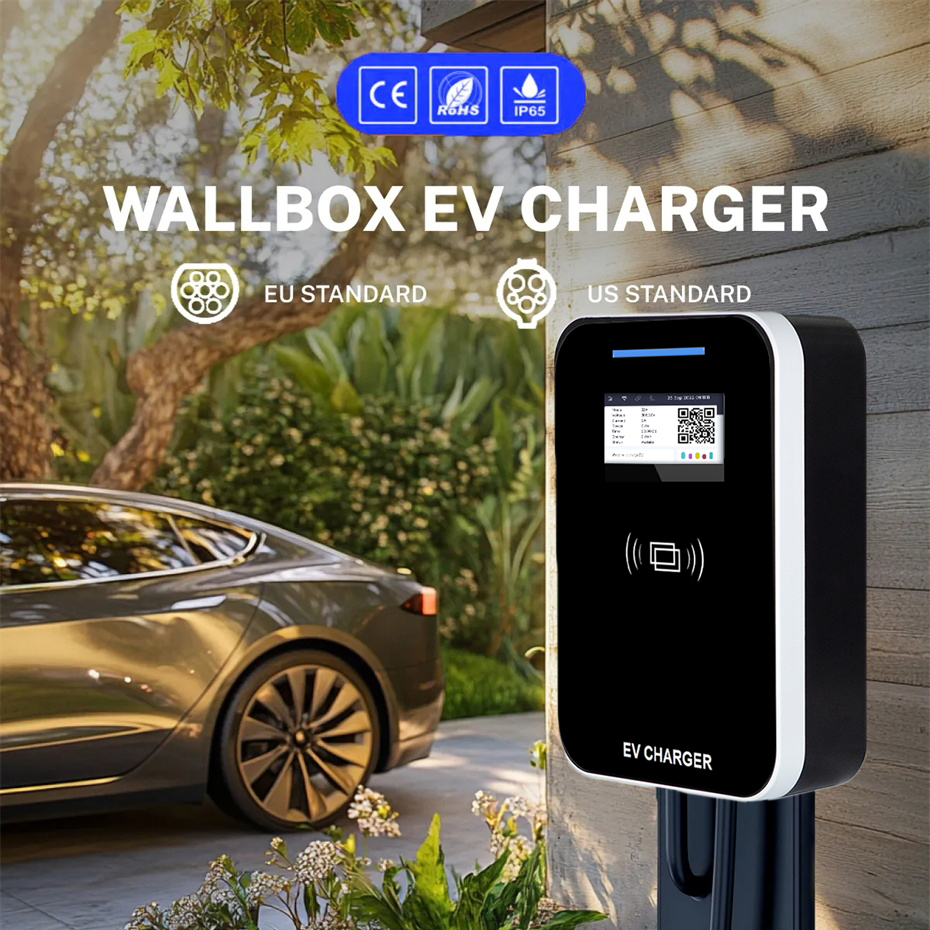

This unit is suitable for both indoor and outdoor environments. It is engineered to endure environmental stress such as sun exposure, heavy rain, and hail, making it adaptable to varying climates.

Product Features

1. Wide Compatibility

This Type 2 7kW electric car charger is suitable for all electric and plug - in hybrid vehicles with 7 - pin Type 2 or CCS - 2 sockets that meet the IEC 62196 standard. It offers seamless charging for various vehicle models in the UK and Europe (And it has Type 1 and GBT plug as an option)

2. Built for Endurance
With an IK10/IP55 rating, the Pulsar Max withstands extreme weather conditions, from scorching summers to freezing winters. This electric car charger robust construction resists water, dust, and impacts of up to 20 joules, while a scratch-resistant matte finish preserves its sleek appearance over time.

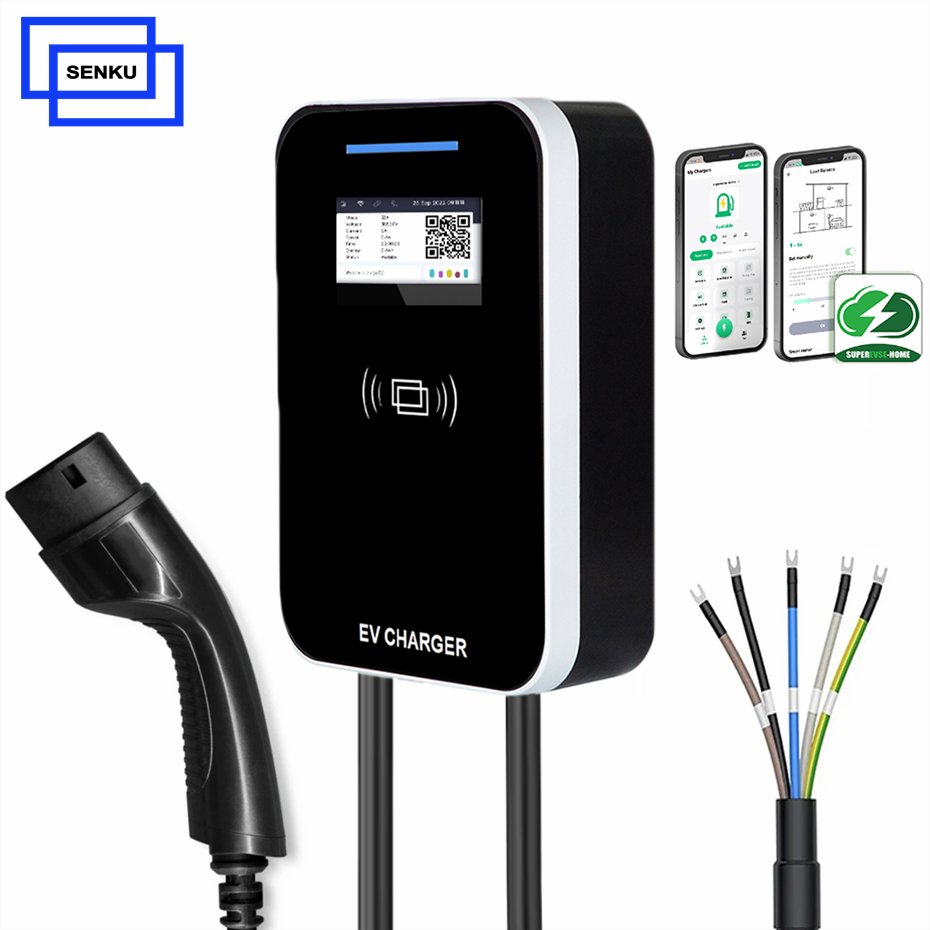

3. Intelligent App Remote Control

After connecting the EV charging station via WiFi and Bluetooth, you can control it remotely through the app. Monitor charging status, adjust current, view history, and schedule charging during low - rate periods for cost - effective energy use.

4. Automatic Charging Power Adjustment

Unlike many chargers, the Senku Type 2 electric car charger automatically adjusts the charging current when its internal temperature reaches 85 degrees. This ensures safe and continuous charging, maintaining optimal performance for your EV.

What OEM /ODM Service Can we Provide?

We have a strong R&D team and a very cooperative sales team, and we are willing to provide ODM/ODM customized services for our customers! We can embed your company's logo in the software, charger body and packaging of our products to showcase brand value. We can also produce EV Chargers and packaging based on your design drawings, or we can provide product design and R&D services according to your needs. For more details, please contact us!
