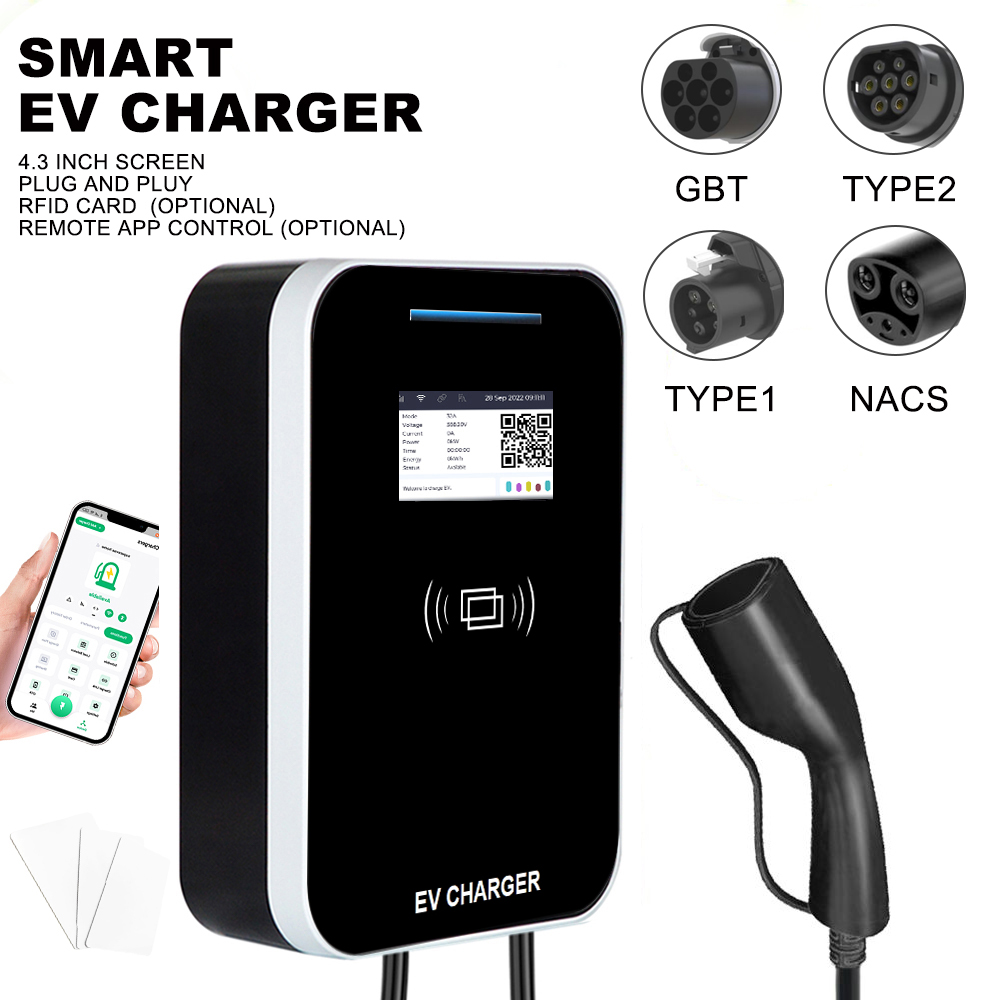

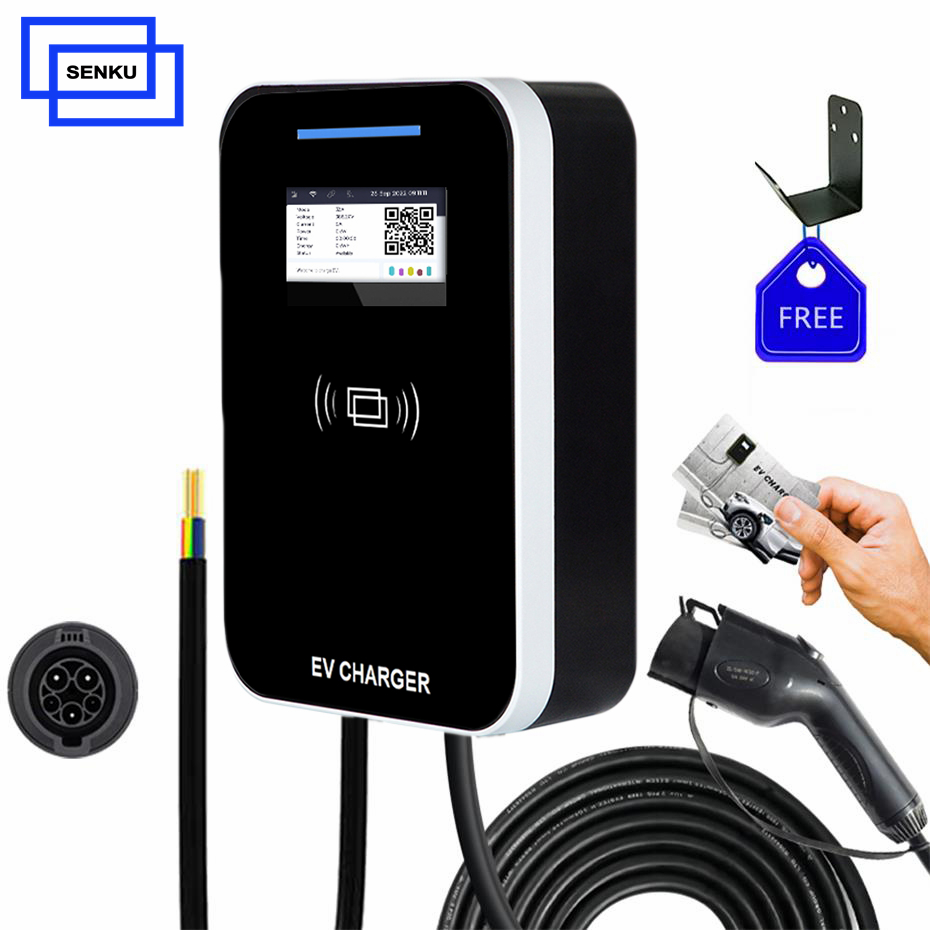

Type 1 32A 7KW Ev Home Charger

Power: 7kW 32A 240V AC
Standard: Type 1 (SAEJ1772)
Control; Plug and Charging/ RFID /APP
IP Level: IP55
Product description: The Type 1 32A 7KW Ev Home Charger from Senku is a smart, compact, and tough home charging station, complete with an attached Type 1 charging cable. With support for charging speeds up to 7.4 kW, this
Inquiry

Product introduction

Type 1 32A 7KW Ev Home Charger - Manufacturer, Supplier, Factory

Specification
Electrical Parameter	Phases/ Lines	1-phase; 1P+N+PE
	Rated Voltage	220V AC±10%
	Rated Current	32A
	Rated Power	7.4KW

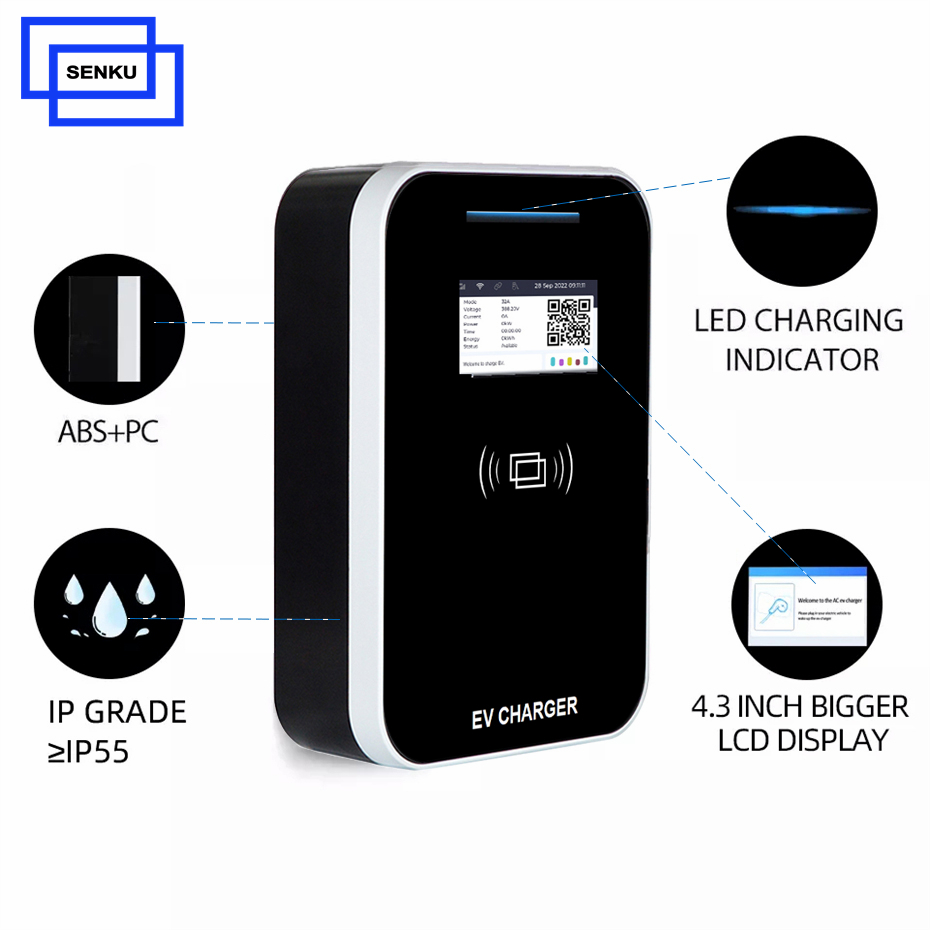

Basic Parameter	HMI	3 color LED light+ 4.3" Display screen
	Charging Outlet	Type 1 Connector +5M cable or Cutomized
	Charging Method	Plug and Charging for Basic Version
	Optional Function	Wifi/ Bluetooth /APP Control Wifi; Ethernet; 4G/ OCPP1.6 Dynamic Load Balance Solar Charging PEN
Security Parameter	Multi le Protection	Over-voltage protection, under-voltage protection, over-load protection, short circuit protection, ground protection, over-temperature protection, lightning protection, UV resistance...
Security Parameter	Certification Compliance	CE, OZEV, LIST, UKCA, SASO Certification

Overview of Key Functions

Stay seamlessly connected via Wi-Fi or Bluetooth for remote management and real-time monitoring. This EV home charger boasts a sleek, compact design that blends modern aesthetics with functional efficiency. Its Power Boost technology optimizes charging infrastructure, reducing charging times for enhanced convenience. Integrated LED indicators and 4.3inch screen provide clear visual feedback on charging status, while built-in DC leakage protection ensures robust safety during operation.

General Specifications

Cable Length: 5 meters

Plug Type: Type 1 (SAE J1772)

Dimensions: 240mm x 95mm x 350mm (L*W*H)

Temperature Range: -25°C to 50°C

Certifications: CE marked

Technical Specifications

Max Power: 7.4 kW (single-phase)

Input Voltage: 110/230V AC±10% (single-phase)

Max Current: 32 A

Adjustable Current: 6–32 A

Frequency: 50 Hz/60 Hz

Leakage Detection: AC 30 mA (DC 6 mA optional）

Key Features
High Performance: Delivers fast charging with robust, outdoor-ready construction.
Weather Resistance: IP55-rated waterproof design for reliable outdoor use.

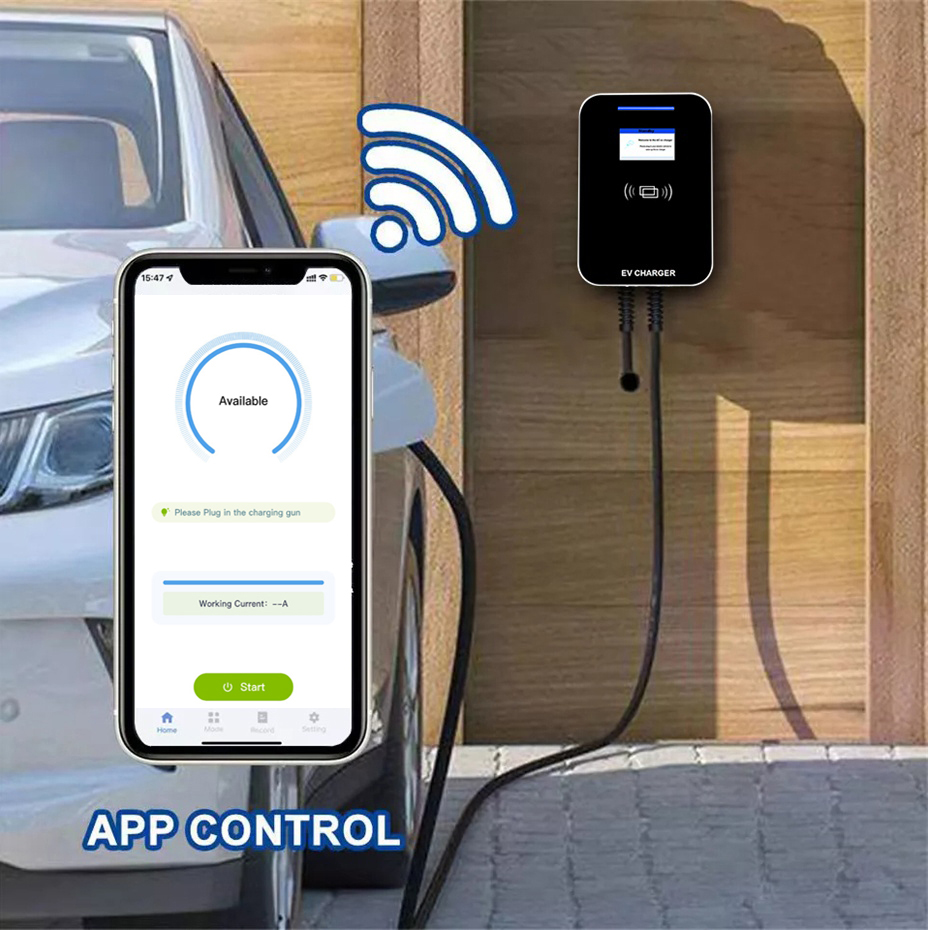

Smart Connectivity: Bluetooth and Wi-Fi enabled, with app integration for remote control and monitoring (optional function).

Installation Flexibility
Suitable for both indoor and outdoor use, this type 1 7.4KW EV home charger is built to withstand harsh weather conditions, including rain, hail, and direct sunlight, ensuring reliable performance in diverse environments.

What OEM /ODM Service Can we Provide?

We have a strong R&D team and a very cooperative sales team, and we are willing to provide ODM/ODM customized services for our customers! We can embed your company's logo in the software, charger body and packaging of our products to showcase brand value. We can also produce EV Chargers and packaging based on your design drawings, or we can provide product design and R&D services according to your needs. For more details, please contact us!
