> Mode2 Portable AC Charger

16A 11KW GBT AC Portable Level 2 Charger

Current: 6A 8A 10A 13A 16A
Voltage: 380V AC
Operation Temp.:-30℃ ~ + 50℃
Charger Box IP Level: IP 67
Product description: Senku Mode 2 portable 240v car chargers include a control box with basic protection functions, such as overheating protection and leakage protection, ensuring safety during the charging process. It su
Inquiry

Product introduction

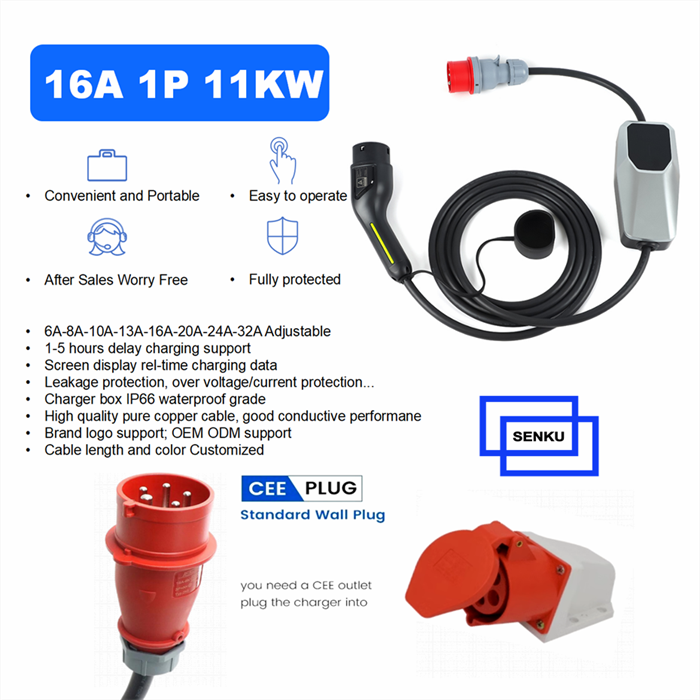

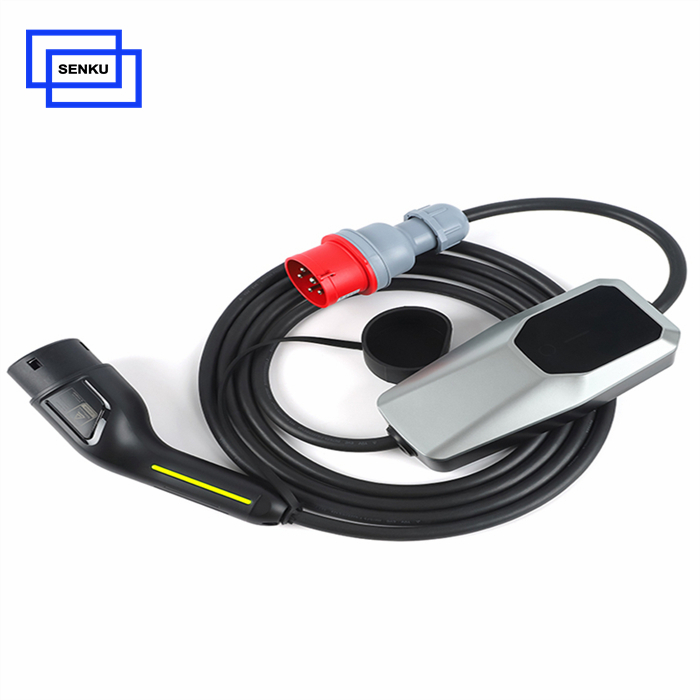

Electric Charging 16A 11KW Portable Level 2 EV Charger

Mode 2 portable 240v car chargers connect to standard household outlets to provide charging for EVs, making they chargers suitable for home or travel use.

Senku Mode 2 portable 240v car chargers include a control box with basic protection functions, such as overheating protection and leakage protection, ensuring safety during the charging process. It suitable for overnight charging after daily short trips, offering a convenient and flexible solution.

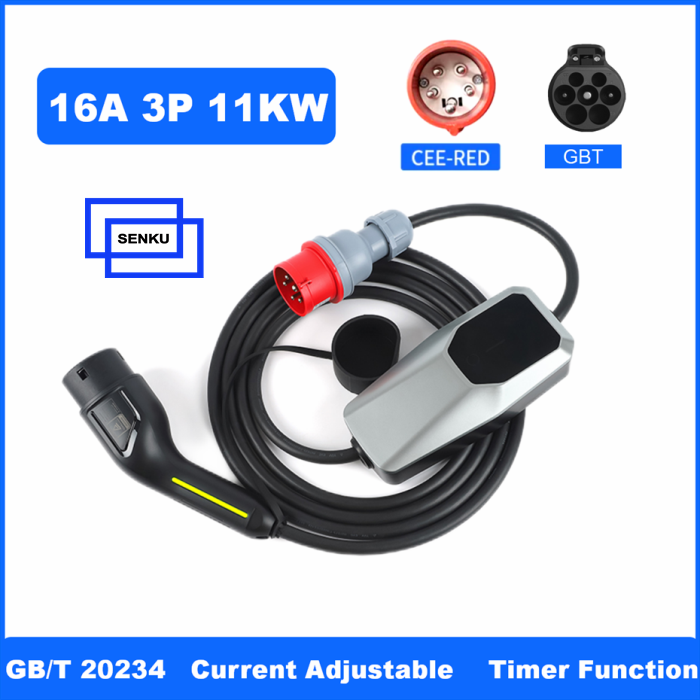

11KW GB/T Portable Level 2 Ev Charger

Basic Data

Portable Charger Electric Performance.
Rated current	6A 8A 10A 13A16A
Rated voltage	380 V AC
Vehicle Side Charging Plug	China GBT AC Plug
Wall Side Power Plug	Schuko / UK 3pins / Type M / Thailand Plug / NEMA 5-15 or customized according to buyer local country standard
Material	Charging Box: Thermoplastic, Flame retardant grade UL94-0; Vehicle Plug Contact Pin: Cooper alloy,sliver + thermoplastic on the top
Operation Temp.	-30℃ ~ + 50℃

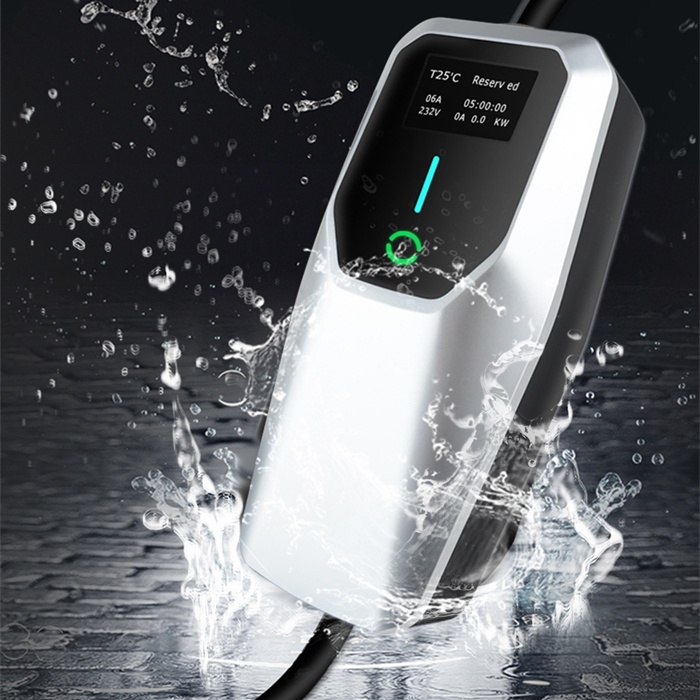

Charger Box IP protection class	IP 67

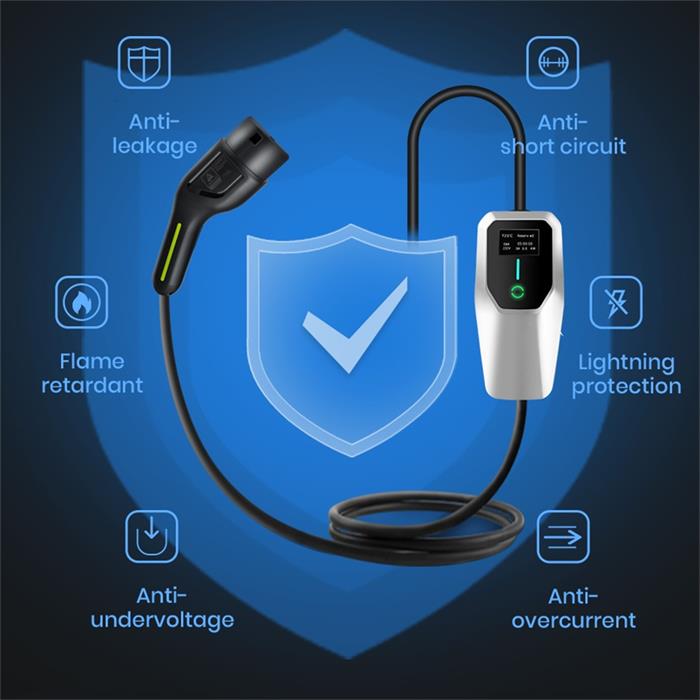

Protection	RCD TypeA Leakage Protection (RCD TypeA +6mA DC=RCD TypeB for option); Over-voltage Protection; Under-voltage Protection; Over- Current Protection; Under- Current Protection; Over-temperature Protection; Lightning Protection; Grounding Protection; Flame-retardant protections etc...
