> Mode2 Portable AC Charger

7.4KW 32A Portable Electric Car Charger

Current: 6A 8A 10A 13A 16A 32A
Voltage: 110V-240V AC
Operation Temp.:-30℃ ~ + 50℃
Charger Box IP Level: IP 67

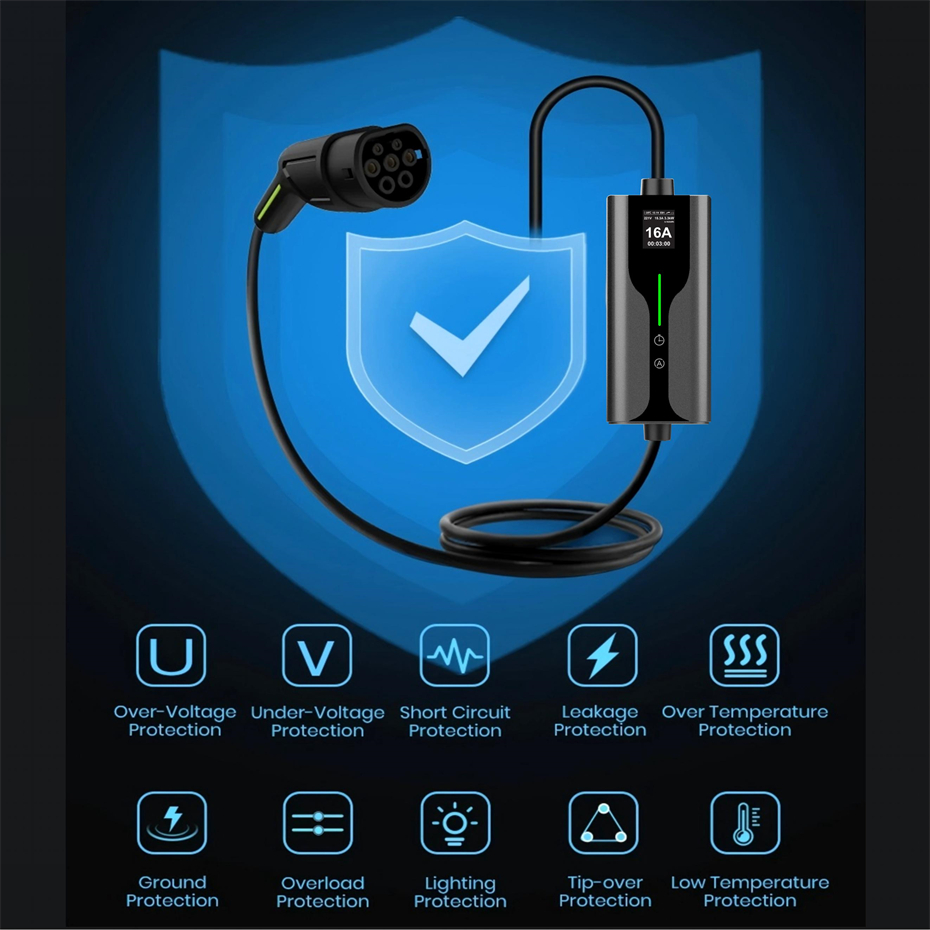

Product description: Senku 7.4KW 32A Portable Electric Car Chargers include a control box with basic protection functions, such as overheating protection and leakage protection, ensuring safety during the charging process
Inquiry

Product introduction

7.4KW 32A Portable Electric Car Charger - Manufacturer, Supplier, Factory

Portable Charger Electric Performance.
Rated current	6A 8A 10A 13A16A 20A 24A 32A adjustable
Rated voltage	110V- 240V AC

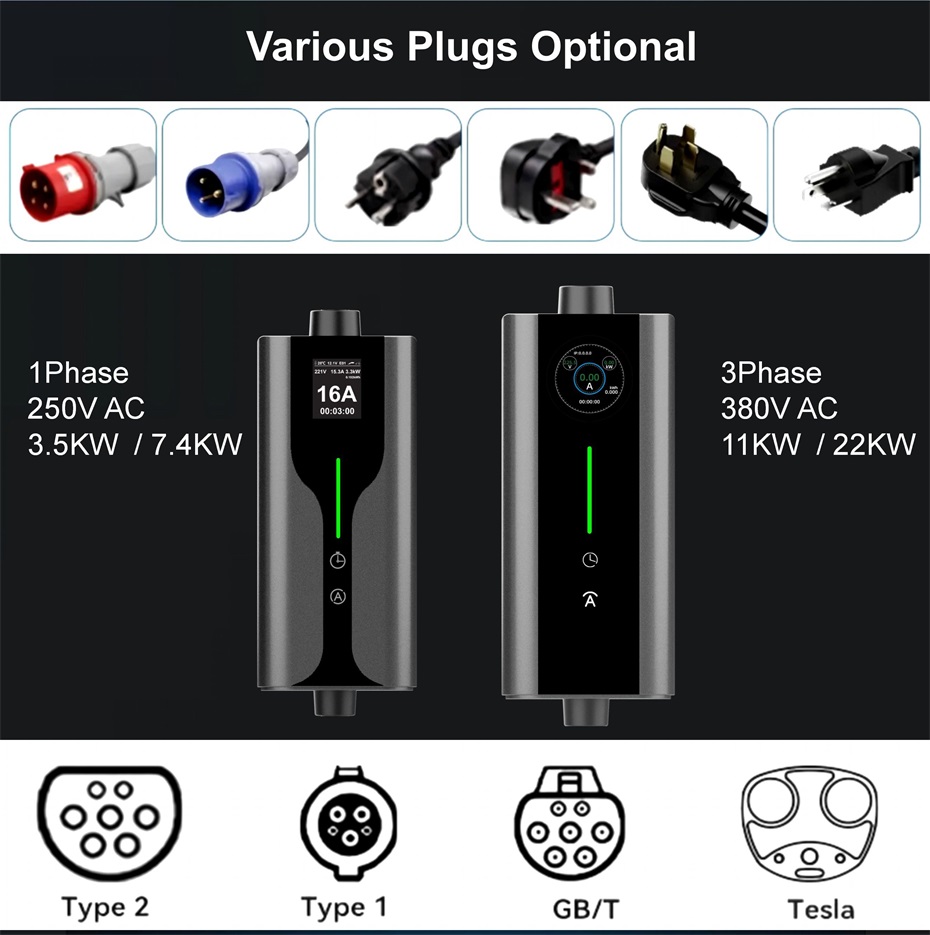

Vehicle Side Charging Plug	Customized According to Car Model
Wall Side Power Plug	Customized According to buyer local country standard
Operation Temp.	-30℃ ~ + 50℃
Charger Box IP protection class	IP 67

Ensure safe charging process

Mode2 portable level 2 chargers are devices used for charging electric vehicles (EVs) and are typically included in the vehicle's portable charging kit. Mode2 portable level 2 chargers connect to standard household outlets to provide charging for EVs, making they chargers suitable for home or travel use.

Senku 7.4KW 32A Portable Electric Car Chargers include a control box with basic protection functions, such as overheating protection and leakage protection, ensuring safety during the charging process. It suitable for overnight charging after daily short trips, offering a convenient and flexible solution.

A Reliable Backup for Stress-Free Travel

Range anxiety—the worry that an electric vehicle might run out of charge before reaching a destination—is a common concern among EV drivers. Carrying a Mode 2 charging cable as a backup provides peace of mind by ensuring a readily available charging option. With its automatic reset function, the charger remains reliable for continuous use.

By keeping this 7.4KW 32A Portable Electric Car Charger on hand, drivers can feel more confident on the road, knowing they have a dependable charging solution whenever they need it.

The 7.4KW 32A Portable Electric Car Charger is designed for ease of use, allowing you to charge your electric vehicle at home or on the go. To ensure safe and efficient operation, please follow the steps outlined below.

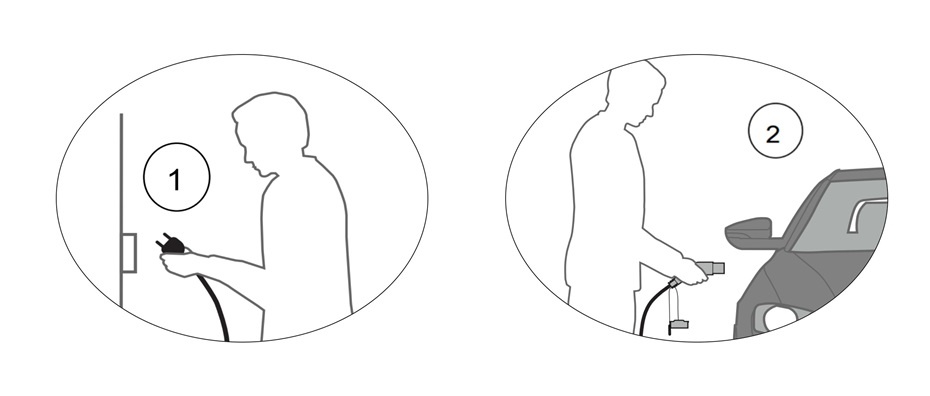

How to Start Charging with the Portable Electric Car Charger

1. Connect the Charger to the Power Supply

Begin by inserting the charger’s power supply plug into a standard household outlet. This will activate the charger, and it will be ready to connect to your electric vehicle.

2. Plug the Charger into the Vehicle

Once the charger is connected to the power supply, take the vehicle’s charging plug and insert it into the electric vehicle’s charging inlet. After the connection is made, the charger will automatically begin the charging session. You will notice the charger’s LED light bar flashing green, indicating that the charging process is in progress.

Helpful Tips:

- Make sure your electric vehicle is parked close enough to the outlet to ensure a smooth and easy connection. The charging cable should comfortably reach the vehicle’s inlet without tension.

- Be cautious not to step on or place any objects on the **7.4KW 32A Portable Electric Car Charger** while in use, as this could cause potential damage to the unit or affect the charging performance.

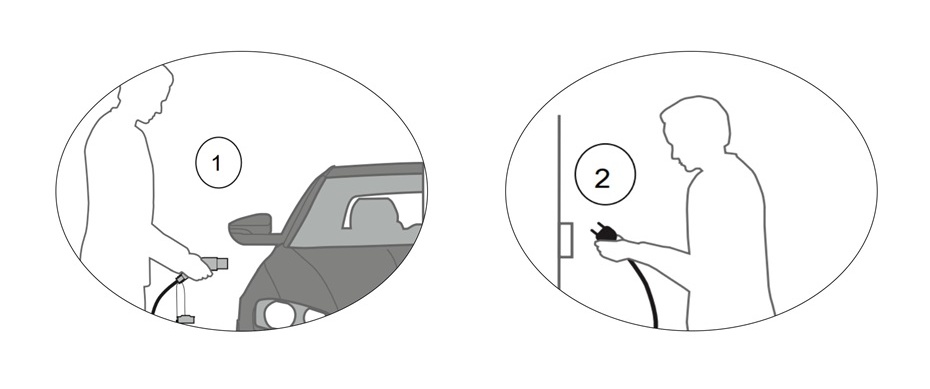

How to Stop Charging with the Portable Electric Car Charger

1. Stop the Charging Session in the EV

To safely stop the charging process, begin by following the instructions within your electric vehicle’s system to end the charging session. This will ensure that the vehicle stops drawing power from the charger.

2. Disconnect the Vehicle Charging Plug

Once the charging session has been halted, carefully remove the charging plug from the vehicle’s charging inlet. This ensures that the connection is safely broken and prevents any electrical issues.

3. Unplug the Charger from the Outlet

After disconnecting the vehicle, the final step is to remove the charger’s power supply plug from the household outlet. This completes the charging process and ensures the charger is no longer connected to the power source.

Important Warning:

It is crucial to avoid disconnecting the charger from the domestic outlet while it is still actively charging the vehicle. An improper disconnection could lead to charger damage or, in rare cases, result in dangerous electrical situations. Always follow the correct disconnection sequence to ensure safety.

Disposal Instructions for Portable Electric Car Charger

The 7.4KW 32A Portable Electric Car Charger is an electronic device and should be disposed of properly. It is essential to follow the appropriate disposal guidelines to avoid environmental harm. This charger should not be disposed of with regular household waste. Instead, please take it to a designated electronic waste recycling facility, where it can be properly processed in line with local recycling and waste disposal regulations.

By properly disposing of the charger, you help contribute to environmental protection and promote sustainable practices.
