> Mode2 Portable AC Charger

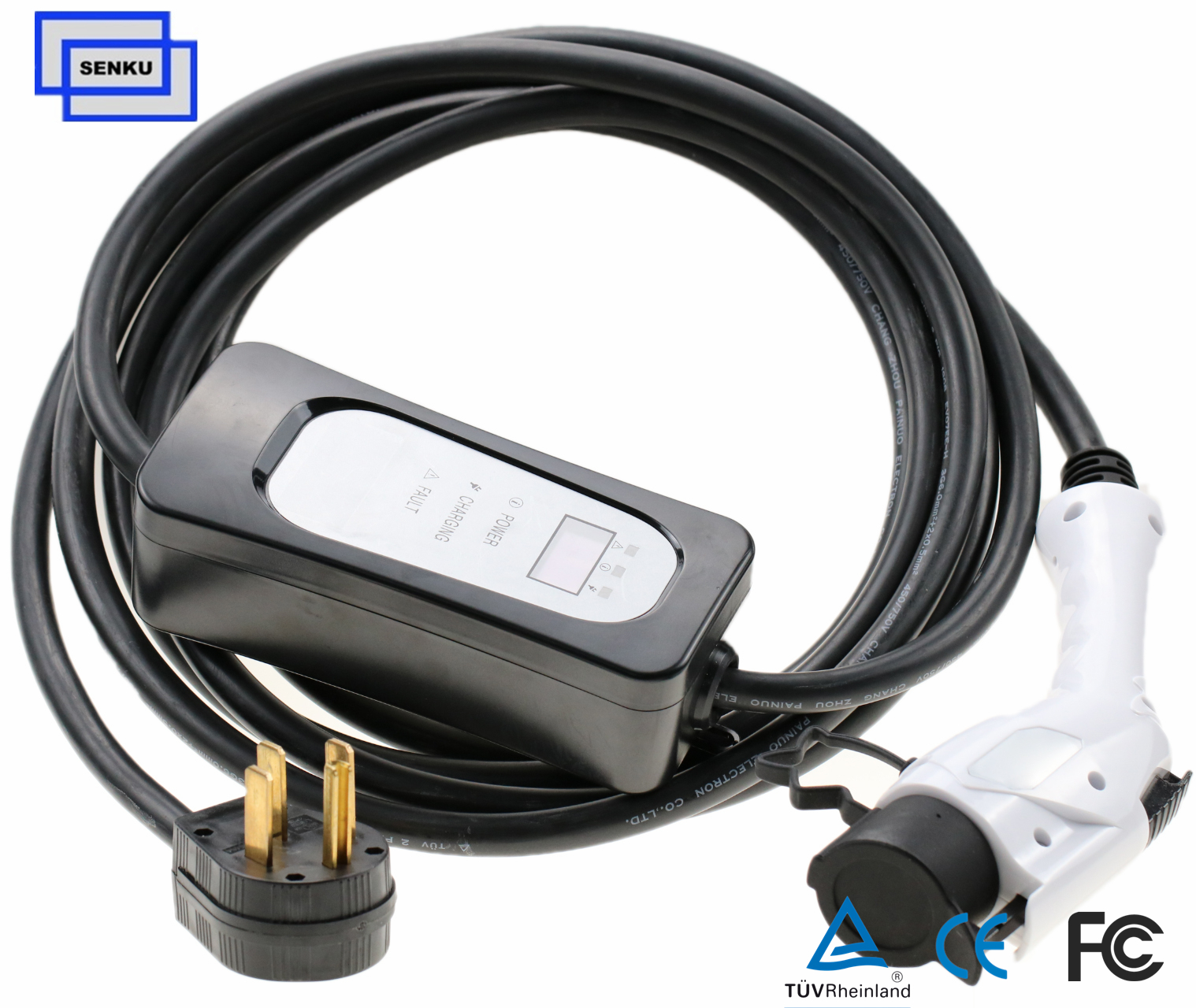

Current Fixed Type1 40A PortableEVSE
- Rated current: 40A
- Rated voltage: 110V-240V AC
- Operation Temp.:-30℃ ~ + 50℃
- IP protection class: IP 54 ( working condition)
- Product description: The 40 ev charger designed with type1 charging plug, it can charging all the sea j1772 standard type1 electric vehicles. And the charger with the a intelligent PCBA board, it monitor the real time vol
Product introduction
Features

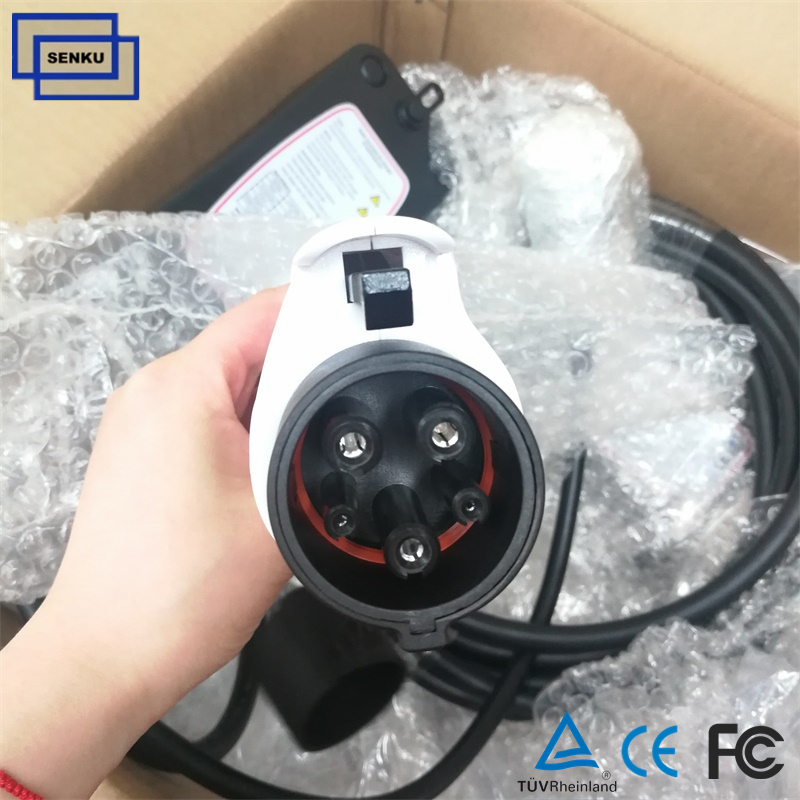

1- The portable evse charger can charging the SAE j1772 standard Type1 electric cars..
2- Whole charger CE FCC standard.
3- With this evse charger, you do not need to install on the wall, you can put the charger in your electric vehicle and charging your evs when travelling.
4- Output current 32A , up to 7.4kw, real home fast charger.
Basic Data
|
Electric Performance. |
|
|
Rated current |
40A |
|
Rated voltage |
110V AC to 240V AC |
|
Charging Plug |
IEC 62196 Standard Type2 Plug |
|
Insulation resistance |
>1000MΩ (DC500V) |
|
Terminal temperature rise. |
<50K |
|
Withstand Voltage |
2000V |
|
Mechanical life |
no-load plug in / plug out > 10000 times;can afford 1m drop test and 2T vehicle run over pressure |
|
Materia |
Charging Box: Thermoplastic, Flame retardant grade UL94-0; Pin: Cooper alloy,sliver + thermoplastic on the top |
|
Operation Temp. |
-30℃ ~ + 50℃ |
|
IP protection class |
IP 54 |
|
Protection |
RCD TypeA Leakage; Over-voltage;Under-voltage;Overload protection (self-checking recover); Over- temperature and Lightning protection |
Tag: evse charger, manufacturers, suppliers
