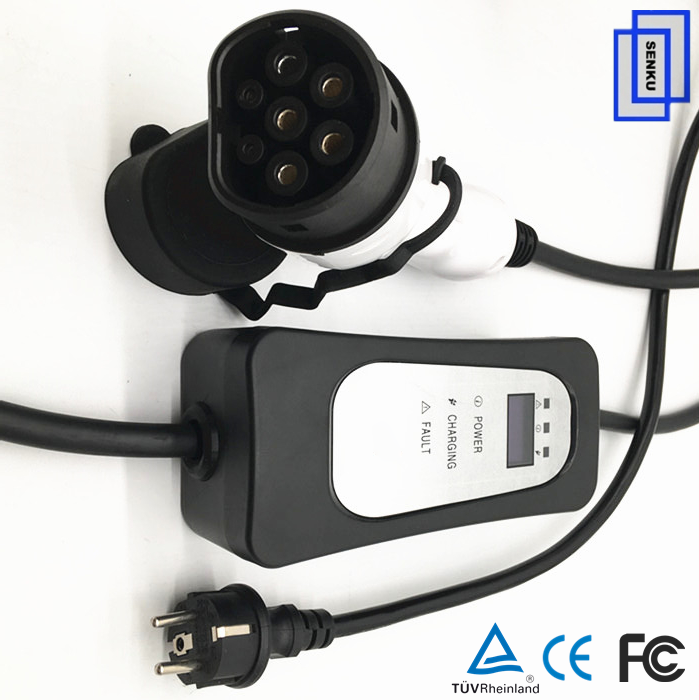

> Mode2 Portable AC Charger

Rated current: 16A
Rated voltage: 110V-240V AC
Operation Temp.:-30℃ ~ + 50℃
IP protection class: IP 54 ( working condition)

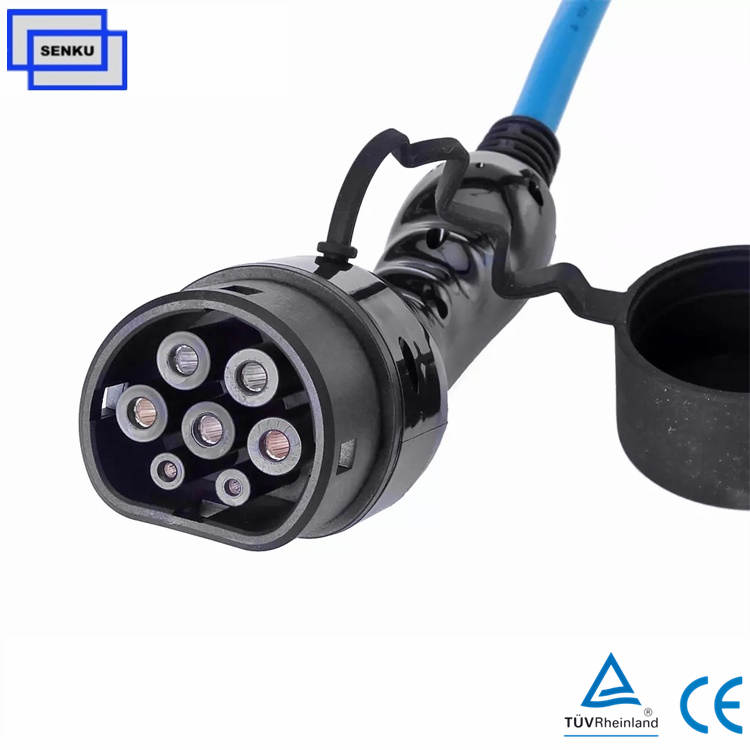

Product description: The 16 ev charger designed wirh type2 charging plug, it can charging all the IEC62196standard type2 electric vehicles. And the charger with the a intelligent PCBA board, it monitor the real time volt
Inquiry

Features

1- The home charger can charging the can charge EU standard type2 electric vehicles.

2- The home charger meet the IEC 62196:2010 and the newest IEC 61851-1: 2017 standards. Whole charger CE Certificated.

3- With this charger, you do not need to install on the wall, you can put the charger in your electric vehicle and charging your evs when travelling.

4- Current 16A , up to 3.7KW output.

Basic Data

Electric Performance.
Rated current	16A
Rated voltage	110V AC to 240V AC
Charging Plug	IEC 62196 Standard Type2 Plug
Insulation resistance	>1000MΩ (DC500V)
Terminal temperature rise.	<50K
Withstand Voltage	2000V
Mechanical life	no-load plug in / plug out > 10000 times;can afford 1m drop test and 2T vehicle run over pressure
Materia	Charging Box: Thermoplastic, Flame retardant grade UL94-0; Pin: Cooper alloy,sliver + thermoplastic on the top
Operation Temp.	-30℃ ~ + 50℃
IP protection class	IP 54
Protection	RCD TypeA Leakage; Over-voltage;Under-voltage;Overload protection (self-checking recover), Over temperature, Grounding, Lightning and Flame-retardant protections
