Megawatt Charging System (MCS): Advancing Commercial EV Charging with Power, Efficiency, and Versatility

• Technical Specifications and Standards: MCS is designed to deliver extremely high charging power, with a capacity ranging from 1,000 kW to 3,750 kW, voltage levels up to 1,250 V, and a current of up to 3,000 A using liquid - cooled connectors. It was developed under the initiative of the Charging Interface Initiative e.V. (CharIN). This standardization ensures interoperability across different vehicle manufacturers, allowing any compatible commercial vehicle to use an MCS charging station. For example, trucks from various brands like the Tesla Semi, Volvo FH Electric, etc., can all utilize MCS charging infrastructure as they develop MCS support.

• Faster Charging Times: One of the most significant benefits for commercial vehicles is the dramatic reduction in charging times. Commercial vehicles, especially long - haul trucks, need to minimize downtime for charging to maintain efficient operations. With MCS, a heavy - duty EV equipped with an 800 kWh battery can be nearly fully charged in as little as 20 minutes. In the case of EU - regulated truck driver rest breaks (45 minutes after every 6 hours of driving), MCS enables trucks to replenish a cruising range of more than 400 kilometers during this break, ensuring that the charging process does not significantly disrupt the transportation schedule.

• Increased Payload Capacity: Commercial vehicles often carry heavy loads, and the large batteries required for long - range travel can add substantial weight, reducing the payload capacity and thus affecting profitability. By enabling faster charging, MCS allows for the use of smaller, lighter batteries in some cases. Instead of relying on massive batteries for extended ranges without frequent charging, vehicles can recharge quickly, which means they can carry more payload while still meeting their operational range requirements.
•

• Scalability and Fleet Efficiency: For commercial fleets, MCS offers scalable efficiency. It enables rapid fleet rotations as vehicles can be charged and back on the road in a short time. This is crucial for industries such as logistics, where time is of the essence. A fleet manager can ensure that more deliveries are made in a day as vehicles spend less time charging and more time in transit. Additionally, MCS is designed with future - ready features like support for vehicle - to - grid (V2G) and bidirectional power flows. V2G could potentially allow commercial vehicles to sell excess energy back to the grid during peak demand periods, adding an additional revenue stream for fleet operators.

• Support for Net - Zero Goals: The widespread adoption of MCS accelerates the shift towards electric freight, which is a crucial part of achieving net - zero emissions goals in the transportation sector. By making electric commercial vehicles more viable with faster charging, it encourages more companies to switch from diesel - powered trucks and buses to electric alternatives. This helps in reducing greenhouse gas emissions, improving air quality, and contributing to a more sustainable transportation ecosystem.

• Versatility in Application: MCS is suitable for a wide range of commercial vehicles, including long - haul electric trucks, intercity electric buses, construction and mining EVs, airport ground support equipment, military and emergency vehicles, and port terminal logistics machinery. Each of these vehicle types has unique charging requirements, and MCS can meet the high - power demands for quick and efficient charging. For example, electric buses in urban areas can quickly recharge during short layovers at terminals, while construction and mining EVs can get a rapid charge during equipment change - over periods.

Megawatt Charging System (MCS) EV Charging Cable

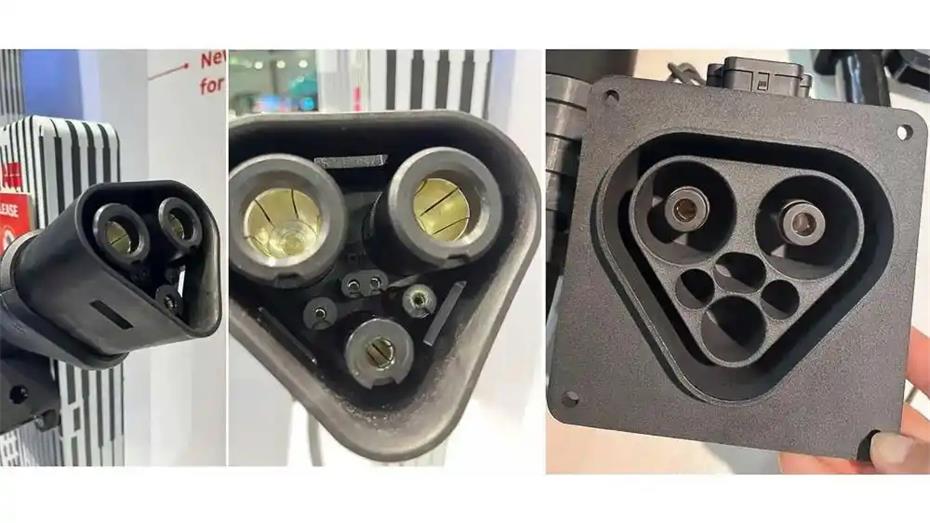

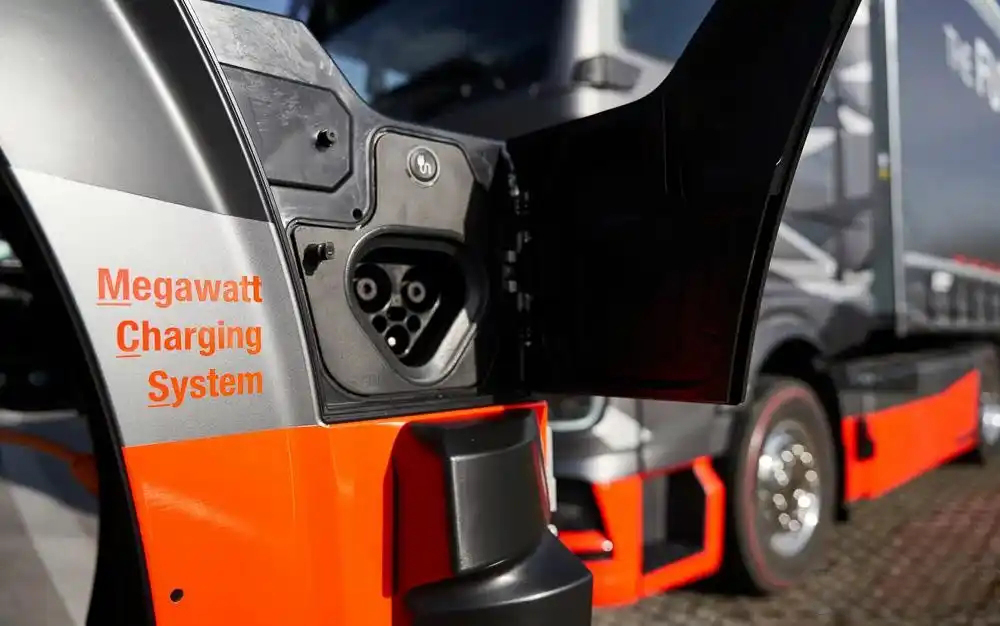

Megawatt Charging System (MCS) EV Charging Inlet Port
