> Mode2 Portable AC Charger

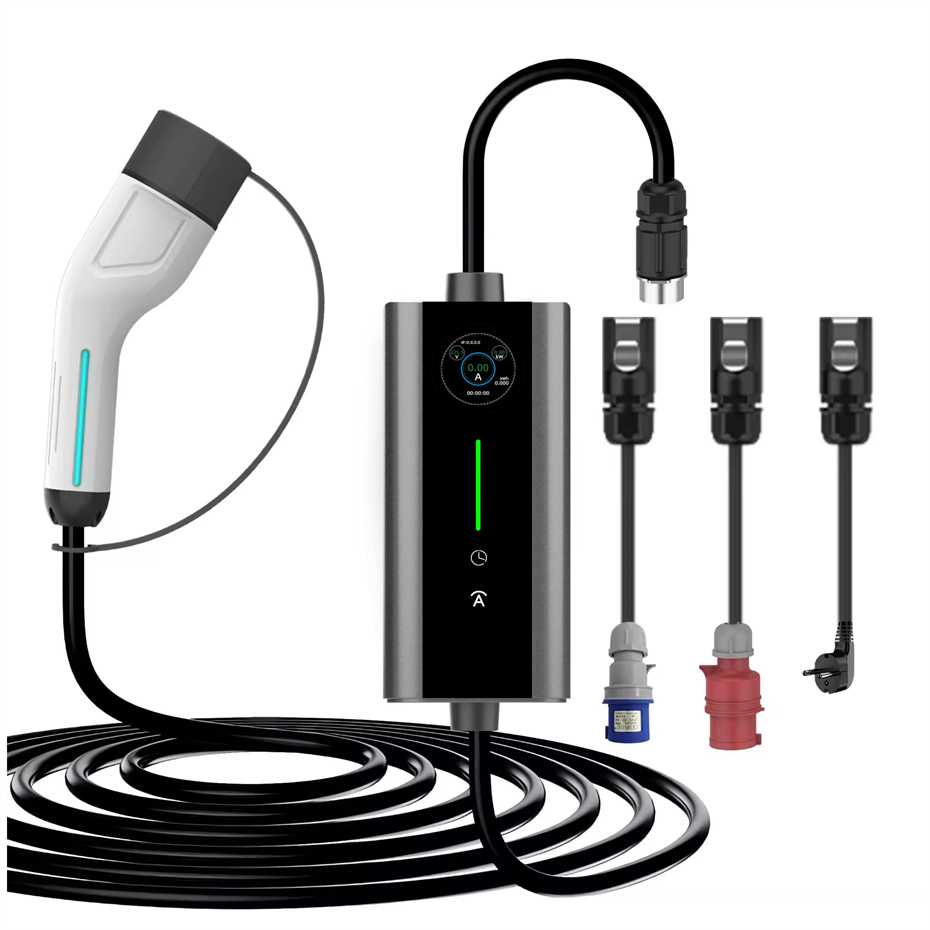

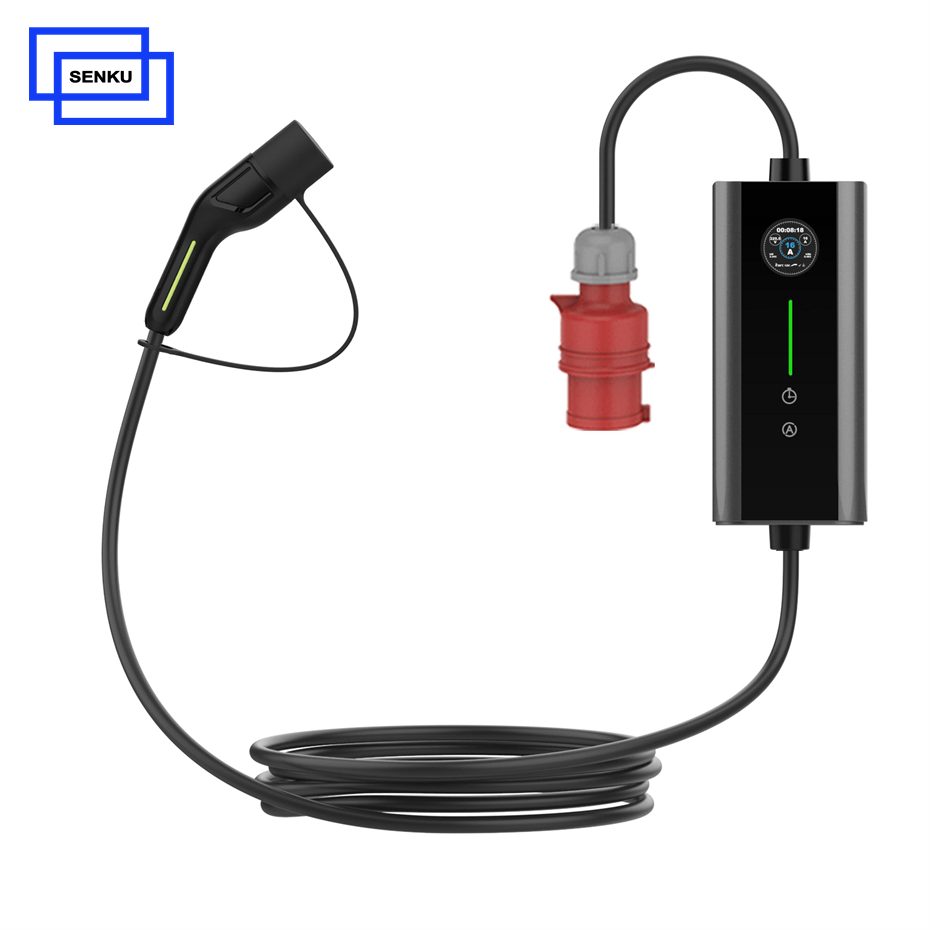

22KW Portable Electric Car Charger 32A

Rated current: 32A (6A 8A 10A 13A 16A 20A 24A 32Aadjustable)
Rated voltage: 380V AC
Operation Temp.:-30℃ ~ + 50℃
IP protection class: IP 66
Product description: The 22KW portable electric car charger 32A is designed to charge electric vehicles efficiently, using a standard household outlet as the power source. It is ideal for both home use and travel, offerin
Inquiry

Product introduction

22KW Portable Electric Car Charger 32A - Manufacturer, Supplier, Factory

Portable Charger Electric Performance.
Rated current	32A (6A 8A 10A 13A 16A 20A 24A 32A adjustable)
Rated voltage	380V AC
Vehicle Side Charging Plug	IEC 62196 Standard Type 2 Plug / GBT AC charging plug
Wall Side Power Plug	Red CEE industry plug
Operation Temp.	-30℃ ~ + 50℃
IP protection class	IP 66
Protection	Leakage Protection Over-voltage Protection Under-voltage Protection Over- Current Protection Under- Current Protection Over-temperature Protection Lightning Protection Grounding Protection Flame-retardant protections

Features of the 22KW Portable Electric Car Charger 32A

-> Adjustable Charging Current: A convenient switch to select from various charging currents, including 6A, 8A, 10A, 13A, 16A, 20A, 24A, and 32A, allowing flexibility for different charging environments.

-> Time Delay Function: A built-in timer that allows you to set a 1-5 hour delay before charging starts, enabling electric vehicle owners to take advantage of off-peak electricity rates, such as those available at midnight.

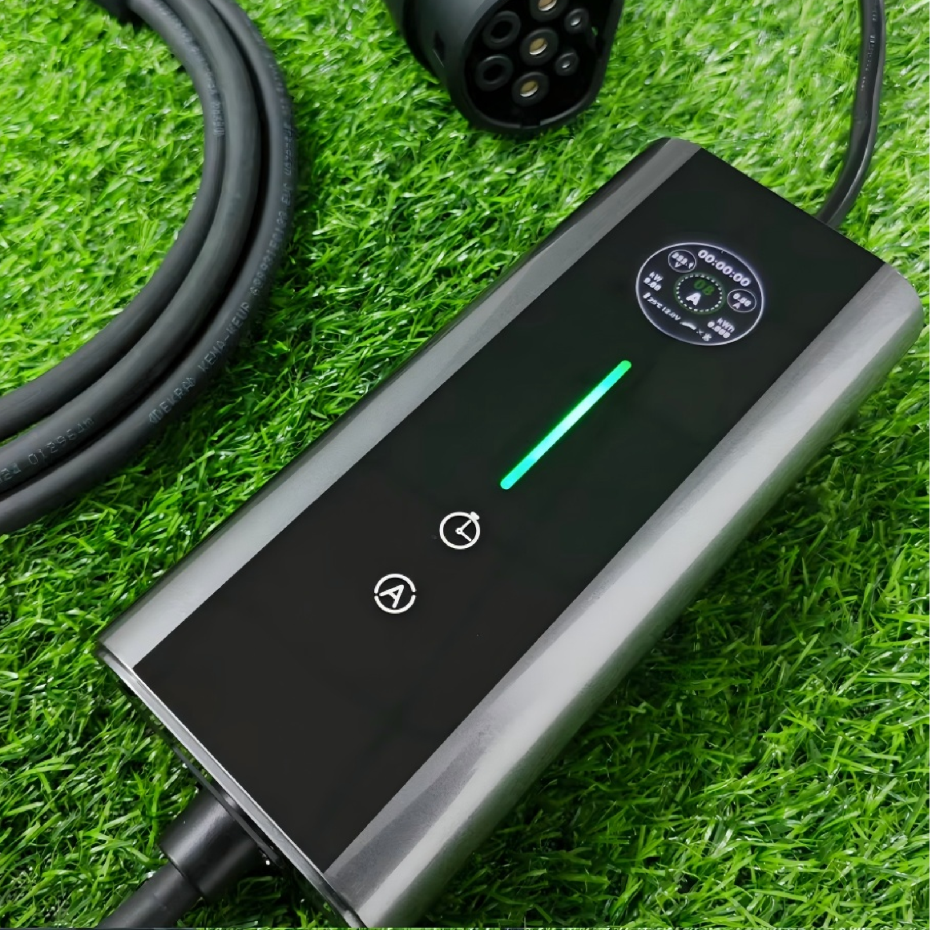

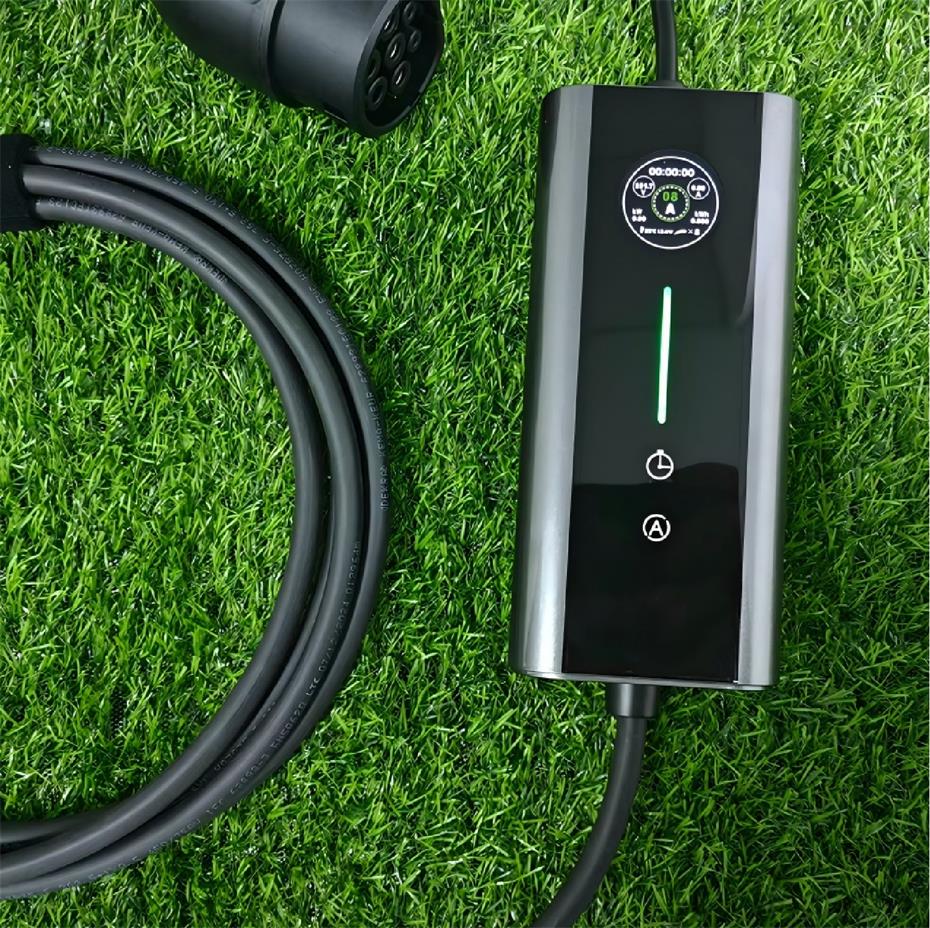

-> Display Screen Control Box: The 22KW portable electric car charger 32A comes with a control unit featuring a display screen that shows real-time charging information for added convenience.

-> Certifications: Meets IEC62196-2, EN62752 standards, and is CE certified for safety and reliability.

-> Connector Options: Compatible with Type 1, Type 2, and GBT connectors for flexible vehicle compatibility.

The 22KW portable electric car charger 32A is designed to charge electric vehicles efficiently, using a standard household outlet as the power source. It is ideal for both home use and travel, offering great portability and convenience.

Ensuring Safe Charging for You and Your Vehicle

Safety is a top priority when working with electrical systems. The 22KW portable electric car charger 32A has been engineered to meet the stringent IEC 62752 safety standards, ensuring the protection of both you and your electric vehicle from potential electrical hazards, including damage, electrical shock, and fire.

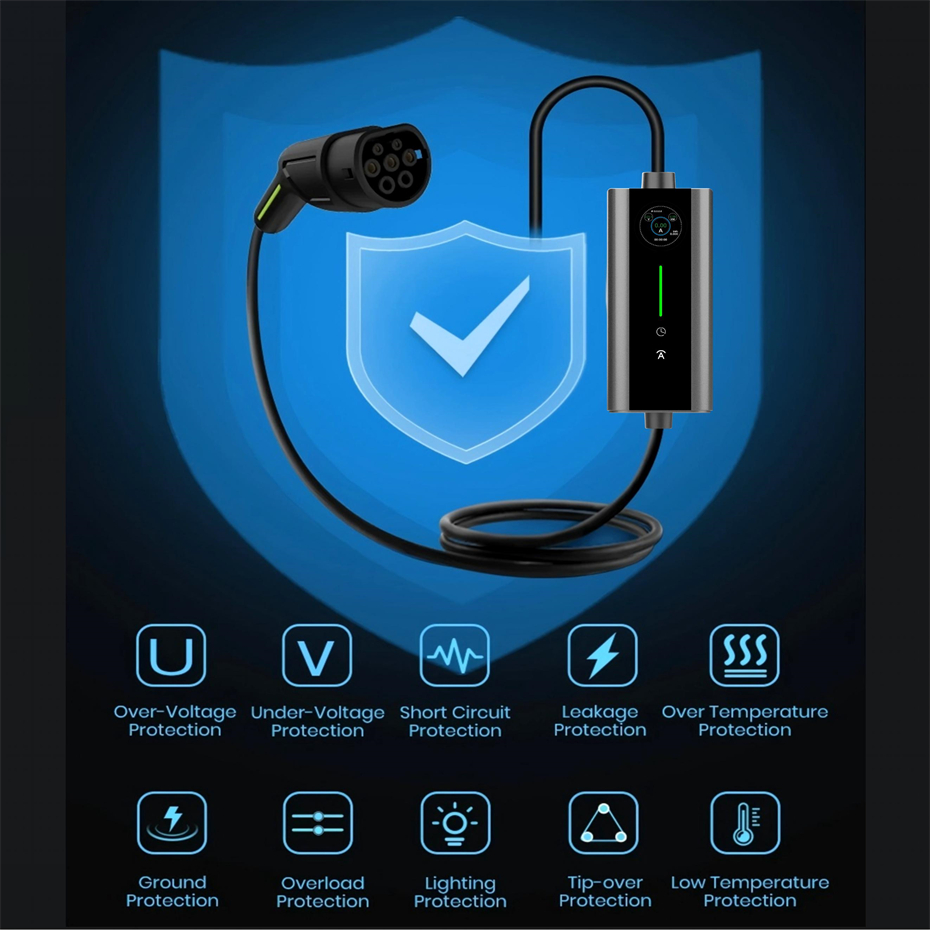

Key Safety Features

1. Shock Protection:** All charging terminals and interfaces are fully insulated to prevent accidental contact. The charger is equipped with a **Type B Residual Current Device (RCD)**, which detects fault currents and automatically stops charging to prevent any electrical risks.

2. Ground Monitoring (North America Only): The IC-CPD (In-Cable Control and Protection Device) checks the resistance of the protective ground conductor. If the resistance exceeds safe limits, the charger will automatically halt the charging process.

3. Overheating Protection: Temperature sensors embedded in the **IC-CPD** box constantly monitor the heat levels. If the temperature becomes too high, the system will shut down the charging process to prevent overheating.

4. Short-Circuit Protection: The **IC-CPD** is designed to protect the electric vehicle from short circuits during the charging process, ensuring that no damage occurs.

5. Overvoltage Protection: The charger is equipped with overvoltage protection to ensure that the electric vehicle's electrical components are safeguarded against excessive voltage levels.

By incorporating these advanced safety features, the 22KW portable electric car charger 32A provides peace of mind, ensuring that each charging session is safe, reliable, and secure.

How to Work with Us

1. Reach Out: Contact us by email or phone to discuss your specific needs and requirements.

2. Consultation: Our team of experts will get in touch to offer tailored solutions, helping you choose the most suitable product for your needs.

3. Production & Delivery: Once the product specifications are confirmed, we proceed with production and ensure timely delivery.

4. Installation & Support: After receiving the product, we provide full installation guidance and usage support to ensure seamless operation.

Talk to Experts
