> Mode2 Portable AC Charger

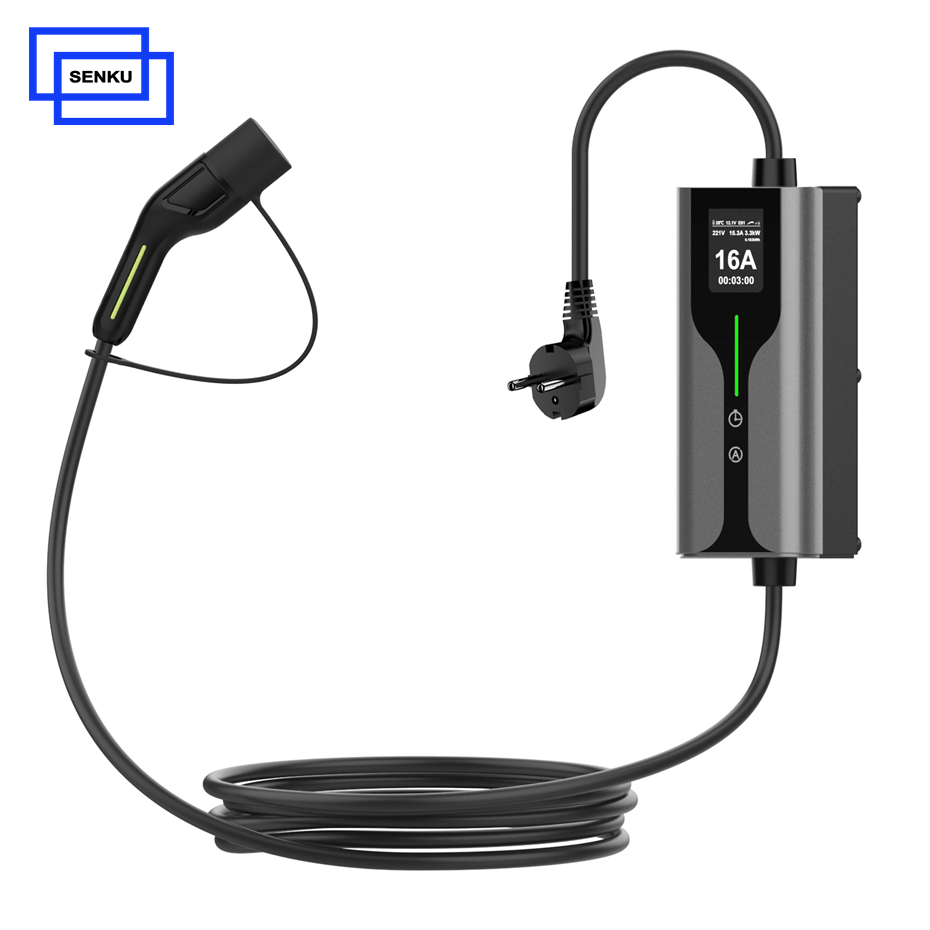

3.5KW Portable Charger For EV

Current: 6A 8A 10A 13A 16A
Voltage: 110V-240V AC
Operation Temp.:-30℃ ~ + 50℃
Charger Box IP Level: IP 65
Product description: The 3.5KW portable charger for EV is a versatile charging solution designed for electric vehicle owners. It consists of a compact charging unit equipped with a control circuit board and built-in safet
Inquiry

Product introduction

Hot Best Sell Cheapest 3.5KW Portable Charger For EV - Manufacturer, Supplier, Factory

Portable Charger Electric Performance.
Product Name	3.5KW Portable Charger For EV
Rated current	6A 8A 10A 13A16A optional
Rated voltage	110V- 240V AC
Vehicle Side Charging Plug	IEC 62196 Type 2 Plug Or SAE J1772 Type 1 plug Or China GBT AC Plug Or Tesla NACS plug
Wall Side Power Plug	Customized according to buyer local country standard
Operation Temp.	-30℃ ~ + 50℃
Charger Box IP protection class	IP 67

Features of the 3.5KW Portable Charger for EV

The 3.5KW portable charger for EV is a versatile charging solution designed for electric vehicle owners. It consists of a compact charging unit equipped with a control circuit board and built-in safety protections, allowing it to be connected to standardd household outlets for convenient use.

This 3.5KW portable charger for EV is designed with essential safety features, effectively preventing risks such as overcurrent and short circuits. It is primarily intended for home charging but can also be used in outdoor settings when needed. As a Mode 2 charger, it provides a user-friendly experience without requiring additional charging infrastructure.

Key Features

-> Adjustable Charging Current: Switchable between 6A, 8A, 10A, 13A, and 16A.

-> Customization Services: Offers branding options with OEM and ODM support.

Customization Options

Customers can select from various customization services to match their brand identity and specific needs:

Branding: Logos can be printed on the charger, charging connector, and packaging.

Packaging Design: Custom patterns, labels, and other package details are available.

Color Customization: The charger plug, control box, and cable can be tailored to preferred colors.

OEM & ODM Services: Custom charger development and design based on customer specifications.

Hot Best Sell Cheapest 3.5KW Portable Charger For EV - Manufacturer, Supplier, Factory

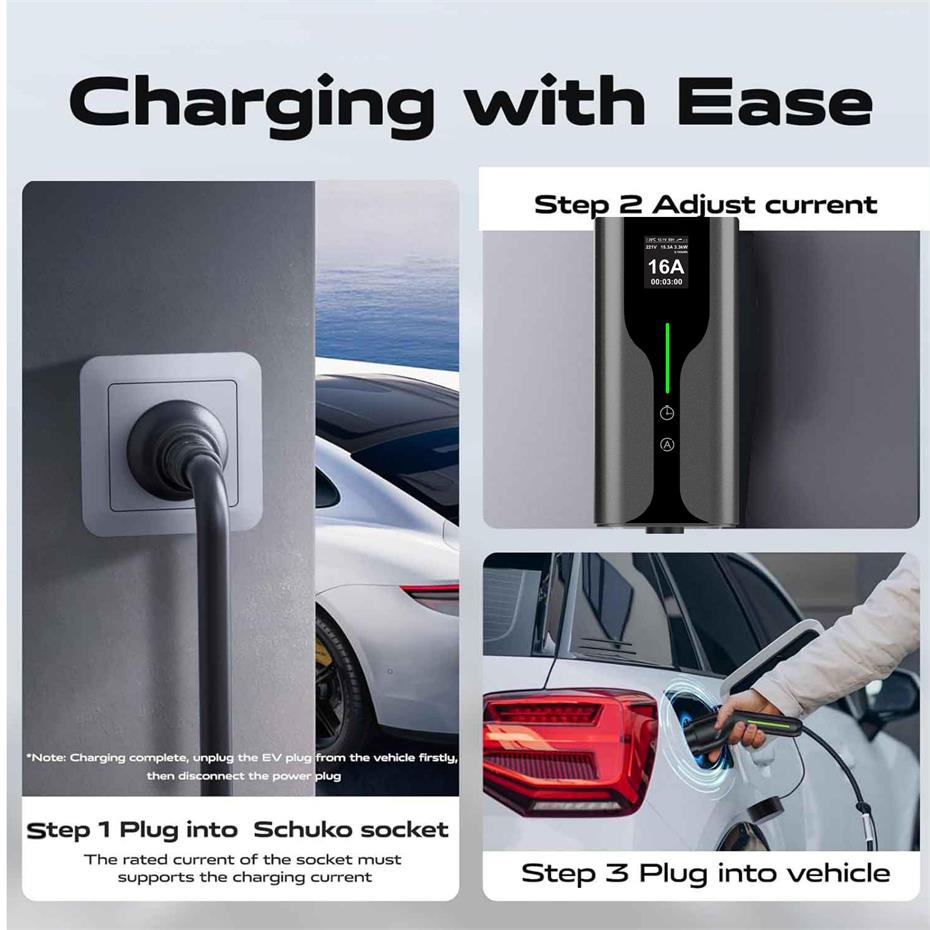

How to Use the 3.5KW Portable Charger for EV

- > Starting the Charging Process

Before beginning, check both the household outlet and the vehicle’s charging port for any damage or debris. Follow these steps:

1) Insert the plug into the household power outlet; the charger will conduct an automatic self-test.

2) Connect the charging plug to the vehicle’s charging inlet. Charging will commence automatically.

- > Stopping the Charging Process

⚠ Warning: Never disconnect the charger from the household outlet while the vehicle is actively charging. Always stop charging first before unplugging.

To end the charging process:

1) Disconnect the plug from the vehicle’s charging port.

2) Unplug the charger from the household power outlet.

Maintenance and Care

-> Routine Inspections

Ensure the plugs remain dry and free of dust, dirt, or debris.

Regularly examine the control box for cracks or signs of damage.

Inspect the charging cable for wear and tear.

Check the household outlet for signs of deterioration.

When not in use, unplug the charger from the outlet.

-> Cleaning Guidelines

Always unplug the 3.5KW portable charger for EV before cleaning.

Use a damp cloth to wipe down surfaces. Avoid direct water exposure and harsh chemicals.

Tips: Please check which type charging inlet socket of your electric vehicle car, and then choose portable charger with correct charging plug.

Mode 2 portable EV Chargers are mobile charging devices commonly used for temporary charging of electric vehicles. This 3.5KW portable ev chargers are equipped with control and protection devices to ensure charging safety. Users can connect them to ordinary household power outlets and use an intermediate control box to transfer power to the vehicle. Their convenience and ease of use make them a backup choice for every electric vehicle owners, especially when dedicated charging stations are unavailable..

Hot Best Sell Cheapest Portable Charger 3.5KW Type 2 Type 1 GBT For EV
