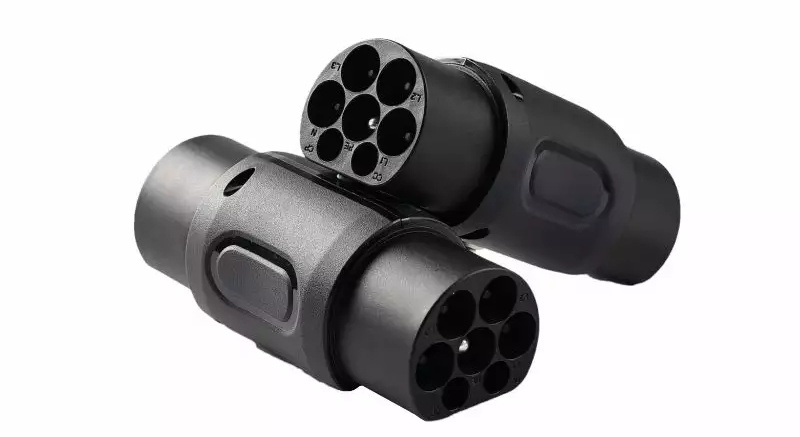

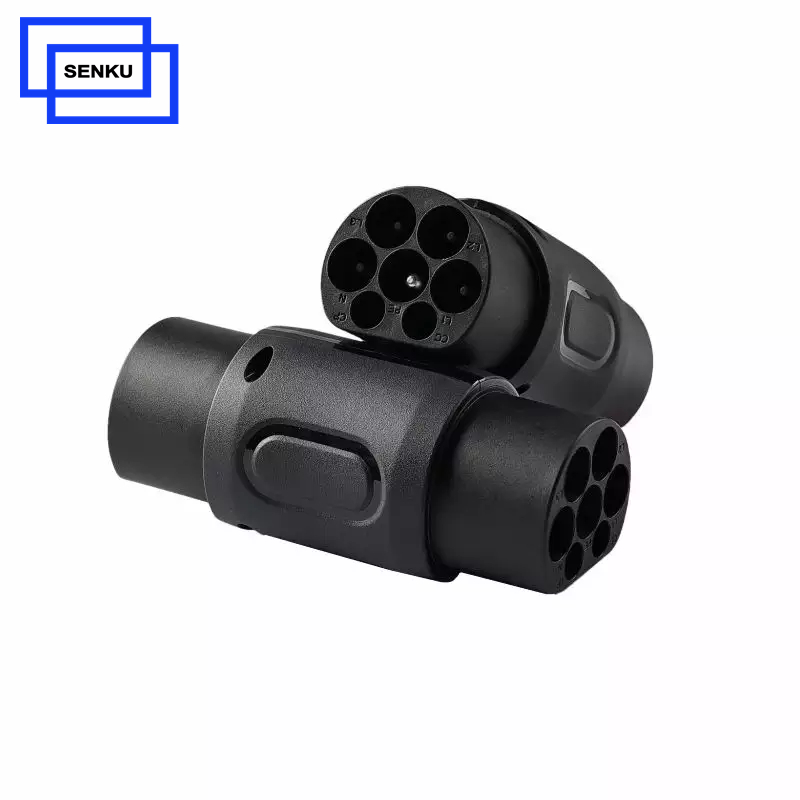

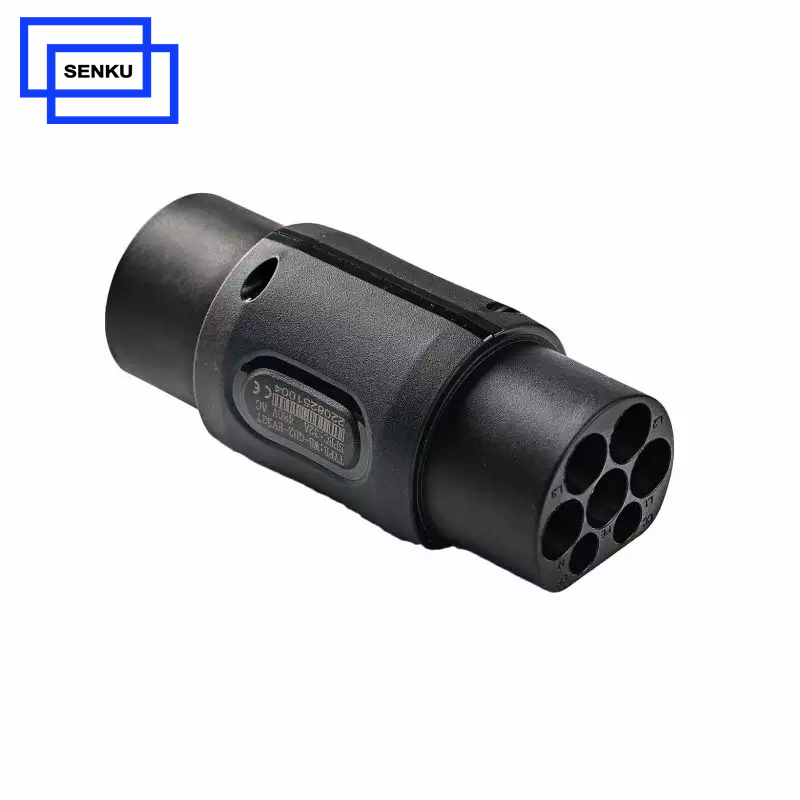

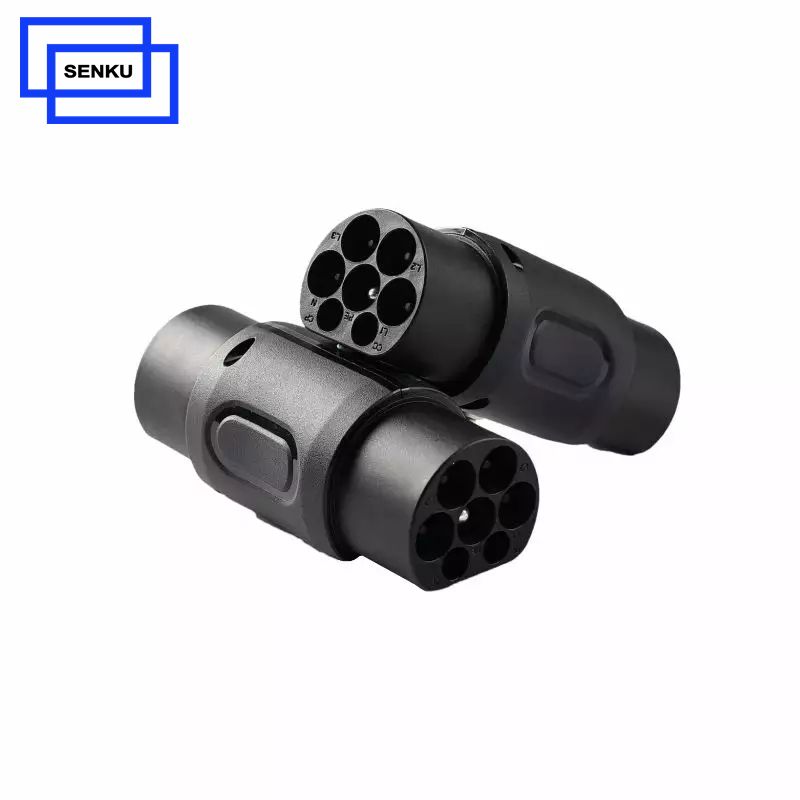

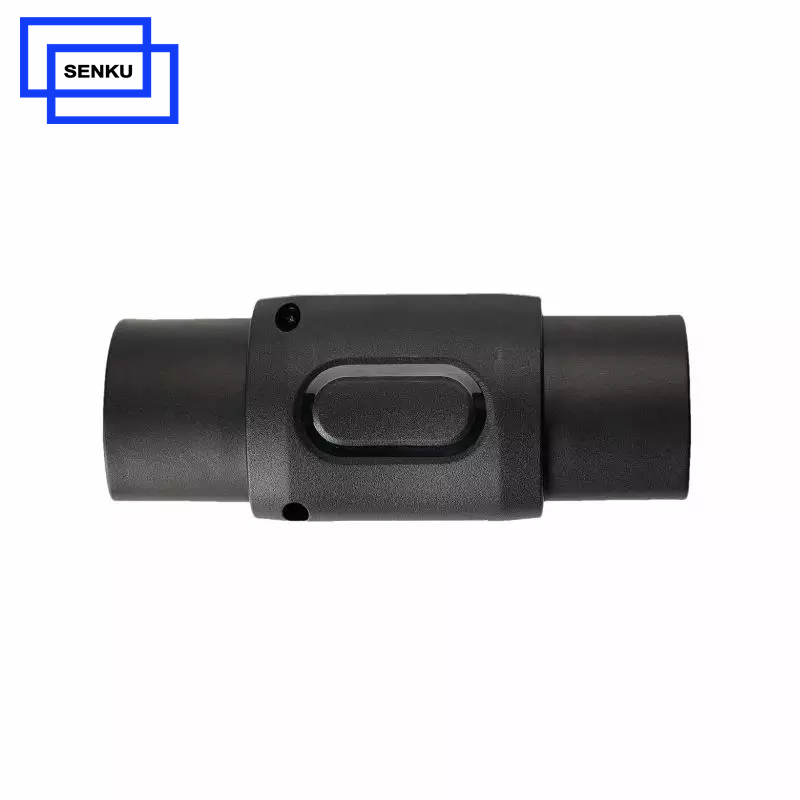

China Electric Car Type 2 to GBT Adapter
- Rated Current: 32A
- Rated Voltage: 250V AC
- Certificate: CE
- IP Level: IP54
- Product description: The 32A 250V AC gbt adapter use to charge a China GBT standard electric car on a Europe Type 2 EV charging station.
Product introduction
China Electric Car Type 2 to GBT Adapter
Technical Data
| Model |
Type 2 to GBT Adapter (SK-ATERS-EV32AGBT) |
|
Input Features |
|
|
Rated Voltage |
250V AC |
| Rated Current | 32A |
|
Case material |
Thermoplastic |
|
Terminal |
Copper alloy,silver plating |
|
Flame retardant grade |
UL94 V-0 |
|
Coupled Force |
45N＜F＜100N |
|
Impact of External Force |
1M drop and 2T run over |
|
Operating Temperature |
-30℃~ +50℃ |
|
Cable Length |
No visual cable design |
|
Application |
Charging a GBT EV on a IEC 62196 Type 2 EVSE |
|
Environment Features |
|
|
Working Temperature（℃） |
-30 ~ +50℃ |
|
Relative Humidity |
5~95% no condensation |
| Safety | |
|
Certification |
CE |
