> Ev Charging Plugs

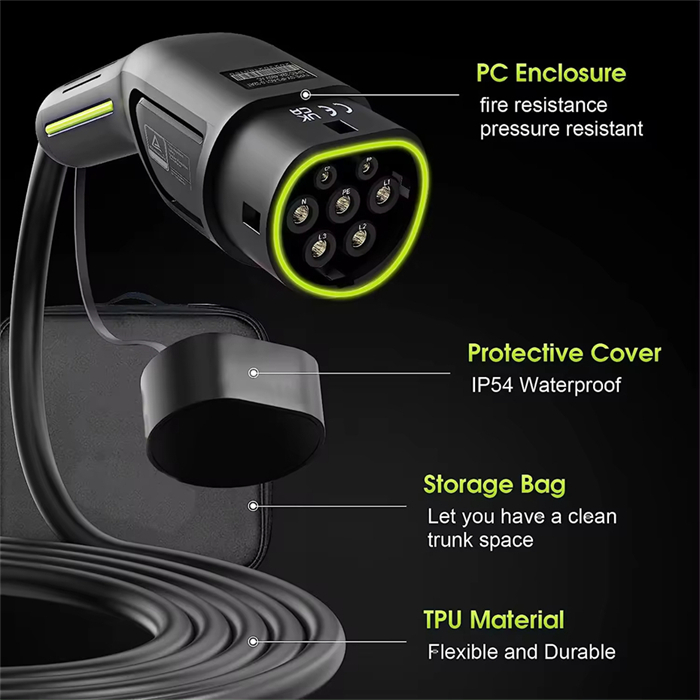

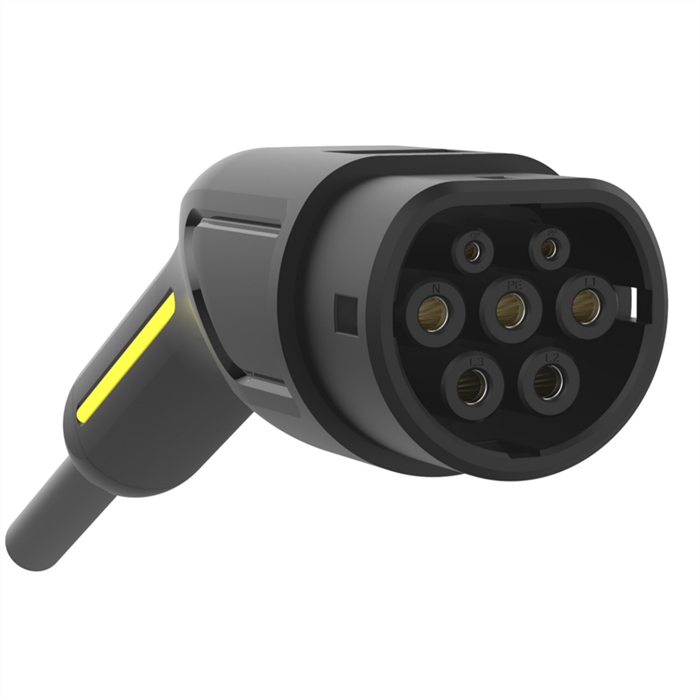

V2 16A 480V AC Type 2 EV Type 2 Plug
- Rated Current: 16A
- Operate Voltage: 480V AC
- Certificate: TUV CE RHOS
- IP Level: IP55
- Product description: Senku European standard AC charging gun (type 2 charger plug) is a high-quality charging device designed based on the international standard IEC 62196, aimed at providing faster, safer, and more conve
Product introduction
Level 2 Car Charging Station Ev Type 2 Plug
Electric Performance.
Rated current
16A
Operate voltage
250V AC
Insulation resistance
>1000MΩ (DC500V)
Terminal temperature rise.
<50K
Withstand Voltage
2000V
Contact Resistance
0.5 megohm
Mechanical life
no-load plug in / plug out > 10000 times
Materia
Thermoplastic, Flame retardant grade UL94-0;
Pin: Cooper alloy,sliver + thermoplastic on the top
Operation Temp.
-30℃ ~ + 50℃
IP protection class
IP 54
Standard
IEC 62196-1 IEC 62196-2
Certifications
TUV CE
More specification of this 16A 480V AC 11KW EV type 2 plug, please contact our sales.
Youtube video Link for this type 2 charger plug
https://www.youtube.com/watch?v=CZVlROXlJSU
