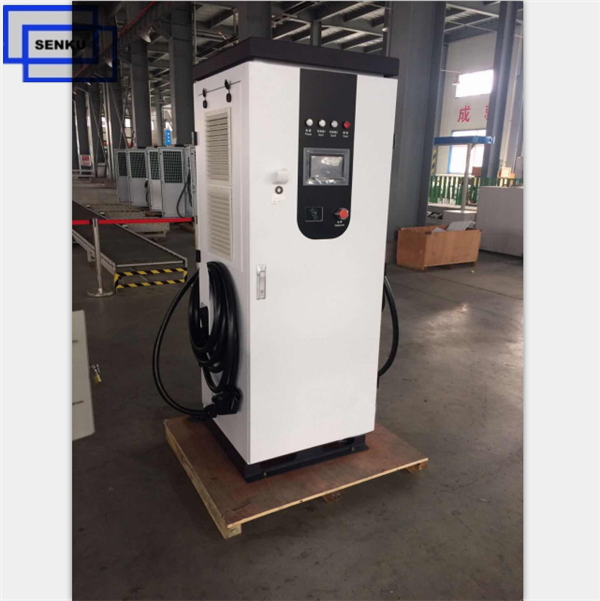

120KW CHAdeMo DC EV Charger

Electric Performance.

Line Voltage

260VAC-530VAC

Frequency

50Hz ±10%

Voltage Type

3 Phase 3P + N + PE

Rated output voltage(V)

150-750VDC (150V-1000V for Option)

Rated output Power

120KW

Output current (A)

0 -200A

Efficiency

≥94%

Connection standard

CHAdeMo

Cable Length

4m （Standard）; Or Customized

Charging Plug Quantity

1 or 2

Power factor (full load)

≥0.99

Payment Method

RFID Card / APP / Credit Card （Option）

HMI

Glare-free 7-inch touch screen,Display of the charging process

Protection

IP67

Communication Protocol

OCPP 1.6

Easy to connected to customer back-end, to achieve remote control and mangement

Communication btw Charger&Vehicle

PLC

Communication btw Charger& Back-end

Ethernet (Standard); 3G/4G/WIFI for option

Standards

IEC 62196, SAEJ1772, EN/IEC61851-1, EN/IEC 61851-22, EN/IEC 61851-6-3, EN/IEC 61851-23, EN/IEC 61851-24, EN/IEC 61000-6-2, EN/IEC 61000-6-4

Storage temperature

-40 ºC to +70 ºC

Ambient temperature

-20~55℃ ; 55℃ ~ 70℃ Derating output

Humidity

5 ~ 95% no frost

Altitude

≤2000m Full load output

Noise

≤65dBA

Conformity and safety

TUV CE (EV Charging Rectifier)

Protection

Over-Voltage protection ; Over-Current protection; Under-Voltage protection ;  Under-Current protection; Short Current protection; Over-Load protection; Earthing, lightning protection; Power outage protection; Full automatic stop protection
