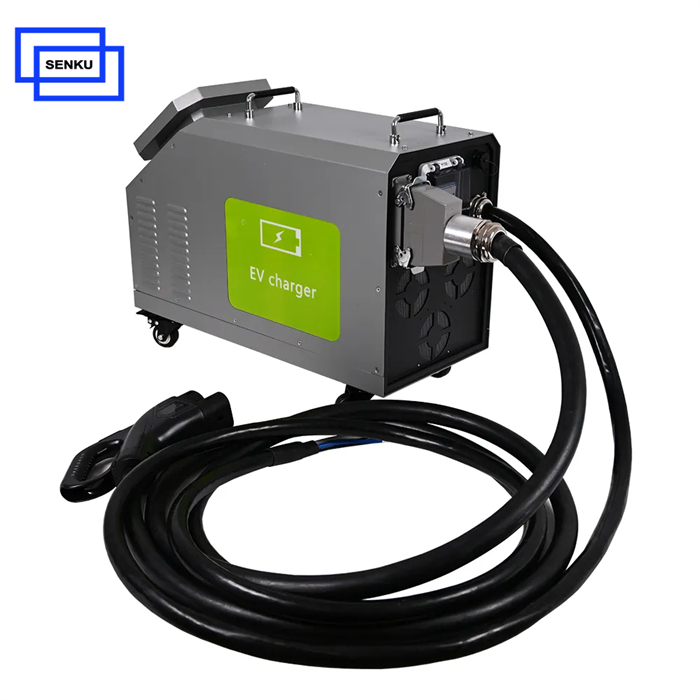

Product Features

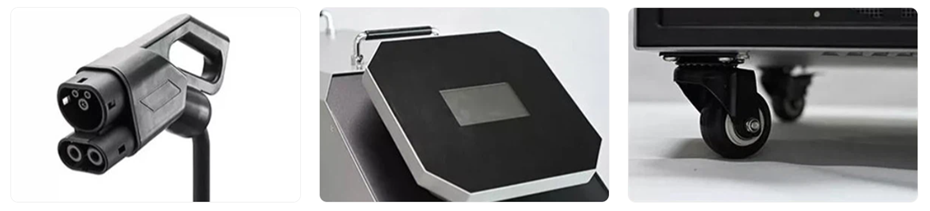

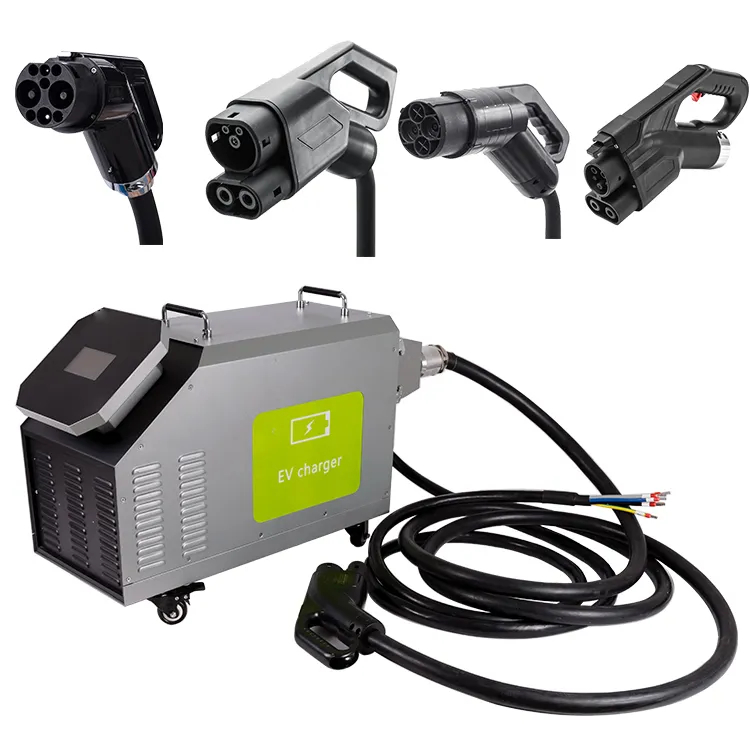

> Output Charging Connector Options: Choose from CCS1, CCS2, CHAdeMO, GBT, or NACS connectors. The standard cable length is 5 meters, but it can be customized to longer or shorter lengths based on user requirements.
> 4.3-Inch Color Touchscreen: The interactive display allows you to configure charging parameters and view live data, such as current, voltage, charging duration, and energy delivered (kWh).

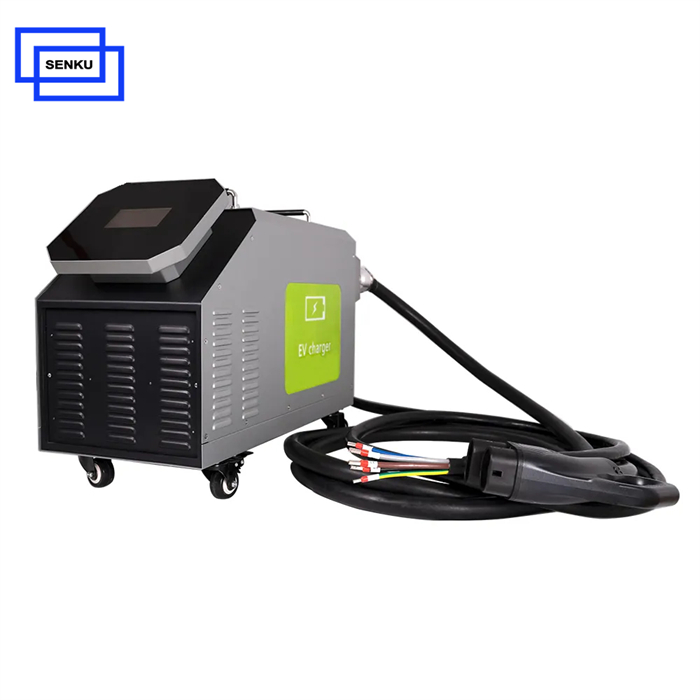

> Movable Design with Lockable Wheels: Equipped with wheels for effortless movement, the station also features a locking mechanism to secure it in place during operation.

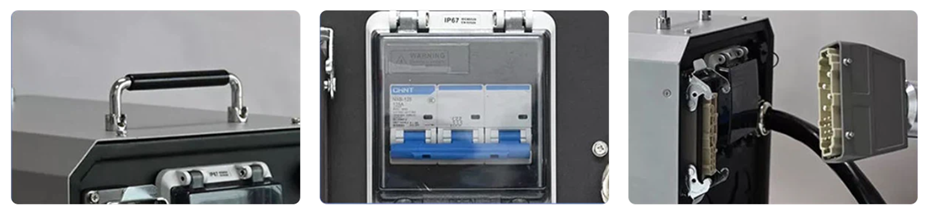

> Ergonomic Handles: Each unit comes with two anti-slip silicone-coated handles for secure grip and easy transportation.> Ergonomic Handles: Each unit comes with two anti-slip silicone-coated handles for secure grip and easy transportation.
> Durable Power Switch: The industrial-grade power switch ensures reliable on/off operation, boasting compatibility and a long service life.

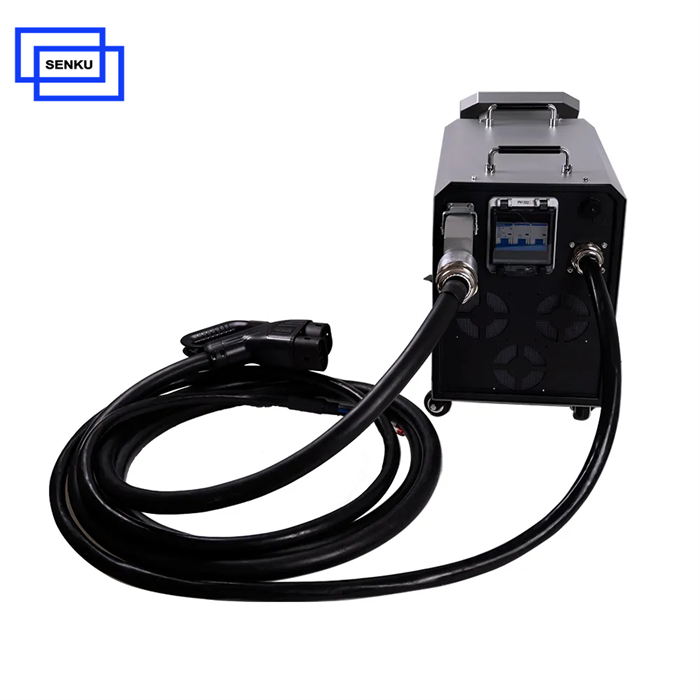

>  Interchangeable Charging Cable Design: The station supports multiple standards by simply swapping cables. For example, a CHAdeMO-compatible station can be converted to GBT by replacing the charging cable.

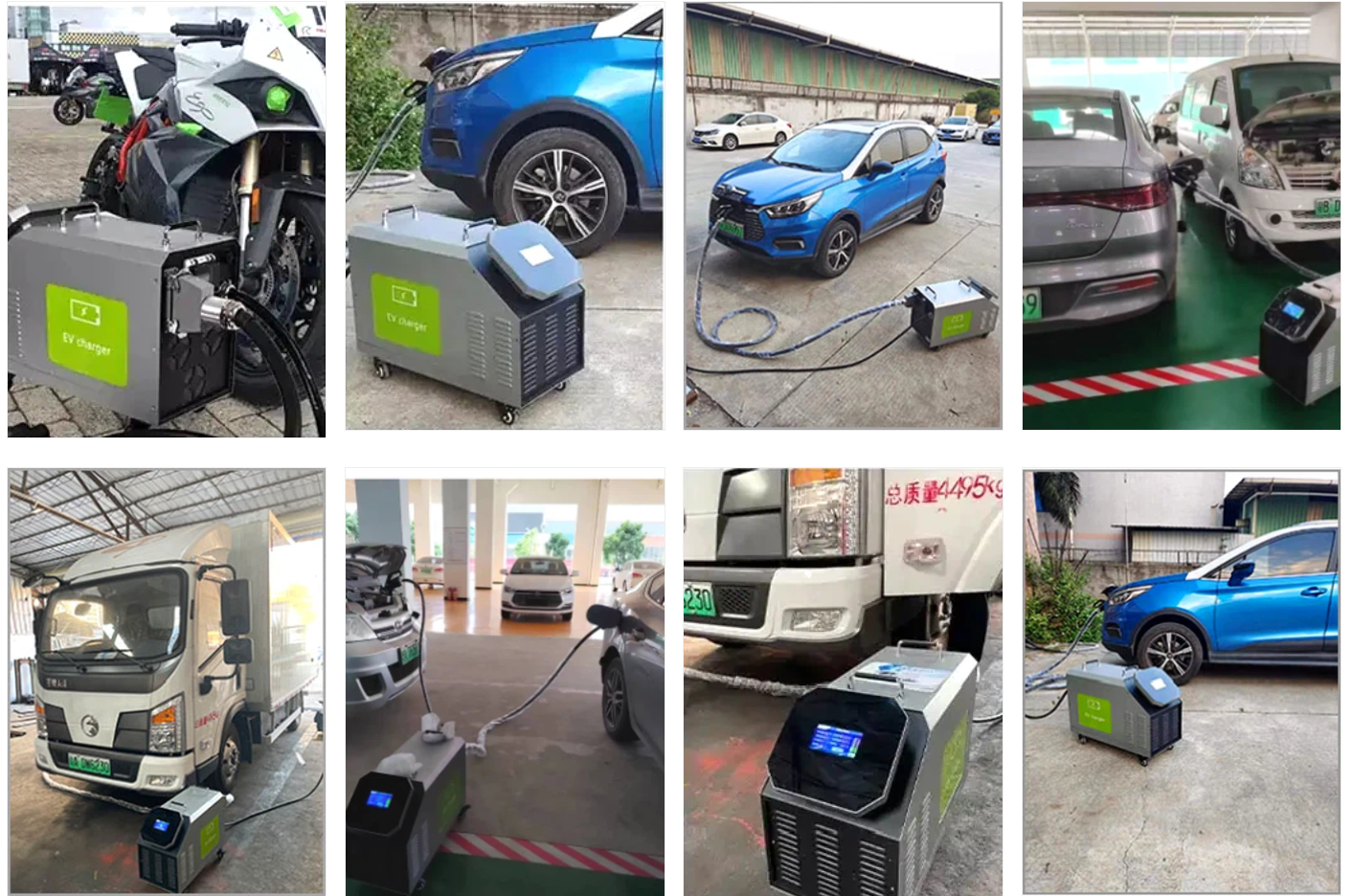

Product Applications
This portable charger offers the convenience of rapid DC charging wherever you are. Its compact design eliminates the limitations of stationary stations, enabling faster, more efficient charging on the go.
Ideal for use at home, in businesses, or on the road.
Suitable for mounting in garages, RV parks, racing tracks, or even tow trucks.
Lightweight and versatile for use in SUVs, trailers, or any mobile setting requiring a reliable power source.

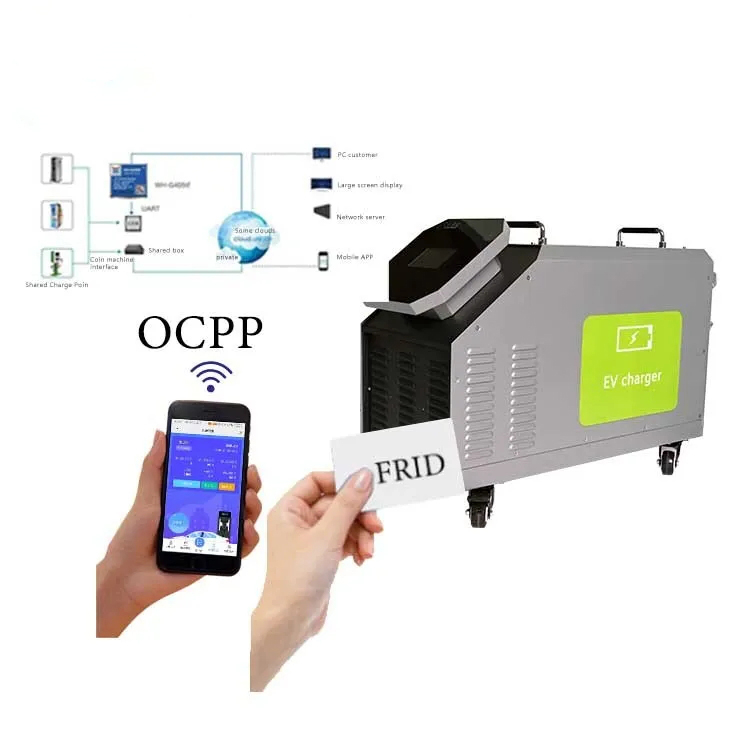

Charging Modes
The 7kW, 20kW, 30kW, and 40kW Portable DC EV Chargers support versatile charging options to suit different users:
>> Plug and Charge: Automatic charging upon connection.
>> RFID Card Access: Authorize charging with a swipe card.
>> Scheduled Charging: Set a start time to optimize usage.
>> Password Protection: Charge access controlled via password.
>> QR Code Charging: Enable charging by scanning a code.

Input Power Cable Specifications

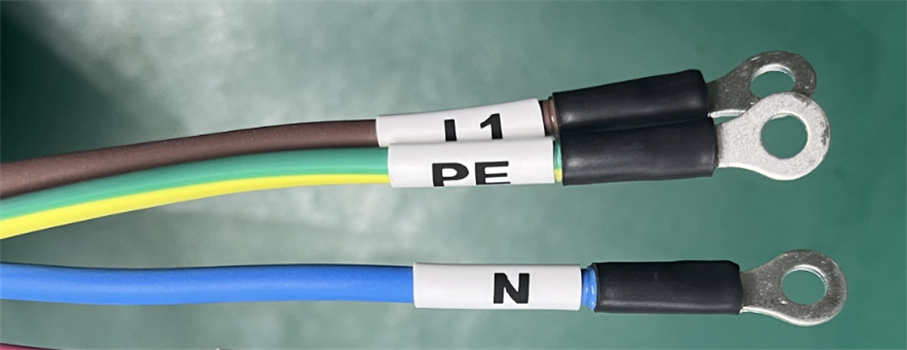

>> Single-Phase Input (7kW, 14kW, 21kW):L1, N, PE

7kW: Cable size 3 × 6 mm²; Input current 32A MAX; Voltage 220V AC.
14kW: Cable size 3 × 16 mm²; Input current 64A MAX; Voltage 220V AC.
21kW: Cable size 3 × 25 mm²; Input current 96A MAX; Voltage 220V AC.

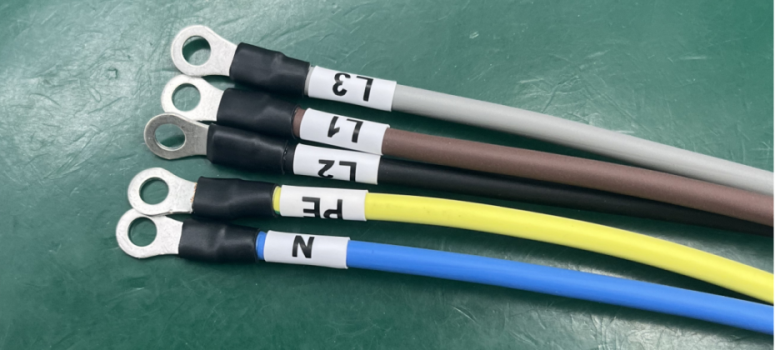

>> Three-Phase Input (15kW, 20kW, 30kW, 40kW): L1, L2, L3, N, PE
15kW: Cable size 5 × 6 mm²; Input current 30A MAX; Voltage 380V AC.
20kW: Cable size 5 × 6 mm²; Input current 38A MAX; Voltage 380V AC.
30kW: Cable size 3 × 10 mm² + 2 × 6 mm²; Input current 45A MAX; Voltage 380V AC.
40kW: Cable size 3 × 16 mm² + 2 × 6 mm²; Input current 64A MAX; Voltage 380V AC.

Packaging and Shipping
Each charger is securely packed in a wooden case to safeguard against compression and impact during transit and storage. The robust construction of wooden boxes ensures maximum protection from physical stress and vibrations.Shipping options include:
* Express delivery
* Airfreight
* Sea freight
* Road or rail transportation
