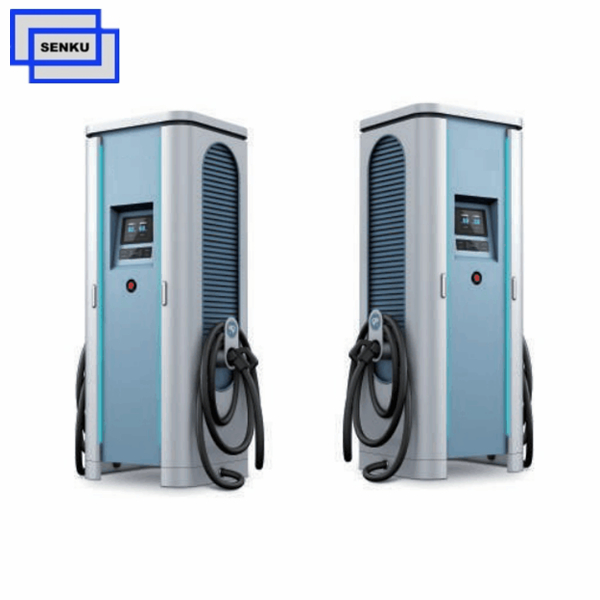

60KW CCS2 DC EV Charger
- Rated Voltage: 260V-530VAC
- Rated output voltage(V): 150-500V
- Output Power: 60kW
- Output Current(A): 0~140A
- Product description: 1-The best ev charging station support the newest OCPP1.6 protocol.Easy connected to customer back-end and APP, realize remote control,charging,management. 2-The best ev charging station has 50~500V
Product introduction
1- The 60KW best ev charging station, meet the European charging standards for new energy vehicles.
2- HMI : With 7''LCD touch screen for user interaction and advertising display.
3- With 2 charging guns, intelligent charging two electric vehicles at the same time.
4- The 60kw best ev charging station accept Custom paint ans branding.
5- Perfect waterproof and dustproof design to meet the various indoor and outdoor installastion environment. Ensures the dc EV Charger is able to maintain stable operation inharsh enviroment, such as high tor low emperature, heavy rain and high humidity...
6-Applicable for public charging stations, company charging place, expressway service areas, hospital and other places.
Charging Guns: 1/2 Option
OCPP: Support OCPP 1.6
Key Parameters
Electric Performance.
Line Voltage
AC 260V-530V
Frequency
50Hz / 60Hz
Voltage Type
3 Phase
Rated output voltage(V)
150-550VDC (Continuously adjustable) ; (150V-750V/ 150V-1000V for option)
Rated output Power
60KW
Output current (A)
0 -140A
Efficiency
≥94%
Plug Type
Combo - 2 (CCS2)
Charging Plug Quantity
1or 2 for option
Power factor (full load)
≥0.99
Payment method
RFIC Card / APP / Credit Card (for option)
HMI
Glare-free 7-inch touch screen,Display of the charging process
IP Level
IP54
Payment Method
RFID Card / APP / Credit Card (for option)
Communication Protocol
OCPP 1.6
Communication btw Charger&Vehicle
PLC
Communication btw Charger&Charger
Ethernet (Standard); 3G/4G/WIFI (for Option)
Standards
IEC 62196, EN/IEC61851-1, EN/IEC 61851-22, EN/IEC 61851-6-3, EN/IEC 61851-23, EN/IEC 61851-24, EN/IEC 61000-6-2, EN/IEC 61000-6-4
Storage temperature
-40 ºC to +70 ºC
Ambient temperature
-20~55℃ ; 55℃ ~ 70℃ Derating output
Humidity
5 ~ 95% no frost
Altitude
≤2000m Full load output
Noise
≤65dBA
Conformity and safety
TUV CE
Protection
Over-Voltage protection ; Over-Current protection; Under-Voltage protection ; Under-Current protection; Short Current protection; Over- Load protection; Earthing, lightning protection; Power outage protection; Full automatic stop protection
Note：
Any requirement please contact us to talk about the details.
