AC Slow / AC Fast: Type 2
DC Rapid: CCS2
Connector location: Left Side - Front
Type2 - Max AC 1-phase rate: 7.4kW
Type2 - Max AC 3-phase rate: 11kW
CCS2 - Max DC rate: 155kW

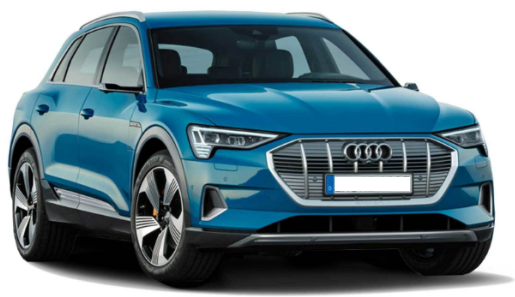

The audi e-tron SUV was launched in 2019, and all e-tron buyers will receive 1,000 kilowatt-hours of free energy from audi and U.S. electrification. Electrification USA has pledged to build or complete 500 fast charging facilities nationwide by July 2019, 160 of which will be in California. The e-tron is ac-dc compatible through the universal SAE J1772 and the combined charging system (CCS) standard. In some high-speed public charging stations, dc rapid charging can reach 150 kw; The feature can provide up to 80 percent power in about 30 minutes.
Vehicle Basic Data
Vehicle Type
Battery Electric
Electric Range
365 km
Efficiency
237Wh /km (estimate)
Battery size
95 KWh
Battery Type
Lithium-ion
Pack Configuration
108s4p
Nominal Voltage
400 V
Charging time for a Audi e-tron 55 quattro (2019)
|
AC Slow Charging |
Typically Charging Place |
Charging time (0%- 100%) |
Range/hour |
|
Wall Plug (2.3KW) |
Home |
44 hours |
8 km/h |
|
1-Phase 16A (3.5KW) |
Home |
28 hours |
13 km/h |
|
1-Phase 32A (7.4KW) |
Home / Public |
13 hours |
27 km/h |
|
AC Fast Charging |
Typically Charging Place |
Charging time (0%- 100%) |
Range/hour |
|
3-Phase 16A (11KW) |
Home / Public |
9 hours |
39 km/h |
|
3-Phase 32A (22KW) |
Home / Public |
9 hours |
39 km/h |
|
DC Rapid Charging |
Typically Charging Place |
Charging time (10%-80%) |
Range/hour |
|
50KW (CCS2 DC) |
Public |
80 min |
200 km/h |
|
150KW (CCS2 DC) |
Public |
30 min |
590 km/h |
|
350KW (CCS2 DC) |
Public |
30 min |
590 km/h |
*Based on Senku Machinery estimates, charging rates can differ based on the different brand charger, the ambient temperature, the state of the battery and variation in charging rate.
*Range per hour is the number of kilometers that you can expect to get from an hour of charging at the relevant rate.
Where you can charge a udi e-tron 55 quattro (2019)
|
Place |
Charging Method |
Solutions |
|
Home |
The most convenient way to charge your EV. Charging at night and start each morning with full battery |
|
|
Public Charging station Network |
When you are out, you can find the locations including street, supermarkets and public car parks to recharge your EV |
|
